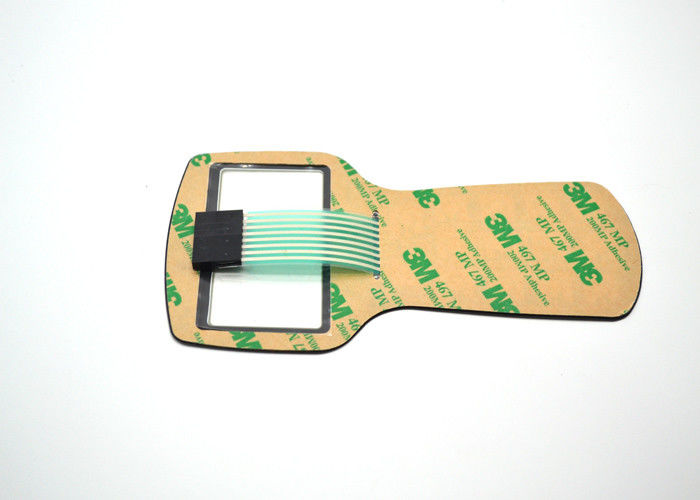

Waterproof Metal Dome Membrane Switch for Hand Controller on Robot

Waterproof Metal Dome Membrane Switch for Hand Controller on Robot

    • Waterproof Metal Dome Membrane Switch for Hand Controller on Robot
    • Waterproof Metal Dome Membrane Switch for Hand Controller on Robot
  • Waterproof Metal Dome Membrane Switch for Hand Controller on Robot

    Product Details:

    Place of Origin: Jiangsu (China mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: ISO9001,2000
    Model Number: ZS-28

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags(inner),carton boxes(outer) or due to customer requirement
    Delivery Time: within one week after payment
    Payment Terms: 30% deposit, the 70% balance after shipment
    Supply Ability: 50000pieces per week
    Contact Now
    Detailed Product Description
    Material: Polyester, Polycarbonate Keypad Butto: Metal
    Size: 145mm*70mm Real Adhesive: 3M467MP
    Applicattion: Hand Controller Circuit: 2mm Citcuit
    Color: Pantone Or RAL Code
    High Light:

    push button membrane switch

    ,

    key membrane switch

    Hand Controller on Robot / ZS-29 / embossed tactile with metal dome switch / with a



    display window






    1.Electrical Properties



    Electrical Level:

    35V(DC), 100mA,1W

    Contact Resistance:

    10Ω~500 Ω

    Insulation Resistance:

    100MΩ/100V

    Dielectrics Voltage-resistance:

    250VRms(50~60Hz 1min)

    Chattering Time:

    ≤ 5ms

    Life Time:

    Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

    Tail Folding:

    R>1,180

    2.Mechanical Properties



    Operating Force:

    Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz)

    Switch Stroke:

    Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm

    3.Environmental and Storage    Conditions



    Operation Temperature:

    -40°C ~ +80°C

    Storage Temperature:

    -40°C ~ +70°C

    Humidity:

    40°C, 90%~95%, 240 hours









    Waterproof Metal Dome Membrane Switch for Hand Controller on RobotWaterproof Metal Dome Membrane Switch for Hand Controller on RobotOur Service:




    Free samples are available.



    Your inquiry will be replied within 24 hours.


    Well-trained & experienced staff are to answer all your inquiries in English of course.



    Our products are exported to Europe, North America, South America, Africa, many countries



    in Asia etc.



    Good after-sale service offered, please get back if you get question.



    100% product inspection


    Small orders are acceptable.
