Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification

Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification

    • Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification
    • Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification
    • Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification
  • Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification

    Product Details:

    Place of Origin: Jiangsu (China mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: ISO9001,2000
    Model Number: ZS-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer customer
    Delivery Time: within one week after payment
    Payment Terms: 30% deposit, 70% balance after shipment
    Supply Ability: 50000pieces per week
    Contact Now
    Detailed Product Description
    Feature: Long Service Life Certification: ISO9001
    Type: Meet Customer's Demand Product Name: Embossing Keys Tactile
    Size: 55mm*68mm Export To: America
    High Light:

    membrane touch switch

    ,

    tactile membrane keyboard

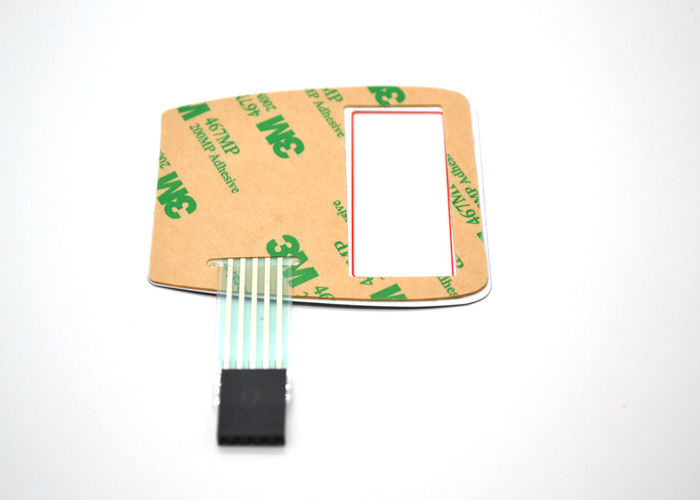

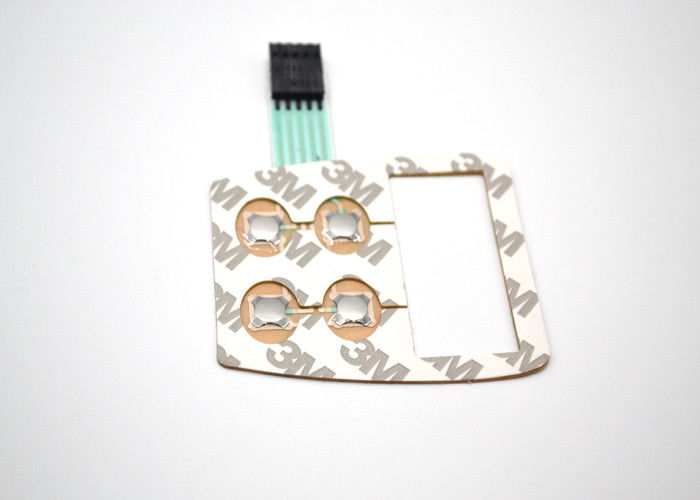

    Embossing keys tactile membrane switch with overlayer / ZS-31 / With 4



    metal dome and 3M55230,3M467





    Product features:




    1.Light weight


    2.small volume


    3.long service life


    4.Dampproof, dustproof


    5.durable, seismic, lead wire resistance around thefracture well


    6.Vacuum molding touch type key, switching type connector, set LED as a whole, convenient



       installation.



    Electronic Characteristic



    <35V ( DC ) <100mA 1W





    Contact Resistance



    10Ω--500Ω (According the trace length and materials to confirm)



    Insulating Impedance



    >100MΩ 250V DC



    Resistance of the wire



    <1 Ω/cm width 1.27mm



    Operation Force



    flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)



    Life Expectancy



    flat type ≥ 500 million times, tactile type: ≥ 100 million times



    Operation Temperature



    -40 °c ~ + 80 °c



    Stock Temperature



    -40 °c ~ + 85 °c



    Humidity



    + 40 °c 90 % ~ 95% 240 hour



    Switch stroke



    flat type 0.1-0.5mm, tactile type 0.6-1.5mm






    Membrane Switch Advantages:




    1. Beautiful appearance ,rich and bright in color.


    2. Small size ,light weight ,good tactility.


    3. Tightness is good ,moisture -proof ,dust -proof ,waterproof ,anti -corrosion and erosion of



       harmful gases proof.


    4. Low cost ,high lifespan.


    5. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested.


    6. Customized specification is available and keys can make different shapes.





    Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification 0Embossing Keys Membrane Touch Switch With 4 Metal Dome ISO9001 Certification 1
