Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm

Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm

    • Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm
    • Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm
    • Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm
  • Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Zhongshan membrane switch
    Certification: RoHS,ISO9001:2000
    Model Number: ZS-32

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer requirement
    Delivery Time: within 7 days after payment
    Payment Terms: 30% deposit, 70% balance after shipment
    Supply Ability: 50000pieces per week
    Contact Now
    Detailed Product Description
    Electronic Characteristic: <35V ( DC ) <100mA 1W Nsulating Impedance: >100MΩ 250V DC
    Stock Temperature: -40 °c ~ + 85 °c Resistance Of The Wire: <1 Ω/cm Width 1.27mm
    Size: 175mm*45mm Color: Blue Gray Green

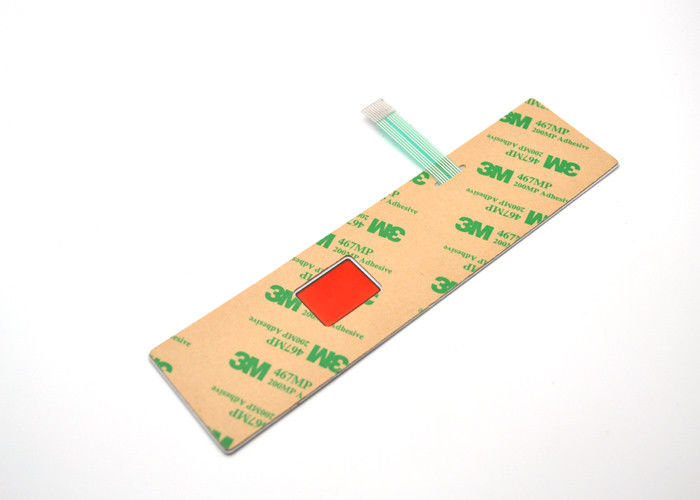

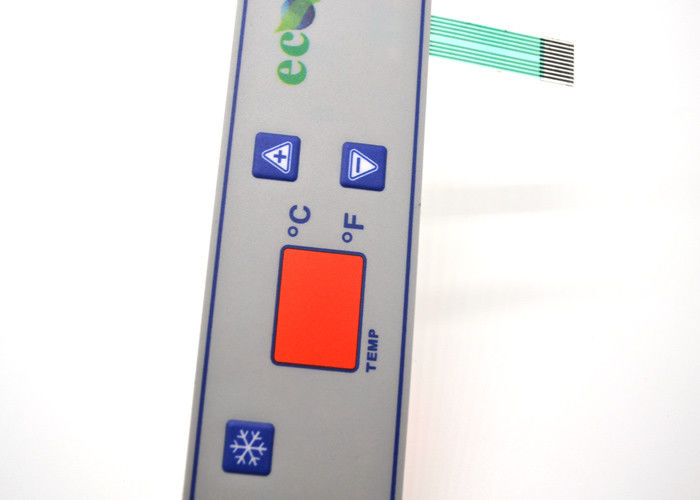

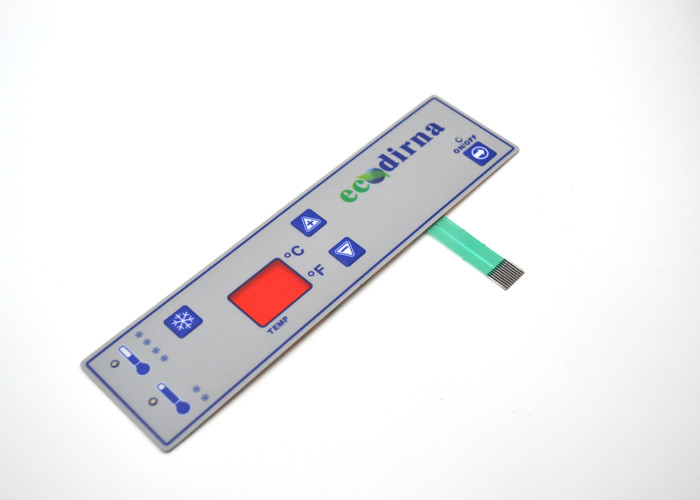

    With a red transparency window / embossed tactile metal dome



    membrane switch / ZS-32 175mm*45mm





    The main properties of Custom Electronic Membrane Switch



    1. PC /PET as overlay (control panel)


    2. Flat keys or tactile type


    3. Embossed button with good tactile feel


    4. Pre-assemble with or without metal domes


    5. Water-resistant, dust-proof, gas-proof and scratch-resistant ,UV resistant


    6. Long life cycle.



    Plastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mmPlastic Embossed Metal Dome Membrane Touch Switch Keypad 175mmx45mm


    Electronic Characteristic

    <35V ( DC ) <100mA 1W

    Life Expectancy

    flat type ≥ 500 million times, tactile type: ≥ 100 million times

    Contact Resistance

    10Ω--500Ω (According the trace length and materials to confirm)

    Operation Temperature
    -40 °c ~ + 80 °c

    Insulating Impedance


    >100MΩ 250V DC

    Stock Temperature
    -40 °c ~ + 85 °c
    Resistance of the wire
    <1 Ω/cm width 1.27mm
    Humidity

    + 40 °c 90 % ~ 95% 240 hour

    Operation Force



    flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)

    Switch stroke
    flat type 0.1-0.5mm, tactile type 0.6-1.5mm
