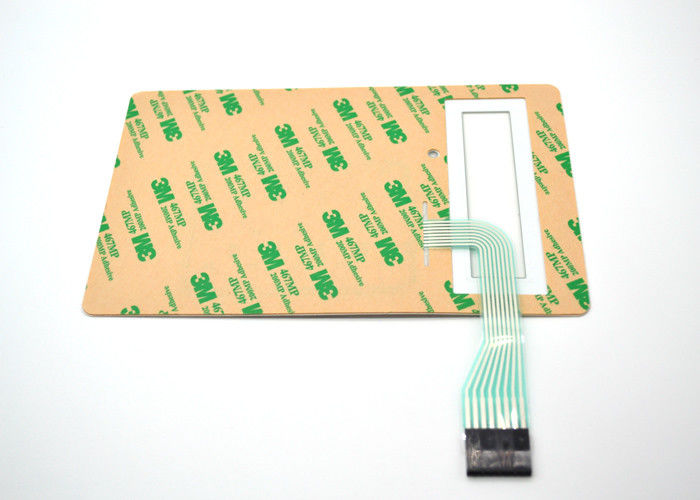

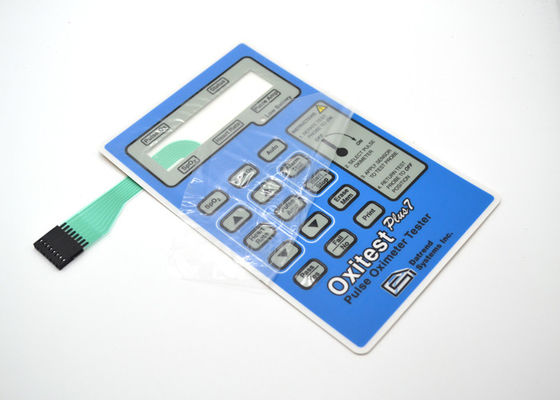

Glossy / Matte Surface Metal Dome Membrane Switch For Medical Instrument System

Glossy / Matte Surface Metal Dome Membrane Switch For Medical Instrument System

    • Glossy / Matte Surface  Metal Dome Membrane Switch For Medical Instrument System
    • Glossy / Matte Surface  Metal Dome Membrane Switch For Medical Instrument System
  • Glossy / Matte Surface  Metal Dome Membrane Switch For Medical Instrument System

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: RoHS,ISO9001:2000
    Model Number: ZS-33

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer requirement
    Delivery Time: within 7 days after payment
    Payment Terms: 30% deposit, 70% balance after shipment
    Supply Ability: 50000pieces per week
    Contact Now
    Detailed Product Description
    Brand Name: Zhongshan Keypad Button: PET/PC/PMMA/PVC
    Surface Finish: Glossy Or Matte Operating Power: ≤1W
    Rated Voltage: ≤50V DC Working Current: ≤ 100mA
    High Light:

    push button membrane switch

    ,

    key membrane switch

    Export to Canada / ZS-33 / Application on medical instrument system /



    with metal dome and a display window





    Basic Properties





    Electrical Properties:
    Rated Voltage



    ≤50V DC





    Rated Current



    ≤ 100mA



    Operating Power



    ≤1W



    Insulation Resistance



    ≥100MΩ (250V DC)



    Loop Resistance



    10Ω~2kΩ (based on the design)



    Contact Resistance



    0.5 ~ 5Ω



    Wire Lead Resistance



    <1Ω/cm



    Base Material Voltage Withstand



    1500V DC



    Mechanical Properties:





    Life Expectancy



    Flat type ≥ 5 million times, Tactile type ≥ 1 million times



    Operation Force



    Flat Type 57-284g ,Tactile Type 170-397g



    Dome Rebound Time



    ≤6ms



    Tail Bending Performance



    ≤180°



    Switch Stroke



    Flat 0.1~0.5mm,Tactile 0.6~1.5mm



    Vibration



    20G's max.



    Thickness



    0.7~1.5 mm



    Environmental Properties:





    Operation Temperature



    -40°C to +80°C (-40°to 176°F)



    Storage Temperature



    -40°C to +85°C (-40°to 185°F)



    Atmospheric Pressure



    86 ~ 106 kPa



    Humidity



    +40°C, 90%~95%RH for 240 Hours





    The Structure and Working Principle of Membrane Switch.



    Glossy / Matte Surface  Metal Dome Membrane Switch For Medical Instrument System 0

    Glossy / Matte Surface  Metal Dome Membrane Switch For Medical Instrument System 1
