Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components

Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components

    • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
    • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
    • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
    • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
    • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
  • Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components

    Product Details:

    Place of Origin: Jiangsu (China mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: ROHSISO9001,2000
    Model Number: ZS-46

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirement
    Delivery Time: within one week after receiving payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
    Supply Ability: 50000pieces
    Contact Now
    Detailed Product Description
    Connector Tail: Solder Pins Diemension: 85mm*75mm
    Real Adhesive: 3M467 Voltage Rating: 2~24V
    Active Force: 0.3~3N Temperature: -40~+70

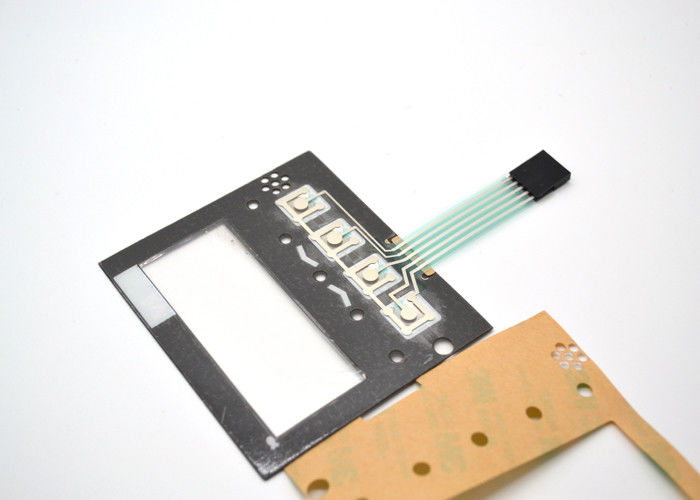

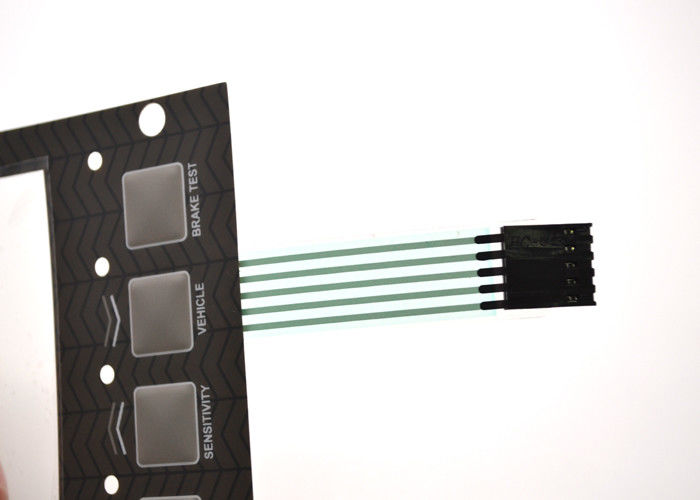

    With 4 metal dome tactile Membrane switch / ZS-46 / Application for



    brake and design several LED window.





    This product is embossed tactile membrane switch, it is used on Electronic Components &



    Supplies.There are 2 colors on the screen printing and with a matte surface.





    Features





    1. Thickness: 0.05-0.3mm



    2. LED windows: Transparent, translucent, matte, gloss



    3. Tail: Tail with clear mask or green mask



    4. Embossed keys: No embossed keys and domes, domes without embossed keys, embossed



        keys without domes, embossed keys and domes

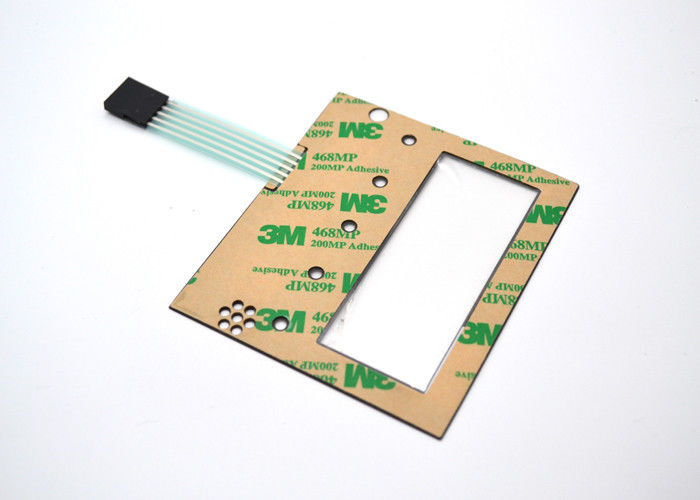

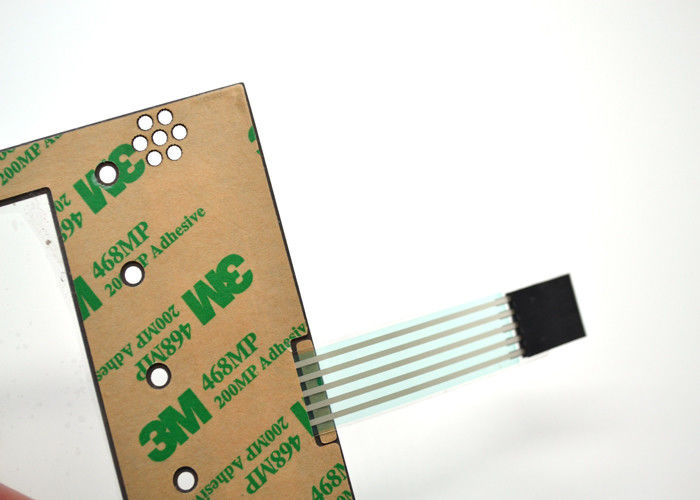

    5. Adhesive: 3M467, 3M468, and no adhesive



    6. Matching color: Pantone and RAL color matching system.



    7. Overlay materials: The most commonly used base materials are polyester (PET) and



        polycarbonate (PC).





    Performance





    A. Electric Parameter


        resistance: <1Ω/cm


        contact current: 25~100mA


        voltage rating: 2~24V


        voltage insulation:1500V


        voltage endurance:250V(60Hz/min)


        insulation resistance:500VDC500MΩ


    B. Physical Parameter


        active force: 0.3~3N


        lifecycle : >1mil.(non-tactile)


        hand speed: ≤5ms


        temperature: -40~+70


        humidity : 40°C,48h Less 95%


        work altitude:0-4500M

    Waterproof 4 Metal Dome Tactile Membrane Keyboard For Electronic Components
