Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch

Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch

    • Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch
    • Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch
  • Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch

    Product Details:

    Place of Origin: Jiangsu (China mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: ROHS ISO9001,2000
    Model Number: ZS-51

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Plastic bags with carton boxes or due to customer detail requirement
    Delivery Time: within one week after receiving payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Circuit: 1.54mm+2.54mm Real Adhesive: 3M467
    Surface: Metal Dome Tactile Applicaton: Printing Machine
    Thickness: 0.3mm Size: 115mm*60mm

    Two kind circuit connector / ZS-50 / Embossed tactile metal dome



    membrane switch / black top overlay





    Product Descriptiion

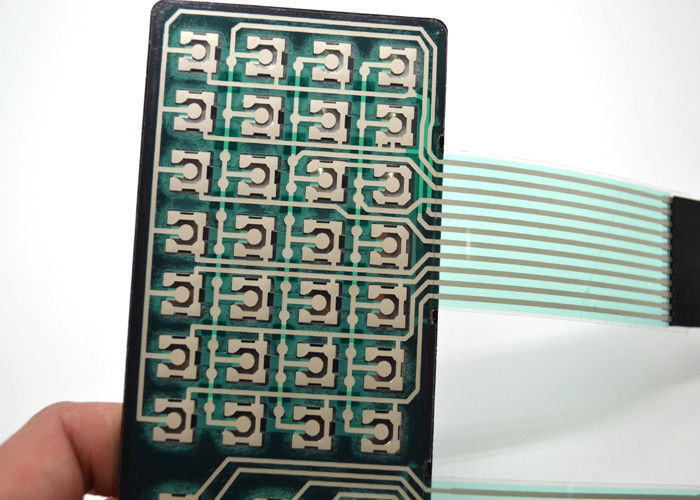

    This is a metal dome tactile membrane switch, with two kind circuit 1.54mm and



    2.54mm. Usually, it is used on Printing Machine export to Americal.On the



    surface, there are black and white colours.the back real adhesive is 3M467.lets



    see the following pirctures for detail:



    Embossed Tactile Membrane Switch Keyboard , Metal Dome Membrane SwitchEmbossed Tactile Membrane Switch Keyboard , Metal Dome Membrane SwitchEmbossed Tactile Membrane Switch Keyboard , Metal Dome Membrane Switch







    Electronic characteristics





    Circuit rating



    35V(DC),100mA,1 W



    Contact resistance





    10Ω - 500Ω(According the trace length and materials to confirm)





    Insulation resistance



    >100MΩ 250V(DC)



    Contact bounce



    ≤5ms



    Dielectric withstand



    250VRms(50 - 60Hz/1 min)



    Life expectancy





    flat type≥5million times, tactile type:≥1 million times



    Mechanical Properties





    Operating pressure





    flat type 57-284g (2-10 Oz),tactile type



    170-397g (6-14 Oz)



    Switch stroke





    flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm



    Environmental parameters





    Operating Temperature



    -20°C - +80°C



    Storage temperature



    -40°C - +85°C



    Humidity



    40°C,90%-95%,240 hours



    Our Best Service:brane switch with Metal dome



    (1). Custom design expertise



    (2). Single source manufacturing



    (3). Assembly of surface mount components/circuit boards/backplates



    (4). Multi-tasking switch pattern designs



    (5). Custom molded boxes, bezels and frames with switch installation



    (6). Precise color matching and repeatability



    (7). Water resistant designs



    (8). Fiber optic back-lighting



    (9). 100% function testing of all circuits in-house





    Packing and delivery
