PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier

we are very satisfied with your quality and the delivery time is always very fast , we hope to do bigger and bigger business with your company about membrane switch .

—— Josh

Having done business with u for over 2 years,the great service and high quality products impressed me a lot,thanks for everything!

—— Stephen

I'm Online Chat Now

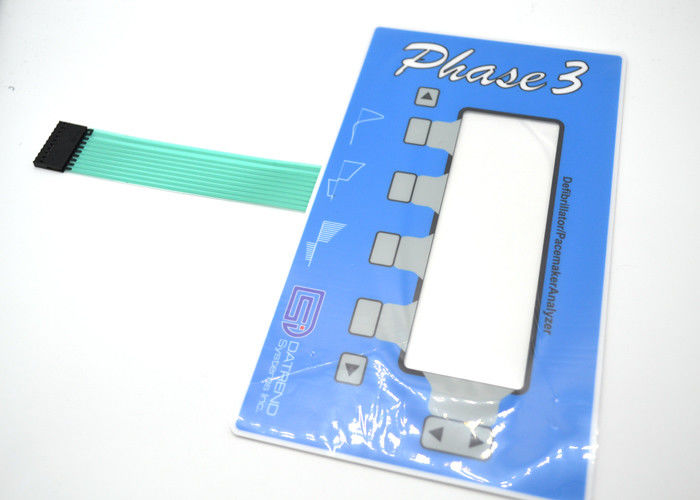

PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier

China PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier supplier
PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier supplier PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier supplier PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier supplier PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier supplier

Large Image :  PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier

Product Details:

Place of Origin: Jiangsu (China mainland)
Brand Name: Zhongshan
Certification: ROHSISO 9001,2000
Model Number: ZS-60

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving payment
Payment Terms: 30% deposit the 70% balance after shipment or full payment after air transportation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Place Of Original: Jiangsu (China Mainland) Material: PET
Color: Blue White Grey Brand Name: Zhongshan

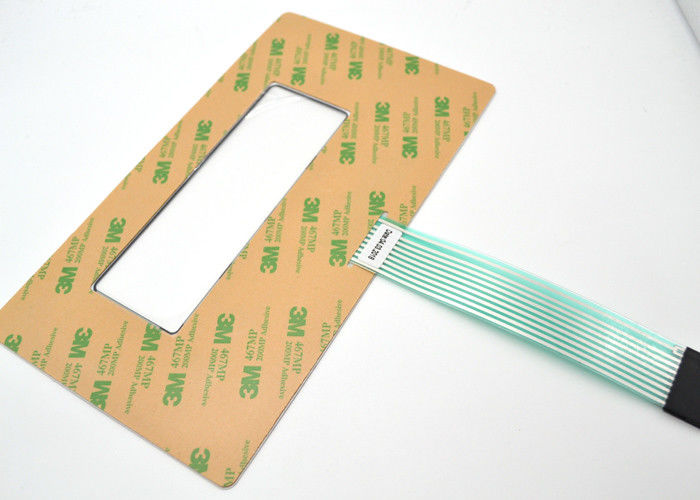

Size: 210mm*120mm Real Adhesive: 3M467

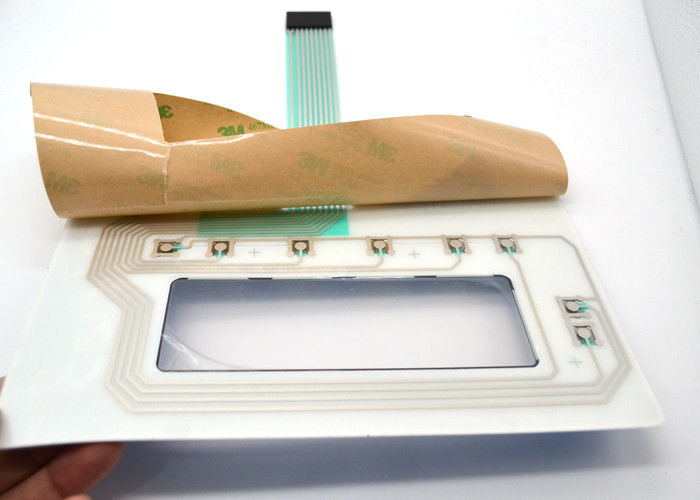

With only one clear window / ZS-51 / flat metal dome membrane switch



/a protection layer on the surface





What are Standard Membrane Switches ?





The easiest way to understand what a membrane switch is, is to reference an all-time favorite



device-the microwave. The membrane switch on the microwave is the buttons—the human



interface layer—that communicates to the microwave that you’d like to reheat your food for



one minute.





Technical Specification



Environmental Operating Temperature -20° to 65° C (-4° to 149° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Seals 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.

Special sealing options are available for wet environments.



Mechanical Travel .007 inches to .015 inches
Operating Force 4oz to 8oz
Electrical Operating Voltage 30 volts maximum
Operating Current 10 microamps to 100 milliamps, resistive
Closed Circuit Resistance 100 ohms typical, dependent on size and layout
Open Circuit Resistance 10 megohms
Operating Power 1 watt maximum
Circuitry X-Y matrix or one side common









PET Metal Dome Flat Membrane Switch , Waterproof Membrane Keypad Supplier







FAQ



Q: Are you a manufacturer or trading agent?



A: We are a manufacturer and we have a professional overseas sales department to serve our



clients all over the world.



Q: How long have you engaged in membrane switch manufacturing?



A: We have engaged in this field for over 15 years.



Q: Do you have your own desing team?



A: Yes, we have and we can design based on clients requirement or do proof based on clients



original drawing.



Q: What software/format can you use for drawing?



A: Coreldraw, Illustrator, AutoCAD (.cdr , .pdf .dwg)



Q: What's your MOQ for order?



A: Generally speaking, we require 25pcs for MOQ or USD200 for equivalent.



Q: What's the lead time for Proof, Sample and Mass Production?



A: 3 working days for proof, two week for sample, two week for order (or depending on order



QTY)



Packaging & Delivery





packaging details: inside,shockproof package, PE bag



outside,thickened carton, water-proof



delivery details: express,2-4 working days



air freight,5-7 working days



sea freight,25 working days
