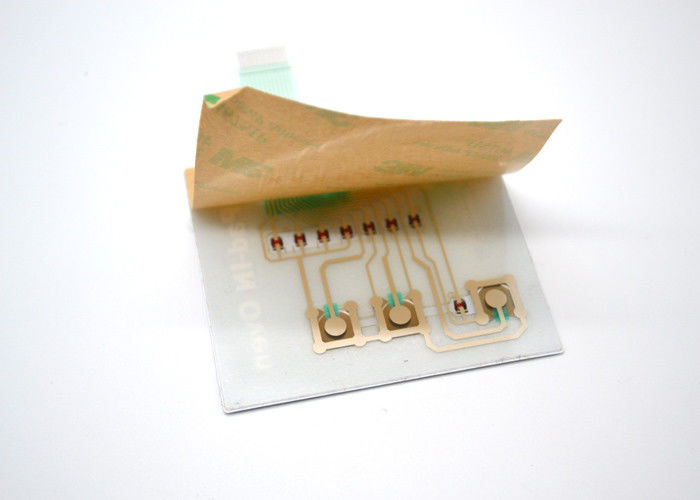

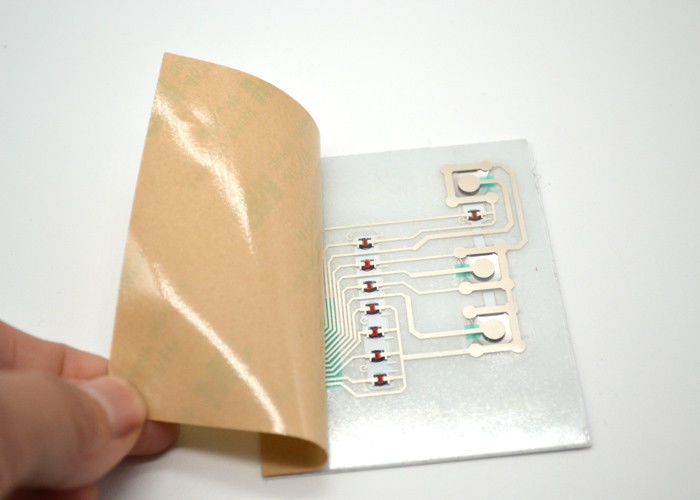

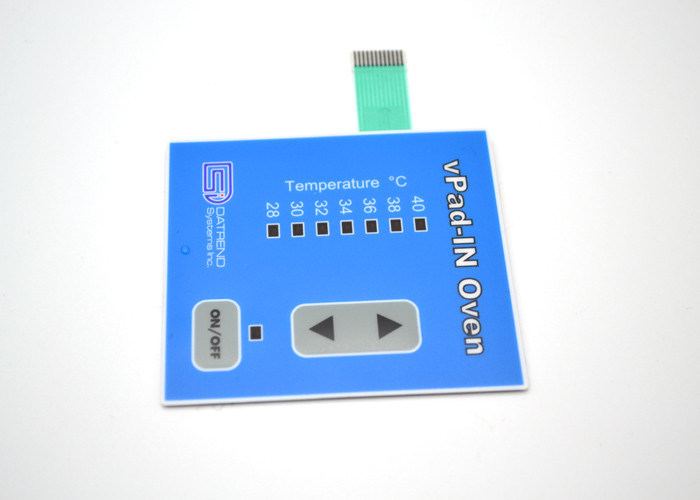

Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window

Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window

  • Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window
  • Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window
  • Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window
  • Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window
Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window
Product Details:
Place of Origin: Jiangsu(China,mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-67
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Name: LED Switch Material: PET

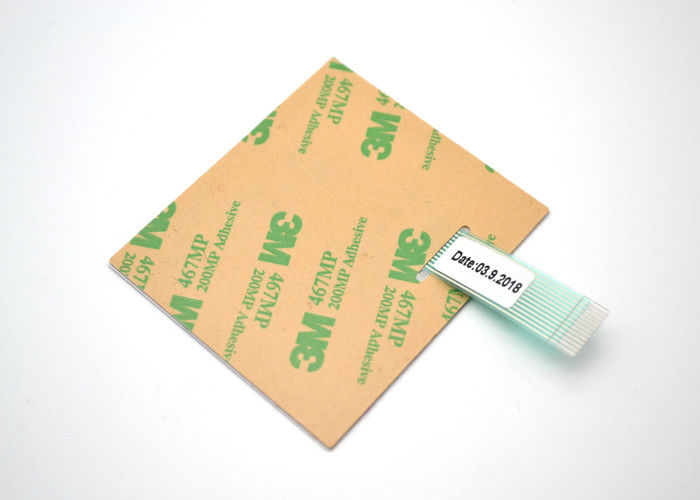

Real Adhesive: 3M467 Surface: Matte
Connector Tail: 1mm Pitch Color: Blue
High Light:

standard membrane keypad

,

backlit membrane switch

Embossed tactile metal dome membrane switch / ZS-67 with LED display



window and customer logo





What Is A Membrane Switch?




Membrane switches are generally made from five different layers. This includes membrane,



graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the



user to control the machine. It can also include a flexible circuit for less expensive



alternatives. Another layer will contain the printed circuit which allows a signal to be



transmitted. The ink that is used for the printing on the circuit is generally made up of a



variety of metals. This helps for the signal to be conductive for turning on and off. Membrane



switches allow for communication to take place in electronic devices. Membrane switches are



a piece of equipment that can be highly sophisticated or rather simple by design.




Membrane Switch Advantages:




1. Beautiful appearance ,rich and bright in color .


2. Small size ,light weight ,good tactility ,


3. Tightness is good ,moisture -proof ,dust -proof ,waterproof ,anti -corrosion and erosion of



armful gases proof .


4. Low cost ,high lifespan .


5. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested .


6. Customized specification is available and keys can make different shapes





Electrical Performances





Wire Resistance



0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



Insulation Resistance



>100MΩ 250V DC Working Voltage <50V DC



Non-tactile Switch



0.1-0.4mm Tactile Switch 0.4-1.0mm



Working Life



Working Life Working Temperature -40℃ ~ 70℃



Working Humidity



40℃,98%RH No influence Substrate Voltage 1500V DC



Feedback Time



10ms Tail Folding R>1,180



Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window 0Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window 1



Company Introduction



Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



Membrane Switch is a professional membrane switch manufacturer in China. Our professional



operation can ensure you of quality products supported by mechanical, electronic and control



automation. Based on our good abilities in technology and production workmanship, our



products are strictly checked by our quality supervision department. For your added



assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced equipment to



manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



Europe, Australia and other areas worldwide.



Embossed Tactile Metal Dome Membrane Switch Keypad With LED Display Window 2
