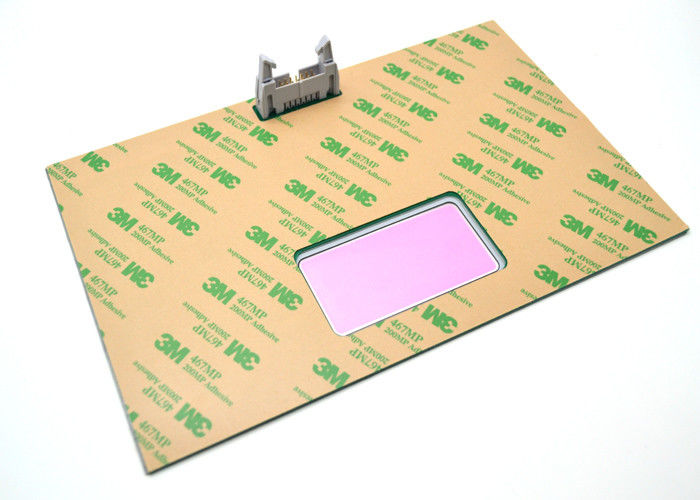

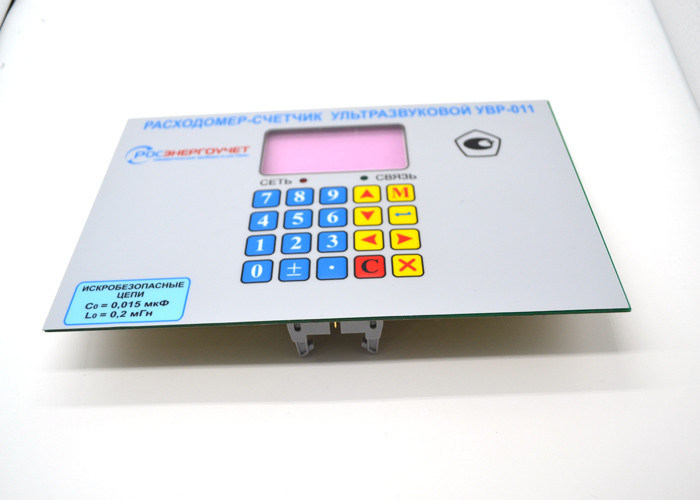

High Sensivity PCB Membrane Switch Keypad With Metal Dome Embossed

High Sensivity PCB Membrane Switch Keypad With Metal Dome Embossed

  • High Sensivity PCB Membrane Switch Keypad With Metal Dome Embossed
  • High Sensivity PCB Membrane Switch Keypad With Metal Dome Embossed
High Sensivity PCB Membrane Switch Keypad With Metal Dome Embossed
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-79
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payments
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Life Expectancy: 1 Million Times Material:: Pet,metal.LED
Color: Pantone Application: Telecommunication Equipment
Current Contact: 2-24V Thickness: 0.3mm
High Light:

pcb membrane keypad

,

pcb tactile switch

Customer needed PCB assembly membrane switch with metal dome / ZS-



79 / printing several colors on the surface overlay





Performance indicators:



1. Electronic characteristics



Circuit rating: 35V (DC), 100mA, 1W



Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)



Insulation resistance:> 100MΩ 250V DC



Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)



Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times





2. Mechanical Properties Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g



(6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm





3. Environmental parameters



Operating Temperature: -40 oC- +80oC , Storage temperature: -40oC - +85oC





PCB Membrane Switch Featurees:



1). Light weight



2). Small volume



3). Long service life



4). Dampproof,dustproof



5). Durable,seismic,lead wire resistance around the fracture well



6). Vacuum molding touch type key,switching type connector,set LED as a whole,convenient



installation





Advantages of PCBA





(1) Beautiful appearance,rich and bright in color



(2) Small size,light weight,good tactility



(3) Tightness is good,moisture-proof,dustproof,waterproof,anti-corrosion and erosion of



harmful gas proof



Low cost,high lifespan



Easy to operate,intuitive,safe and reliable,in-house 100% functionally tested



(4) Customized specification is available and keys can make different shapes
