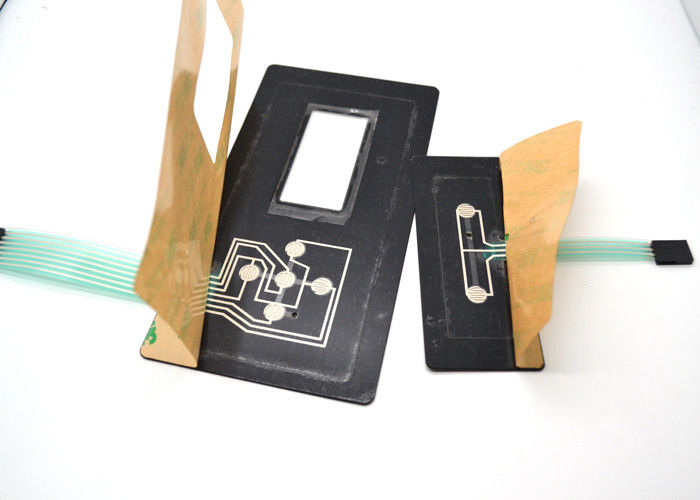

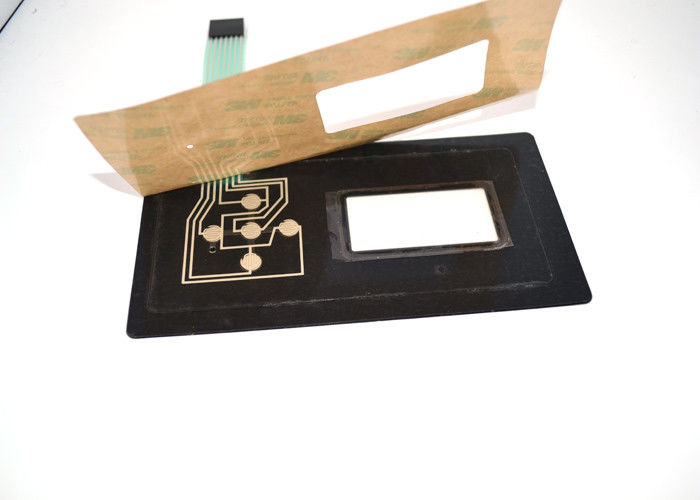

Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window

Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window

  • Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window
  • Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window
  • Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window
Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window
Product Details:
Place of Origin: Jiangsu (China,mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-81
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to detail customer requirements
Delivery Time: within one week after shipment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Material: PET Real Adhesive: 3M467
Color: Pantone And RALcolor Matching System. QC: 100% Function Test
Circuit: Silver Ciruit PET Printing:: Silk Screen Printing
High Light:

push button membrane switch

,

key membrane switch

Black background with flat non-tactile metal dome membrane switch /



ZS-81 / A clear display window on it






 Waterproof embossing  metal dome membrane switch


1.Electrical Properties



Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180

2.Mechanical Properties



Operating Force:

Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz)

Switch Stroke:

Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm

3.Environmental and Storage   Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +70°C

Humidity:

40°C, 90%~95%, 240 hou





Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window 0Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window 1





What is Membrane Switch ?



A membrane Switch is a momentary switching device that is manufactured by using a series



of flexible layers of polyester films and adhesives. The upper-most layer, called a graphic



overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate



film. Membrane switches can be constructed with multiple circuit layers, and more



complicated graphic design features, such as domed key embossing. Designs that are more



complex require, more material layers for proper construction and reliable operation.



Membrane switches, when combined with components such as a tactile dome, graphic



overlay, or integrated LEDs or resistors can provide the designer with virtually limitless



capablities to create the ideal custom user interface for their products.



Custom Flat Non Tactile Metal Dome Membrane Switch With Clear Display Window 2



Quality Assurance



All products are 100% quality tested and monitored carefully prior to


shipment.


State-of-the-art testing equipment.


Efficient assembly and packing lines


All products compliant with RoHS and other regulations


Strict assembly, reliability and functional tests to ensure the total and effective quality control




Application


We have the capacity to produce Textured waterproof embossing led metal dome membrane



switch, membrane switch panel with other special requirements, such as Shielding,



Windows/Lens Coating, Embossed button, Embossed LEDs, UV glossy/matte/textured, EL,LED



backlight,rubber keypad etc.



Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command



System, Security System, POS



Instrument: Medical Instruments, Electric Instruments, Detecting Instruments, KIOSK,

Teaching Instrument, Data Acquisition System, Electrocardiograph

Office Machines: Printer, Copier, Fax Machine, Projector, Entrance Guard Machine,

Attendance Machine

Consumer Electronic: LCM/LCD, Computer/cell Phone, Digital Camera, Sound and Imaging

Equipment, Electronic Toys, Remote Controller
