Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside

Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside

  • Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside
  • Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside
  • Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside
Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-99
Payment & Shipping Terms:
Minimum Order Quantity: 100 pie
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transoportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Keypad Button: PET/PC/PMMA Name: Flexible Membrane Keyboard
Application: Printer Machine Brand Name: Zhongshan
Feature: Water-proof Size: 90*105mm
High Light:

membrane touch switch

,

tactile push button switch

custom tactile membrane keyboard membrane switch / ZS-99 /

90*105mm switch with out metal dome inside


Specification



1, operating voltage:


≤ 35VDC


2, working current:


≤ 100mA


3, Contact resistance:


0.5 ~ 5Ω


4, Insulation resistance:


≥ 100MΩ (100VDC)


5.Spring Time


≤ 6ms



6.Switch Stroke


Flat 0.1~0.5mm
Tactile 0.6~1.5mm


7.Operation Force


Flat 57g~286g
Tactile 170g~398g


8.Operation Temperature


-20℃~ +80 ℃


9.Storage Temperature


-40 ℃ ~ +85 ℃ temperature of 95% ± 5%


10, atmospheric pressure:


86 ~ 106kDa



11.Life expectancy



Flat 500Million-1000Million
Tactle 100million




Membrane Switch Advantages:

1. Beautiful appearance ,rich and bright in color.

2. Small size ,light weight ,good tactility.

3. Low cost ,high lifespan.

4. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested.

5. Customized specification is available and keys can make different shapes.



What Is A Membrane Switch?

Membrane switches are generally made from five different layers. This includes membrane,

graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the

user to control the machine. It can also include a flexible circuit for less expensive

alternatives. Another layer will contain the printed circuit which allows a signal to be

transmitted. The ink that is used for the printing on the circuit is generally made up of a

variety of metals. This helps for the signal to be conductive for turning on and off. Membrane

switches allow for communication to take place in electronic devices. Membrane switches are

a piece of equipment that can be highly sophisticated or rather simple by design.

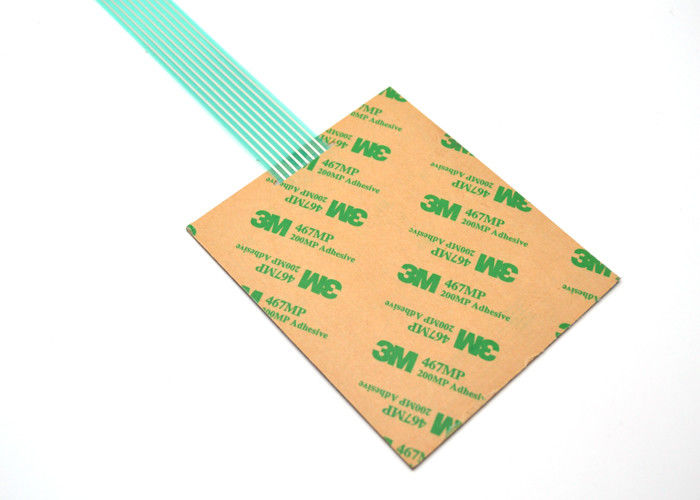

Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside 0

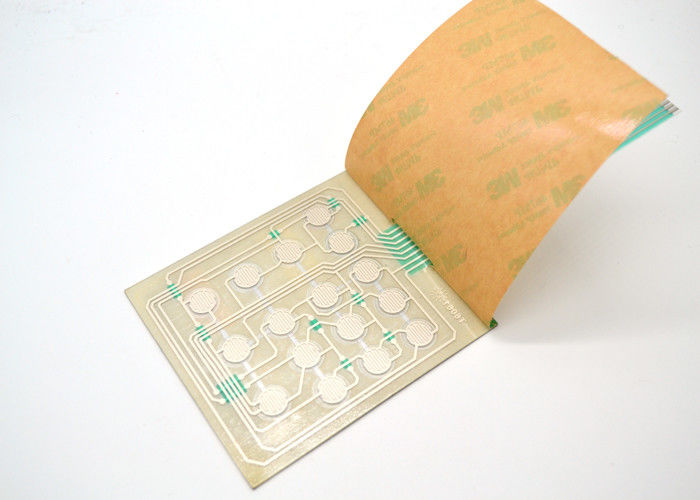

Custom Mulit Button Tactile Membrane Switch Keyboard Without Metal Dome Inside 1


Packaging & Shipping

custom tactile membrane keyboard fpc membrane switch
