Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment

Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment

  • Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
  • Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
  • Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
  • Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
  • Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-101
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payments
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportaiton
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Application: Telecommunication Equipment Keypad Button: Metal
Name: Membrane Switch Color: Pantone
Product Name: High Quality Flat Pet Membrane Swit Model Number: ZS-101
High Light:

flat membrane keyboard

,

flexible membrane switch

High Quality Flat Pet Membrane Switch With Red transparent Window



good service / ZS-101 / with a 1.5mm connector cable





Product information



Product name High Quality Flat Pet Membrane Switch With Window
Material Pet
Printing Screen Printing
Size Customized Size
Certification SGS





Specification:



1. Overlay Materials:The most commonly used base materials are polyester(PET) and



polycarbonate(PC).



2. Rear Adhesive:3M467MP, .Rear Adhesive 3M468MP,etc.



3. Matching color:Pantone and RALcolor matching system.



4. Gloss,semi-gloss or matte



5. non-metal dome



6. Standard Tolerances:+/- 0.10inch(+/-0.25mm)



resistance: <1Ω/cm


contact current: 25~100mA


voltage rating: 2~24V


voltage insulation:1500V


voltage endurance:250V(60Hz/min)


insulation resistance:500VDC500MΩ


active force: 0.3~3N


lifecycle : >1mil.(non-tactile)

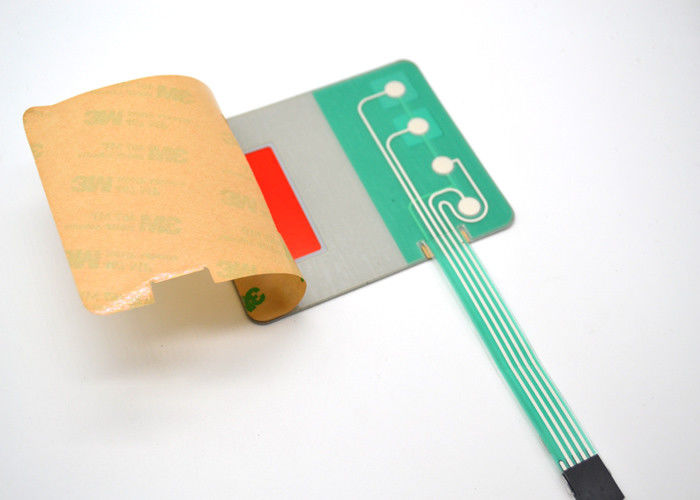

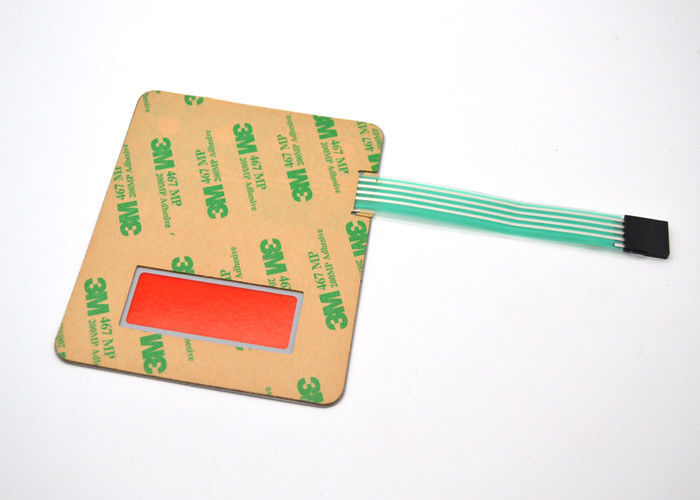

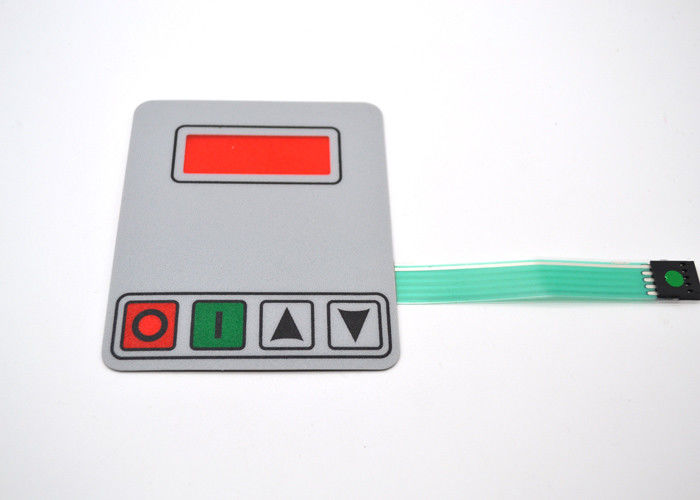

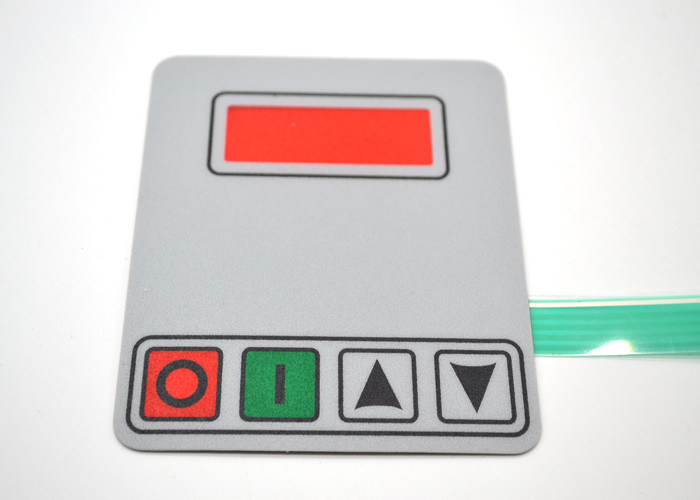

Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment 0Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment 1



Our Advantage



1, We offer very competitive price with a emphasis on quality and service.



2. We can manufacture more than one kind of products all the time to reduce your expertises



    and save your time.



3. Whe have 12 years experiences of engineers.



4. Quick exponse, good service and short delivery times.







FAQ Service



Q1. Can I have some samples for testing quality?





A: Yes, you can buy some samples of any our products for testing quality and market.





Q2. What is delivery time if we place an order?





A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for





    small orders, for more QTY. order, let's confirm when you place offical order.





Q3. Do you accept OEM/ODM?





A: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.

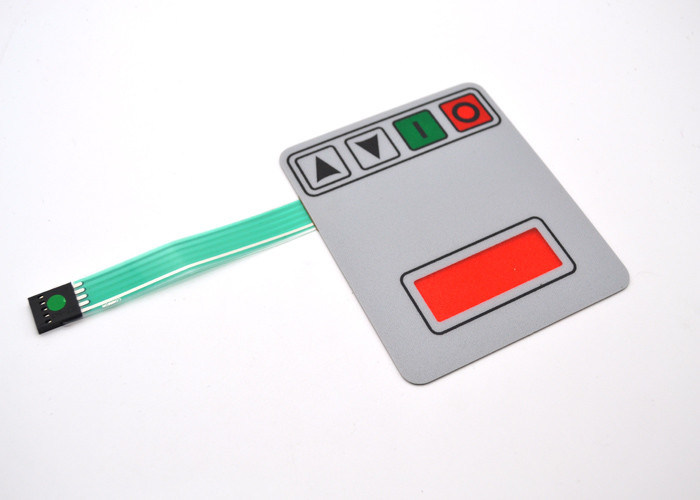

Flat PET Membrane Switch With Transparent Window For Telecommunication Equipment 2
