| Place of Origin: | Jiangsu(China mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-102 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payments |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment before air transportation |
| Supply Ability: | 50000 pieces per week |

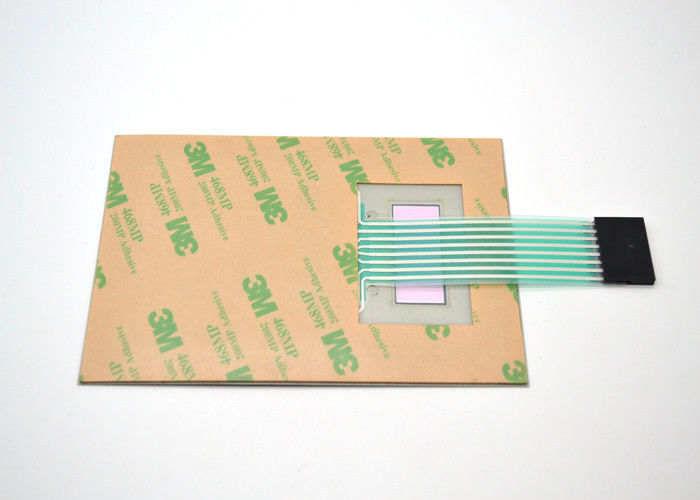

| Back Adhesive: | 3M467MP | Name: | Flat/ Embossed Push Button |
|---|---|---|---|
| Model Number: | ZS-102 | Feature: | Water-proof |
| Thickness: | 0.3mm | Printing: | Screen Printing Or Digital Printing |
| High Light: | membrane switch keypad,custom membrane keypad |
||

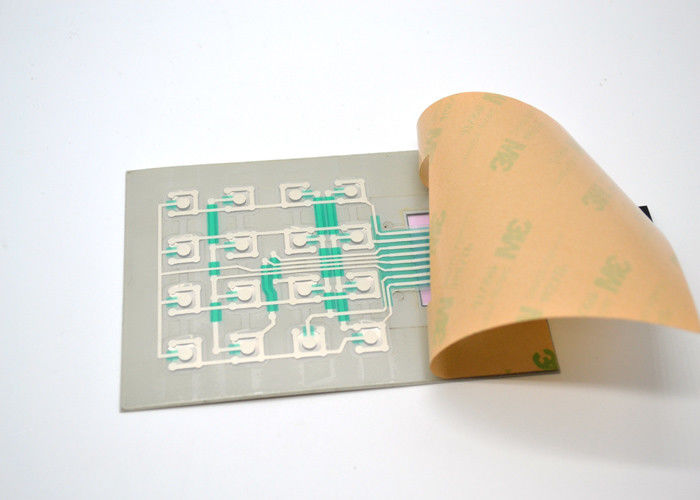

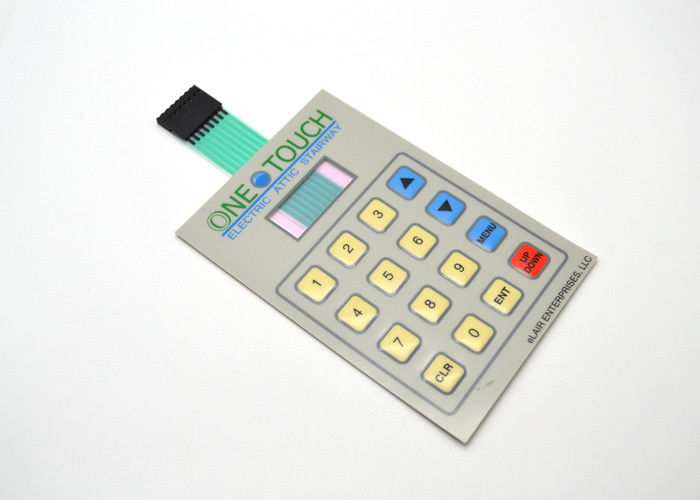

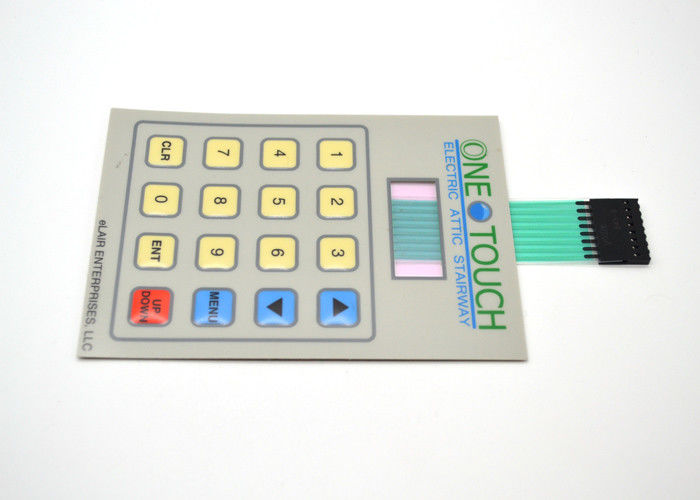

Embossed push button keypad membrane switch with LCD window /
ZS-102 /Mostly exported to America
|
Waterproof embossing metal dome membrane switch
|
|||
|
1.Electrical Properties
|
|||
|
Electrical Level:
|
35V(DC), 100mA,1W | ||
|
Contact Resistance:
|
10Ω~500 Ω | ||
|
Insulation Resistance:
|
100MΩ/100V | ||
|
Dielectrics Voltage-resistance:
|
250VRms(50~60Hz 1min) | ||
|
Chattering Time:
|
≤ 5ms | ||
|
Life Time:
|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
|
Tail Folding:
|
R>1,180 | ||
|
2.Mechanical Properties
|
|||
|
Operating Force:
|
Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz) | ||
|
Switch Stroke:
|
Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm | ||
|
3.Environmental and Storage Conditions
|
|||
|
Operation Temperature:
|
-40°C ~ +80°C | ||
|
Storage Temperature:
|
-40°C ~ +70°C | ||
|
Humidity:
|
40°C, 90%~95%, 240 hou | ||
What are Standard Membrane Switches ?
The easiest way to understand what a membrane switch is, is to reference an all-time favorite
device-the microwave. The membrane switch on the microwave is the buttons—the human
interface layer—that communicates to the microwave that you’d like to reheat your food for
one minute.
Application:
Medical equipment, Telecommunications apparatus, Household appliance, Industrial controls,
etc.We can be customized according to customer requirements
Packaging & Delivery
packaging details: inside,shockproof package, PE bag
outside,thickened carton, water-proof
delivery details: express,2-4 working days
air freight,5-7 working days
sea freight,25 working days
