    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-106

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30%deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Material: PC,PET Back Adhesive: 3M467MP
    Brand Name: Zhongshan Printing: Screen Printing
    Connector: 1.00mm Female Connector Thickness: 0.3mm
    High Light:

    membrane touch switch

    ,

    tactile push button switch

    Tactile Embossed Push Button Silicon Membrane Keypad Switch / ZS-106

    / Printing customer special logo and color design


    Product introduction:

    The membrane switch also known as touch keyboard. It is a new type of electronic

    component integrating optical, mechanical and electrical technology, and sealing together key

    switch, panel,circuit,LED light and lining board.

    The membrane switch have the great features, such as waterproof,dustproof, oil resistance,

    anti-erosion from harmful gases, as well as stable performance, light weight, small size, long

    life, easy installation etc.

    The switch circuit connected with the machine can be welding or plug way.

    The total thickness is usually between 0.6mm to 3mm for rigid membrane switch panel.

    The total thickness is usually 0.6mm to 1.2mm for flexible membrane swith panel.



    Technical parameter:

    rated power


    YBK series


    35V(DC), 100mA,2.5-5W


    RBK series


    30V (DC), 50mA, 1W


    loop resistance



    YBK series


    ≤10Ω


    RBK series


    100~500Ω




    insulation resistance


    500 MO (DC , 100V)



    dielectric strength



    ≥500V

    ≤1000V


    operating force


    80-350g/cm2


    load switch life


    no touch-type and touch type≥ one million times


    swtich (key)stroke


    0.2~0.5mm


    key rebound velocity


    <0.5ms


    peel strength


    =20N/25mm


    ambient temperature


    -30°c~60°c
    relative humidity (RH)


    YBK series=75%RH



    RBK series can up to 90%RH

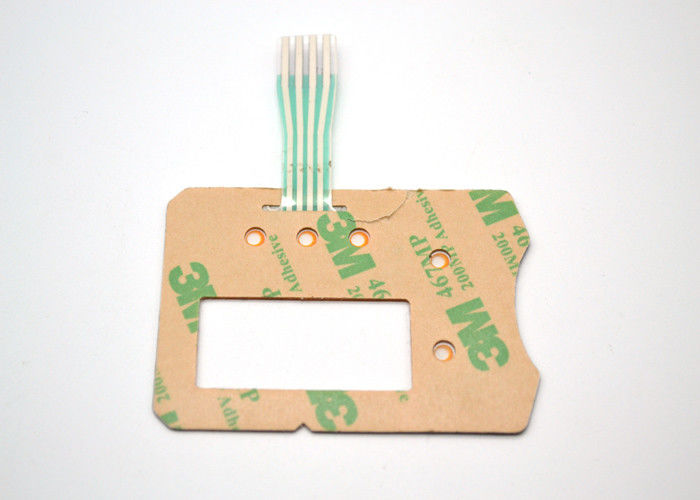

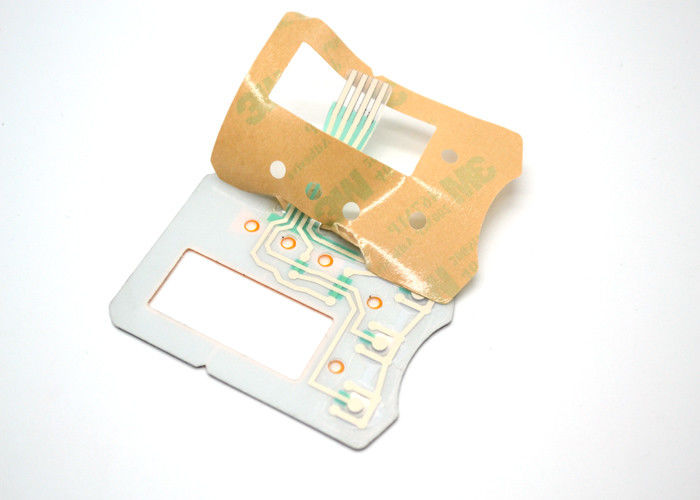

    Push Button Tactile Membrane Keyboard , Membrane Type Touch Switch Oil Resistance 0Push Button Tactile Membrane Keyboard , Membrane Type Touch Switch Oil Resistance 1




    Main Properties:

    1. PC /PET as overlay (control panel)

    2. Flat keys or tactile type

    3. Embossed button with good tactile feel

    4. Pre-assemble with or without metal domes

    5. Water-resistant, water-proof, dust-proof, gas-proof and scratch-resistant

    6. Long life cycle.

    7. Finish :Gloss(easy to clear); Textured (print and scratch resistant),Customized finish

        available.


    Packing and Delivery

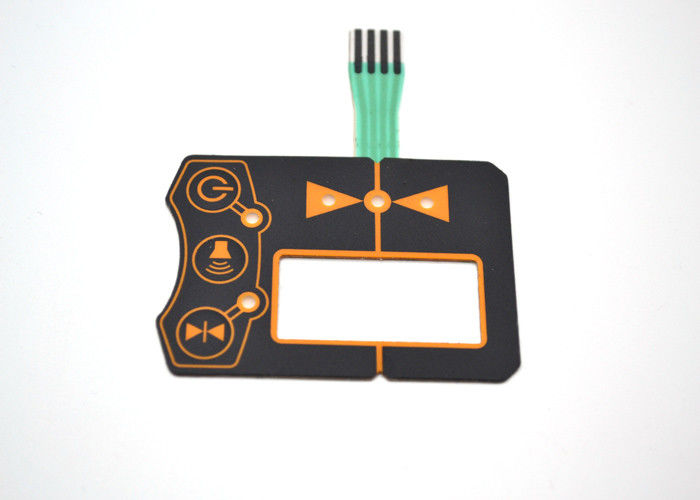

    Push Button Tactile Membrane Keyboard , Membrane Type Touch Switch Oil Resistance 2
