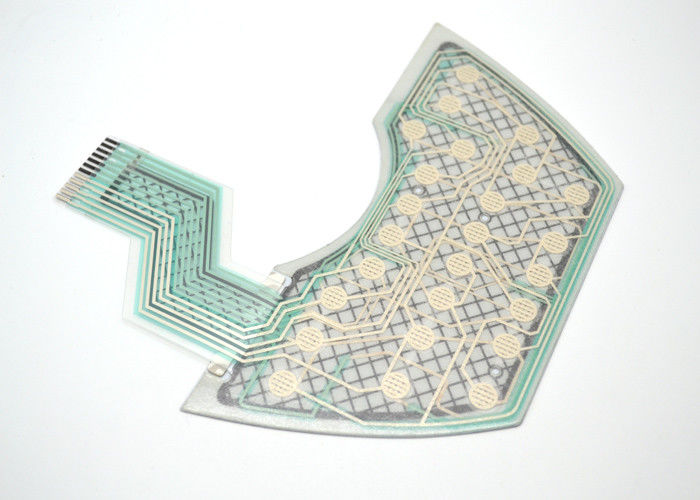

Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven

Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven

    • Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven
    • Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven
    • Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven
  • Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2
    Model Number: ZS-108

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30%deposit, the 70% after shipment or full payment after receiving order payment
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Place Of Origin: Jiangsu(China Mainland) Brand Name: Zhongshan
    Model Number: ZS-108 Microwave OveN: PC Or PET Material
    Delivery Method: By Air Or By Sea THICKNESS: 0.2MM

    Application for Micro-wave oven without metal dome / ZS-108 / pressure



    sensitive membrane switch single shielding

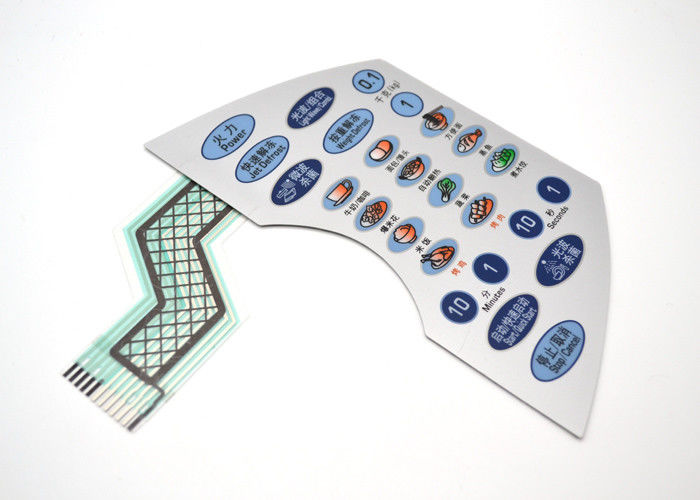

    Microwave oven membrane switch



    Overlay Materials: The most commonly used base materials for membrane panel are

                                  polyester and polycarbonate.

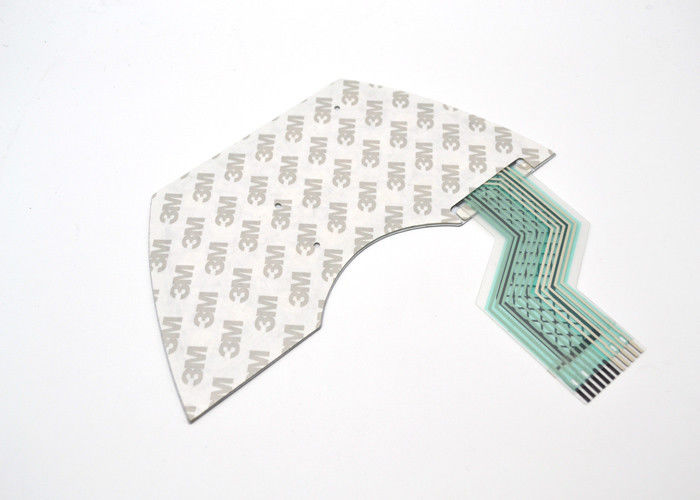

    Rear Adhesive: 3M 467MP, 3M 468MP, etc.



    Standard Tolerances: +/-.010 inch.



    Matching color: Pantone and RAL color matching system.



    Tail, pin and circuit layout: subject to customers detailed requests.





    Type of buttons for membrane panel :



    • Non tactile



    • Tactile with stainless steel domes



    • Tactile with poly domes on the circuit



    The main properties of custom design electronic membrane panel


    1. PC /PET as overlay (control panel)


    2. Flat keys or tactile type


    3. Embossed button with good tactile feel


    4. Pre-assemble with or without metal domes


    5. Water-resistant, dust-proof, gas-proof and scratch-resistant


    6. Long life cycle.





    Electrical Performances



    Wire Resistance



    0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



    Insulation Resistance



    >100MΩ 250V DC Working Voltage <50V DC



    Non-tactile Switch



    0.1-0.4mm Tactile Switch 0.4-1.0mm



    Working Life



    >1 million times Working Temperature -40℃-70℃



    Working Humidity



    40℃,98%RH No Influence Substrate Voltage 1500V DC



    Feed backTime



    10ms Tail Folding R>1,180





    High-performance Membrane Panel





    1.Beautiful appearance, rich and bright in color, design can be arbitrary, the products can



       fully reflect the individual style of the product itself and designer.


    2. Panel can wash, good protection of durable color, characters, logos and other panel



       contents without injury.


    3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and



       connection convenience.

    4. Low cost, high lifespan, membrane switches design and manufacture are using the



       keyboard as a whole way, whether on the material or mold charges, the costs are lowest,



       the life expectancy of different types of membrane switch is more than 100 million times.



    Single Shielding Sealed Membrane Switches Multi Keys For Microwave OvenSingle Shielding Sealed Membrane Switches Multi Keys For Microwave Oven

    Company Introduction



    Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



    Membrane Switch is a professional membrane switch manufacturer in China. Our professional



    operation can ensure you of quality products supported by mechanical, electronic and control



    automation. Based on our good abilities in technology and production workmanship, our



    products are strictly checked by our quality supervision department. For your added



    assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



    RoHS Directive..



    “Our 3,000sqm factory houses three production lines furnished with advanced equipment to



    manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



    Europe, Australia and other areas worldwide.


    Single Shielding Sealed Membrane Switches Multi Keys For Microwave Oven
