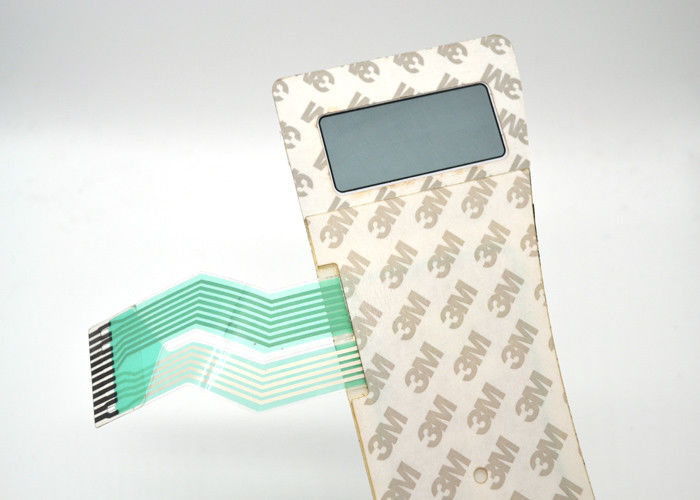

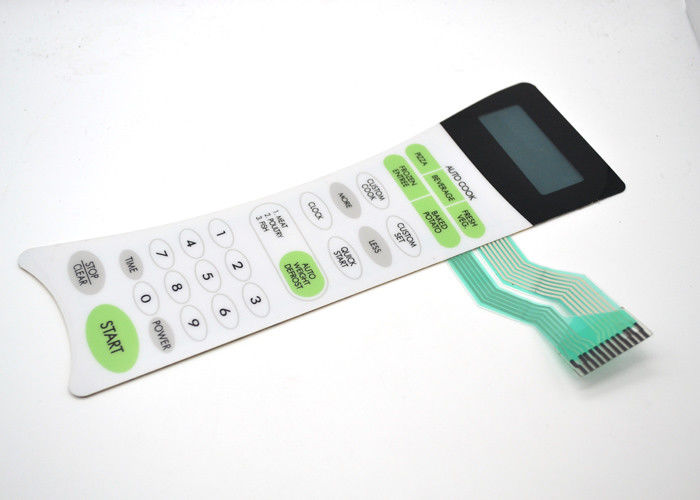

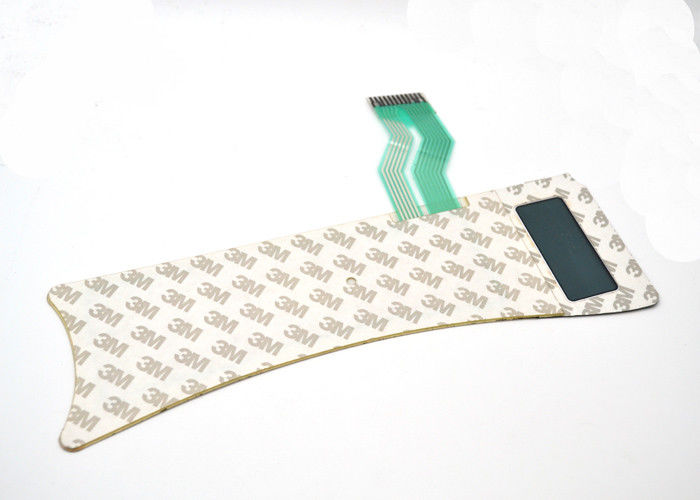

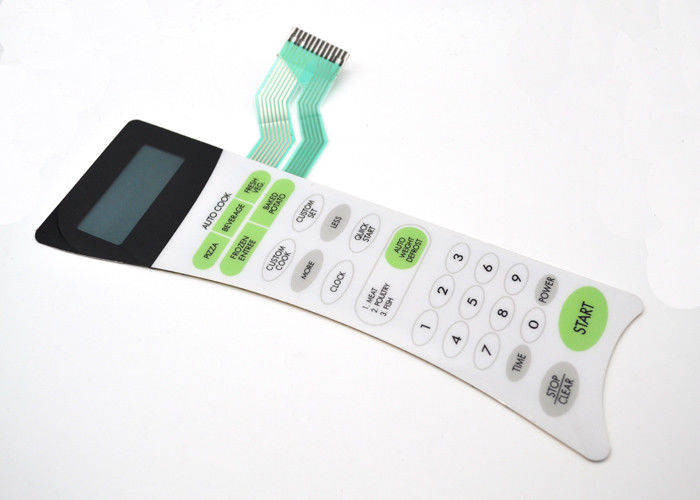

Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive

Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive

    • Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive
    • Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive
    • Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive
    • Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive
  • Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-109

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payments
    Payment Terms: 30deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Material: Polyester,polycarbonate Application:: Home Appliance
    Feature: Water-proof Model Number: ZS-109
    Printing: Screen Printing Place Of Origin: Jiangsu(China Mainland)

    Custom flat non- tactile microwave oven membrane switch / ZS-109 /



    With a shielding layer and 3M55230





    Electrical Performances





    Wire Resistance



    0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



    Insulation Resistance



    >100MΩ 250V DC Working Voltage <50V DC



    Non-tactile Switch



    0.1-0.4mm Tactile Switch 0.4-1.0mm



    Working Life



    Working Life Working Temperature -40℃ ~ 70℃



    Working Humidity





    40℃,98%RH No influence Substrate Voltage 1500V DC



    Feedback Time



    10ms Tail Folding R>1,180





    Advantage feasure



    • Backlighting (Electroluminescent and Fiber Optic)



    • Sub Panel (backer)



    • Silicone Rubber Keypads



    • Copper Flex Circuits



    • Touch Screen



    • Duraswitch

    Flat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 AdhesiveFlat Microwave Oven Membrane Keypad With Shielding Layer And 3M55230 Adhesive



    Quotation Request:



    The more information that is supplied regarding applications, functional requirements and





    environmental concerns, the more accurate our quotation will be. Drawing design will be





    better.



    • Switch application



    • Quantities required for prototypes and production



    • Material requirements



    • Graphic overlay material, polycarbonate or polyester



    • Overlay finish requirement



    • Number of colors to be printed on graphic overlay



    • Overall dimensions or prints



    • Embossing requirements



    • Type of termination required and tail length



    • Dome type, if tactile feel is needed



    • Pinout requirements



    • Environmental concerns



    • Back-lighting



    • Other special requirements





    Our Best Service



    • Custom design expertise



    • Single source manufacturing



    • Assembly of surface mount components/circuit boards/backplates



    • Multi-tasking switch pattern designs



    • Custom molded boxes, bezels and frames with switch installation



    • Precise color matching and repeatability



    • Water resistant designs to Nema 4



    • Fiber optic back-lighting



    • 100% function testing of all circuits in-house
