Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard

Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard

    • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
    • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
    • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
    • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
    • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
  • Metal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-113

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PIECES
    Price: NEGOTIATION
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Place Of Origin: Jiangsu(China Mainland) Brand Name: ZS-113
    Button Material: Pet/pvc Connector: 1mm Male Connector Tail
    Application: Industrial Instruments Current Contact: 2-24V

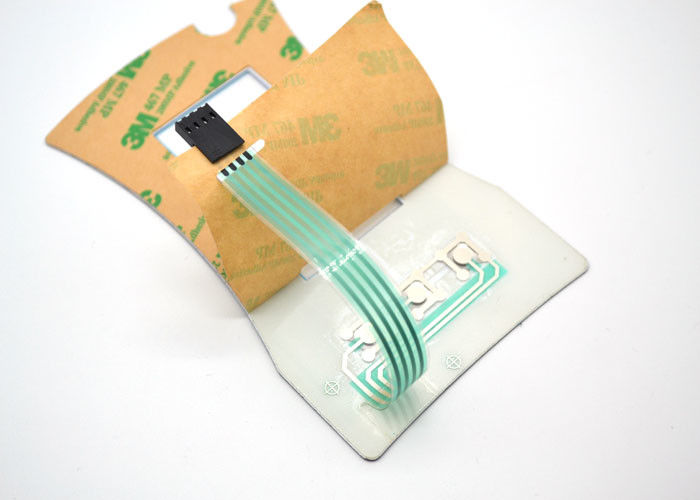

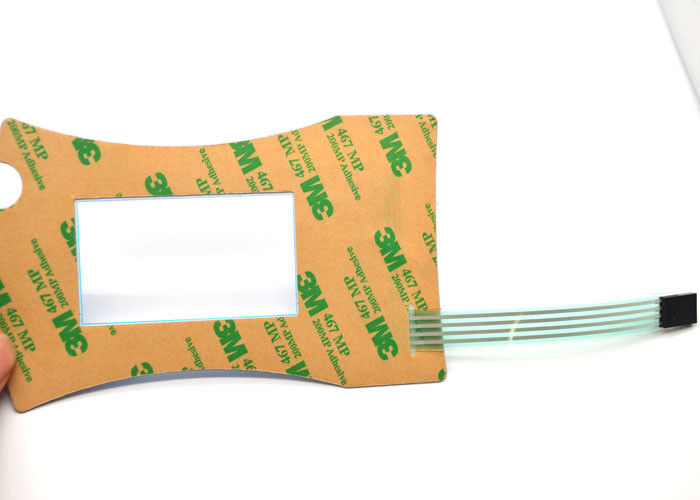

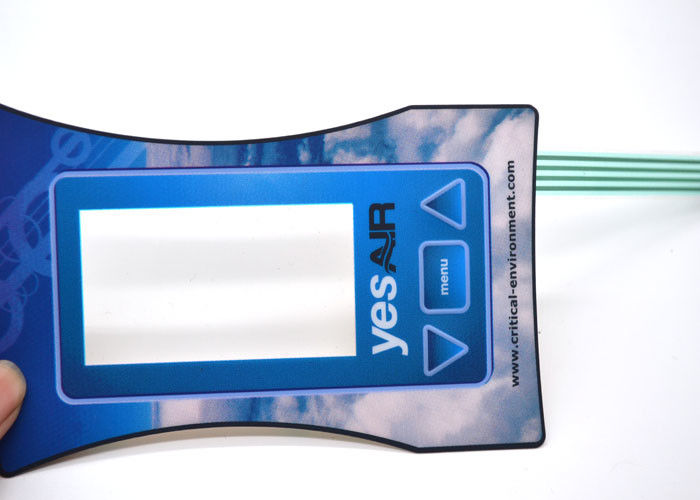

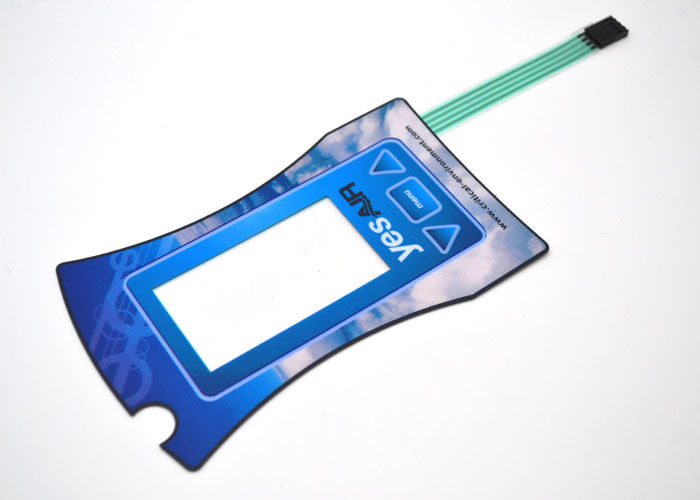

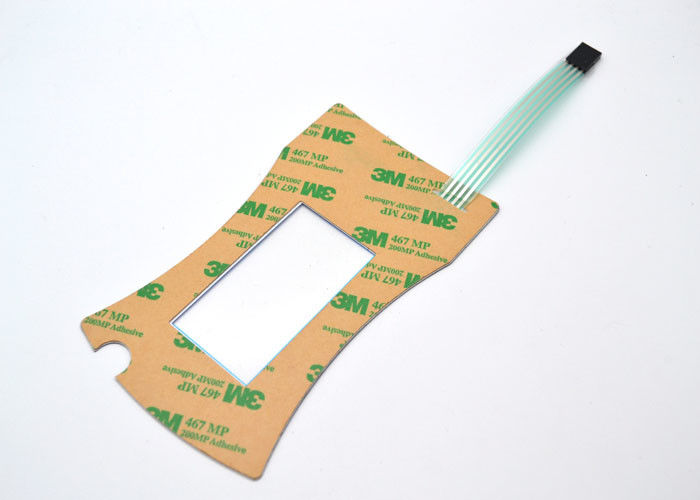

    Exported to Canada metal dome membrane switch /ZS-113 / with a



    1 mm male connector cable tail





    What is A Membrane Switch?


    Membrane switches are generally made from five different layers. This includes membrane,



    graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the



    user to control the machine. It can also include a flexible circuit for less expensive



    alternatives. Another layer will contain the printed circuit which allows a signal to be



    transmitted. The ink that is used for the printing on the circuit is generally made up of a



    variety of metals. This helps for the signal to be conductive for turning on and off. Membrane



    switches allow for communication to take place in electronic devices. Membrane switches are



    a piece of equipment that can be highly sophisticated or rather simple by design.



    Electronic Characteristic



    <35V ( DC ) <100mA 1W





    Contact Resistance



    10Ω--500Ω (According the trace length and materials to confirm)



    Insulating Impedance



    >100MΩ 250V DC



    Resistance of the wire



    <1 Ω/cm width 1.27mm



    Operation Force



    flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)



    Life Expectancy



    flat type ≥ 500 million times, tactile type: ≥ 100 million times



    Operation Temperature



    -40 °c ~ + 80 °c



    Stock Temperature



    -40 °c ~ + 85 °c



    Humidity



    + 40 °c 90 % ~ 95% 240 hour



    Switch stroke



    flat type 0.1-0.5mm, tactile type 0.6-1.5mm

    Strength:



    1, Pressing life-span is over ten hundred thousand times.



    2, have the characteristics of the function stabilizes.



    3, handle reliably and good tactility feeling.



    4, customised design



    Technology



    Operating voltage: 35V DC


    Operating current: 100mA 1W


    Contact resistance: < 100 Ohms


    Open circuit resistance: ≥ 10MΩ at 100V



    Operating temperature: Flat/Metal dome:-20°c to +80°c



    Storage temperature: Flat/Metal dome:-40°cto +80°c



    Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times



    Switch stroke: 0.1 to 0.6mm


    Contact bounce: 5 to 30ms


    Actuation force tolerance: +/- 20 to 45g


    Tactile ratio: FC > 40%


    Operating humidity: up to 95% RH


    Female, male connector, solder pins and heat seal connectors are available



    Packaging & Delivery



    Packaging: PE bag, Carton, Wooden case



    Delivery Detail: two weeks after order confirmation



    Metal Dome Membrane Touch Switch , Flexible Custom Membrane KeyboardMetal Dome Membrane Touch Switch , Flexible Custom Membrane Keyboard
