PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

    • PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion
    • PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion
    • PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion
  • PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

    Product Details:

    Place of Origin: jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-115

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportaion
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Material: PET Window: Clear Display Window
    Thickness: 0.2mm Connector: 3.7mm Male Connector Tail
    Brand Name: Zhongshan Current Contact: 2-24V

    Embossed tactile metal dome membrane switch / ZS-115 / Printing 4



    colors on the graphic overlay





    Product Description



    This is a membrane swith which designed as the customer requirement, it is produced with



    sverial production processes which being strictly monified. we are a professional manufacture



    for more than 13 years old. high quality of every item will be guaranteed.Color printing is



    most important,our worker choose it as  color code, every item will be fine and packaged in



    cartonboxes before shipment.



    Electric parameters:


    operating voltage:≤ 50VDC


    working current:≤ 100mA


    Contact resistance:0.5 ~ 5Ω


    Insulation resistance:≥ 100MΩ (100VDC)


    substrate voltage:2kDVC


    spring time:≤ 6ms


    loop resistance:20Ω


    insulation ink voltage:100VDC


    Physical parameters:


    Active force: 0.3 to 3N


    Lifespan: >1mil (non-tactile)


    Hand speed: ≤5ms


    Temperatures: -40 to +85°C


    Humidity: 40/48hrs, 95% RH


    Working altitude: 0 to 4,500m

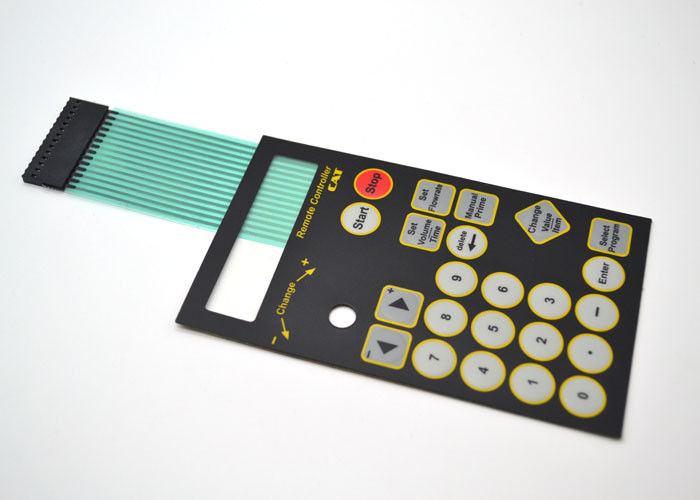

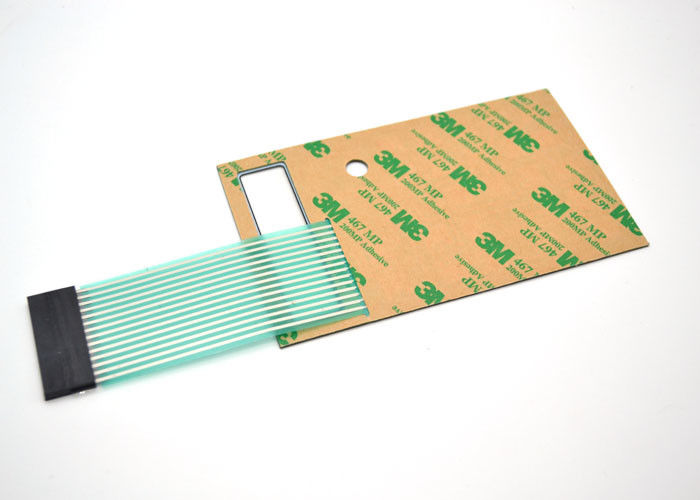

    PET Material Embossed Tactile Metal Dome Membrane Switch Anti - CorrosionPET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion



    Application


    We have the capacity to provide F150 PET Shield/ flat/ embossed push button keypad



    membrane switch with translucent red LCD window, membrane switch panel with other



    special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed



    LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard



    etc.



    Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command



                     System, Security System, POS



    Instrument: Medical Instruments, Electric Instruments, Detecting Instruments, KIOSK,

                      Teaching Instrument, Data Acquisition System, Electrocardiograph

    Office Machines: Printer, Copier, Fax Machine, Projector, Entrance Guard Machine,

                              Attendance Machine

    Consumer Electronic: LCM/LCD, Computer/cell Phone, Digital Camera, Sound and Imaging

                                      Equipment, Electronic Toys, Remote Controller


    PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

    Packaging & Shipping



    Membrane Switch Packing and Delivery Details:





    1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer



       carton.



    2. According to customers' requirements.





    Lead Time:



    1. Lead time of samples:



    Inital samples: 3-5 working days for graphic overlay, 5-7 working days for membrane



    switch,7-15 working days for special membrane switch including



    special product.It takes 5-7 working days to recise initial sample.(depended on actural



    product.)





    Final lead time is for your reference only , for more information ,pls contact me. Lead time



    for mass production delivery:





    2. Lead time of delivery:



    Mass production for reqular membrane switches 7-15 working days after receipt of



    PO.​Repeat order , graphic overlay needs 5-7 working days.



    Membrane switches take 10-30 working days .It takes 15-45 working days for special



    material.We can ship partial shipments for big quantity orders.



    Final ship date will be subject to company confirmation
