| Place of Origin: | Jiangsu(China mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-116 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payments |
| Payment Terms: | 30% deposit,the 70% balance after shipment or full payment before air transportation |
| Supply Ability: | 50000 pieces per week |
| Brand Name: | Zhongshan | Size: | 110*45mm |
|---|---|---|---|
| Window: | A Clear Display Window | Color: | Black Yellow Blue White |
| Material: | PET/ PVC | MODEL NUMBER: | ZS-116 |
| Current Contact: | 2-24V | ||
| High Light: | push button membrane switch,key membrane switch |
||

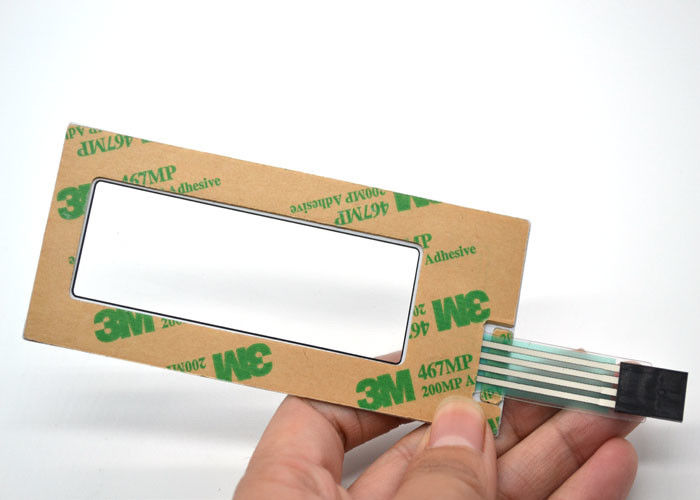

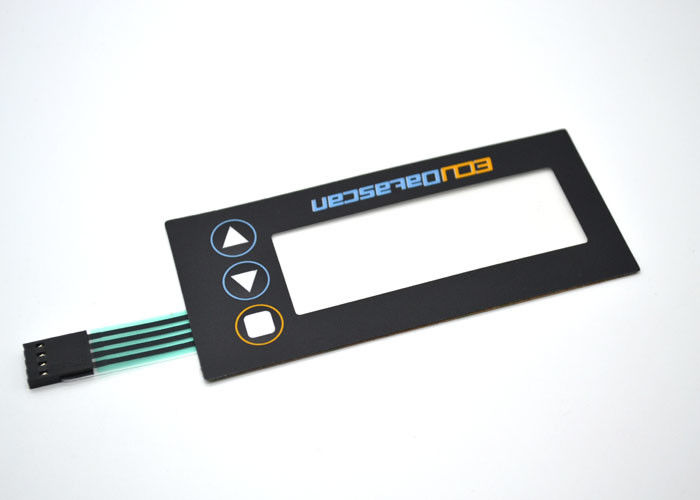

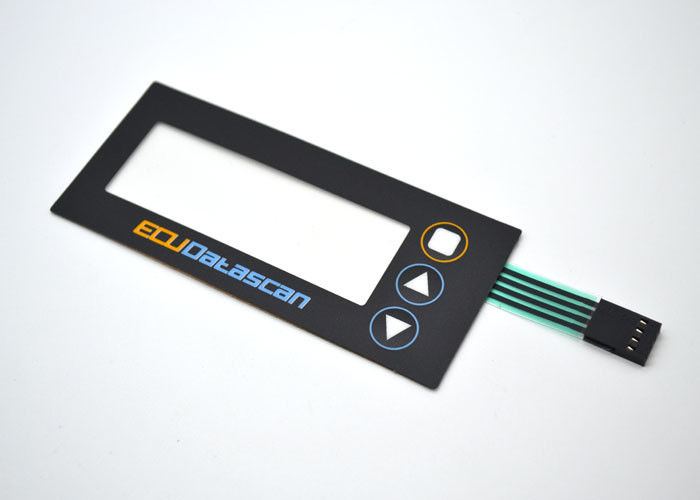

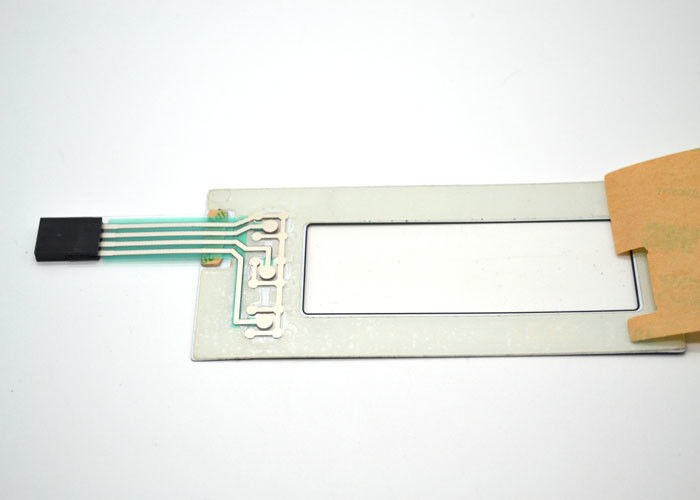

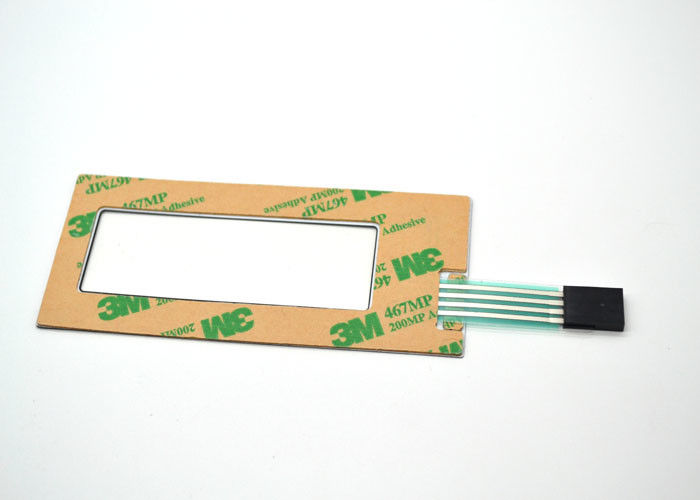

Membrane switch metal dome with a clear display window /ZS-116 /
only 3 embossed buttons on the overlay
Specifications:
| Operating voltage : | 35V DC | Life expectancy: | Flat type≥5,000,000 times |
| 100mA 1W | Switch stroke: | 0.1 to 0.6mm |
| < 100 Ohms | Contact bounce: | 5 to 30ms |
| ≥ 10MΩ at 100V | Actuation force tolerance: | +/- 20 to 45g |
| Flat/Metal dome:-20°c to +80°c | Tactile ratio: | FC > 40% |
| Flat/Metal dome:-40°cto +80°c | Operating humidity: | up to 95% RH |
Metal dome membrane swith advantage
1. High speed and precision chip placer or multi-function SMD mounter
2. Wave soldering machine
3. Vacuum machine
4. High temperature box
5. Auto-solder paste printer
6. Hot- and mixed-air reflow
7. Collimated Exposure Machine…
Why Choose Zhongshan?
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. We can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Quality Assurance
With our principle of precision and perfection, products are 100% quality tested and
monitored carefully prior to shipment.
testing equipment are stricted used.
Efficient assembly and packing lines testment
ISO 9001:2000 certified and all products are compliant with ROHS
Strict assembly, reliability and functional tests to ensure the total and effective quality control
