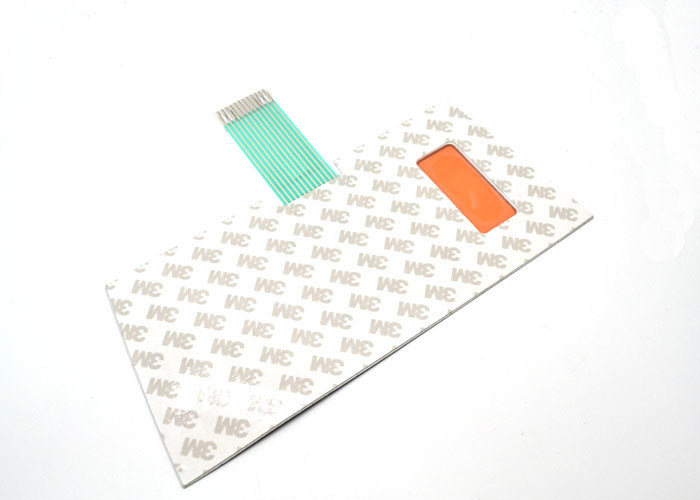

PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window

PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window

  • PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
  • PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
  • PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
  • PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
  • PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window
Product Details:
Place of Origin: JIANGSU(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-121
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit,the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Brand Name: Zhongshan Model Number: ZS-121
Application: Micro-wave Oven Overlay Material: PET/ PVC
Shipment Way: By Sea Or By Air Current Contact: 2-24V
High Light:

pet membrane switch

,

flexible membrane switch

With a color transparent display window metal dome membrane switch /



ZS-121 / printing several colors on the top overlay







Product Specification



Electrical Performances



Wire Resistance



0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



Insulation Resistance



>100MΩ 250V DC Working Voltage <50V DC



Non-tactile Switch



0.1-0.4mm Tactile Switch 0.4-1.0mm



Working Life



>1 million times Working Temperature -40℃-70℃



Working Humidity



40℃,98%RH No Influence Substrate Voltage 1500V DC



Feed backTime



10ms Tail Folding R>1,180





Membrane Switch Advantages:

1. Beautiful appearance ,rich and bright in color

2. Small size ,light weight ,good tactility

3. Low cost ,high lifespan

4. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested

5. Customized specification is available and keys can make different shapes





Performance



A.Electric Parameter


resistance: <1Ω/cm


contact current: 25~100mA


voltage rating: 2~24V


voltage insulation:1500V


voltage endurance:250V(60Hz/min)


insulation resistance:500VDC500MΩ


B.Physical Parameter


active force: 0.3~3N


lifecycle : >1mil.(non-tactile)


hand speed: ≤5ms


temperature: -40~+70


humidity : 40,48h95%


work altitude:0-4500M


C.Travel Distance


non-tactile :0.1~0.3mm


tactile :0.4~1.0mm



PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window 0PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window 1







Shipment and Delivery



PET / PVC Metal Dome Membrane Switch With Colored Transparent Display Window 2
