Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch

Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch

  • Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch
  • Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch
  • Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch
Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: ZHONGSHAN
Certification: ROHSISO9001,2000
Model Number: zs-126
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit,the 70% balance after shipment or full payment before air transportaiton
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Material: Pet / Pvc Surface: Embossed And Tactile
Quality: 100% Tested Application: Medical Instruments
Brand Name: Zhongshan Shipping Way: By Or By Air
High Light:

membrane panel switch

,

custom membrane switch panel



Single panel without metal dome / ZS-126 / Embossed tactile and a clear



display window / color printing on the overlay



Graphic Overlay Performance



Tactile Graphic Overlay



Material



Surface base materials include PET, PC



Thickness



0.1mm--0.25mm.



Advantages



Elegant shape, rich color, strong 3D-sence of keypad, long



life expectancy



Application



Widely used in household appliances, various surface



control parts of ndustrial instruments, with the function



of decoration and keystroke.







The feasure of membrane panel



Part Ordinary Material
Graphic Overlay   Finish



Specification



PC Gloss



0.175/.25/.35/.5 mm thickness



Matt



0.175/.25/.35/.5 mm thickness



PET Fine Texture



0.15/.20 mm thickness



Valet Texture



0.15/.20 mm thickness



Gloss with Hard Coat



0.18 mm thickness



Rear Adhesive



Paper Double-sided



Tape

  0.10 mm thickness





QC Standard



Overlay



Printing



Spelling mistake



Not allowed



Incorrect Font



Not allowed



Dimension error



>0.2mm is Not allowed



Color



Less than 2 levels with the specified Pantone color
Dot impurities



Diameter less than 0.2mm



Distance between two impurities is more than 50mm



The number of impurities is less than 2 within 100cm



Linear impurities



Width is less than 0.2mm,length is less 0.4mm in



panel surface.Distance between two impurities is



more than 50mm



Window impurities



Diameter is less than 0.2mm in the center of the



window

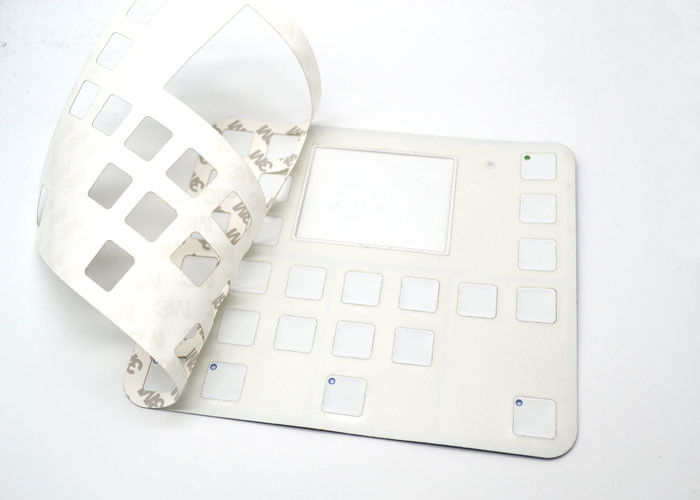

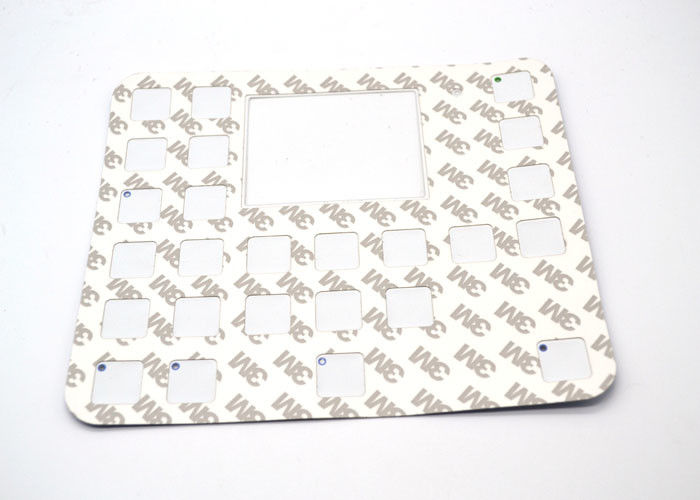

Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch 0Embossed Tactile Membrane Switch Keypad , Multi Button Membrane Panel Switch 1



Company Introduction



Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan Membrane Switch is



a professional membrane switch manufacturer in China. Our professional operation can ensure you of



quality products supported by mechanical, electronic and control automation. Based on our good abilities in



technology and production workmanship, our products are strictly checked by our quality supervision



department. For your added assurance, our plants are ISO 9001:2000-certified and our products are



compliant with the RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced equipment to manufacture up



to 6 million pieces monthly. We are serving customers in Asia, the US, Europe, Australia and other areas



worldwide.
