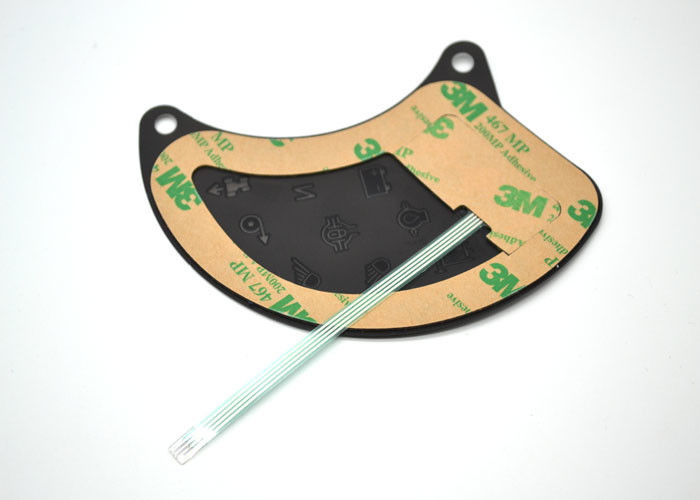

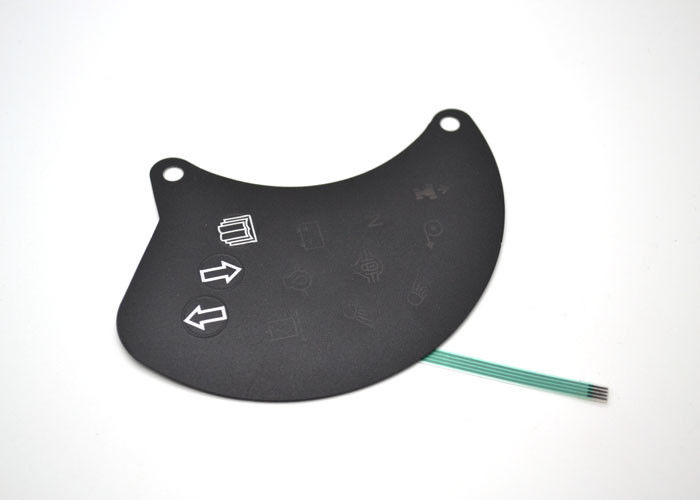

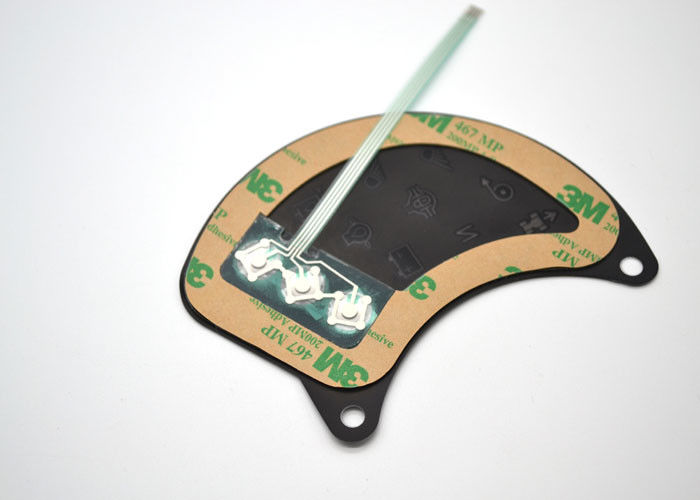

PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail

PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail

  • PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail
  • PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail
  • PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail
PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-129
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before by air
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Connector: 0.3mm Female Connetor Cable Back Adhesive: 3M467mp
Current Contact: 2-24V Brand Name: Zhongshan
Item Number: ZS-129 Thickness: 0.2mm
High Light:

membrane switch keypad

,

custom membrane keypad

Small dimension black and white overlay metal dome membrane switch /



ZS-129 / with a 0.3mm female connector cable tail



Specifications:

Operating voltage : 35V DC Life expectancy:

Flat type≥5,000,000 times

Tactile type≥1,000,000 times





Operating current:





100mA 1W Switch stroke: 0.1 to 0.6mm





Contact resistance:





< 100 Ohms Contact bounce: 5 to 30ms



Open circuit resistance:



≥ 10MΩ at 100V Actuation force tolerance: +/- 20 to 45g



Operating

temperature:



Flat/Metal dome:-20°c to +80°c Tactile ratio: FC > 40%



Storage temperature:



Flat/Metal dome:-40°cto +80°c Operating humidity: up to 95% RH



Feature:

1. PC /PET as overlay (control panel)

2. Flat keys or tactile type

3. Embossed button with good tactile feel

4. Pre-assemble with or without metal domes

5. Water-resistant, dust-proof, gas-proof and scratch-resistant

6. Long life cycle



PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail 0PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail 1



Company Introduction



Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing



Zhongshan Membrane Switch is a professional membrane switch manufacturer in



China. Our professional operation can ensure you of quality products supported by



mechanical, electronic and control automation. Based on our good abilities in



technology and production workmanship, our products are strictly checked by our



quality supervision department. For your added assurance, our plants are ISO



9001:2000-certified and our products are compliant with the RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced



equipment to manufacture up to 6 million pieces monthly. We are serving



customers in Asia, the US, Europe, Australia and other areas worldwide.



PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail 2





Payment:



Before making samples, you pay mold and sample fees.



Before mass production, you pay the order in advance 30%, the balance before the delivery



Delivery time:



Sample: after receiving your confirming the mold and paying for the sample fee, within 3



working days to provide effect chart, drawing confirmation, within 7 working days to provide



samples.



Mass production: mass production in accordance with the product process and quantity,



normal payment confirmation within 7-10 working days.



PC / PET Overlay Metal Dome Membrane Switch Keyboard With Female Connector Cable Tail 3
