Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer

Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer

    • Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer
    • Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer
    • Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer
    • Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer
  • Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer

    Product Details:

    Place of Origin: jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSIAO9001,2000
    Model Number: ZS-130

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before by air
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Brand Name: Zhongshan Application: Power Suppliers
    Suface: Matte Embossed And Tactile Exported To: Germany
    Quality: 100% Tested Current Contact: 2-24V
    High Light:

    key membrane switch

    ,

    custom membrane switches

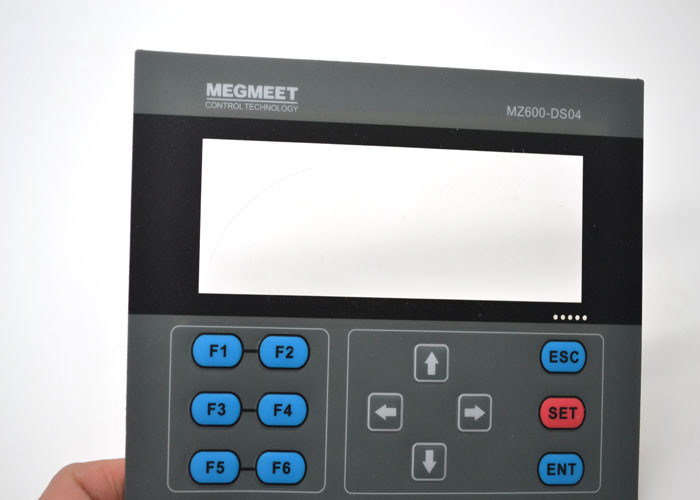

    Customized metal dome membrane switch / ZS-130 / with a clear display



    window and embossed tactile on the top layer



    Product Description





    This is a membrane swith which designed as the customer requirement, it is produced with



    sverial production processes which being strictly monified. we are a professional manufacture



    for more than 13 years old. high quality of every item will be guaranteed.Color printing is



    most important,our worker choose it as color code, every item will be fine and packaged in



    cartonboxes before shipment.







    Specifications:



    Operating voltage : 35V DC Life expectancy:

    Flat type≥5,000,000 times

    Tactile type≥1,000,000 times





    Operating current:





    100mA 1W Switch stroke: 0.1 to 0.6mm





    Contact resistance:





    < 100 Ohms Contact bounce: 5 to 30ms



    Open circuit resistance:



    ≥ 10MΩ at 100V Actuation force tolerance: +/- 20 to 45g



    Operating

    temperature:



    Flat/Metal dome:-20°c to +80°c Tactile ratio: FC > 40%



    Storage temperature:



    Flat/Metal dome:-40°cto +80°c Operating humidity: up to 95% RH







    What Is A Membrane Switch?


    Membrane switches are generally made from five different layers. This includes membrane,



    graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the



    user to control the machine. It can also include a flexible circuit for less expensive



    alternatives. Another layer will contain the printed circuit which allows a signal to be



    transmitted. The ink that is used for the printing on the circuit is generally made up of a



    variety of metals. This helps for the signal to be conductive for turning on and off. Membrane



    switches allow for communication to take place in electronic devices. Membrane switches are



    a piece of equipment that can be highly sophisticated or rather simple by design.



    Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer 0

    Dust Proof Metal Dome Membrane Switch With Embossed Tactile On The Top Layer 1
