Flat Membrane Keyboard Switch For Machanical Controller With Connector

Flat Membrane Keyboard Switch For Machanical Controller With Connector

    • Flat Membrane Keyboard Switch For Machanical Controller With Connector
    • Flat Membrane Keyboard Switch For Machanical Controller With Connector
    • Flat Membrane Keyboard Switch For Machanical Controller With Connector
  • Flat Membrane Keyboard Switch For Machanical Controller With Connector

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-131

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Back Adhesive: 3M55230 Application: Machanical Controller
    Brand Name: Zhongshan Model Number: ZS-131
    Quality: 100% Tested Thickness: 0.3mm

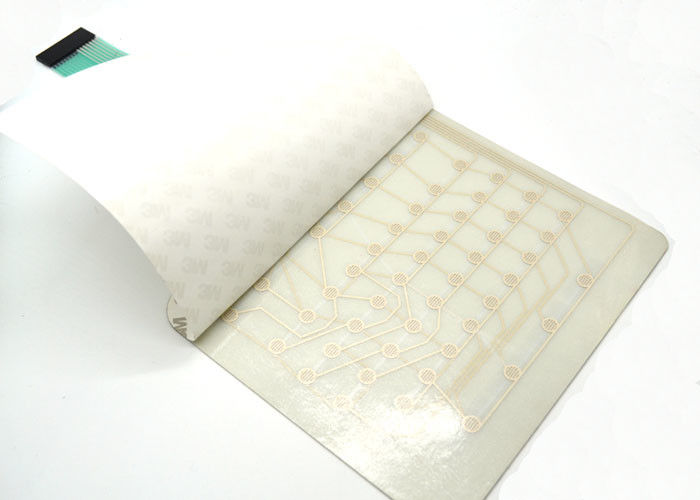

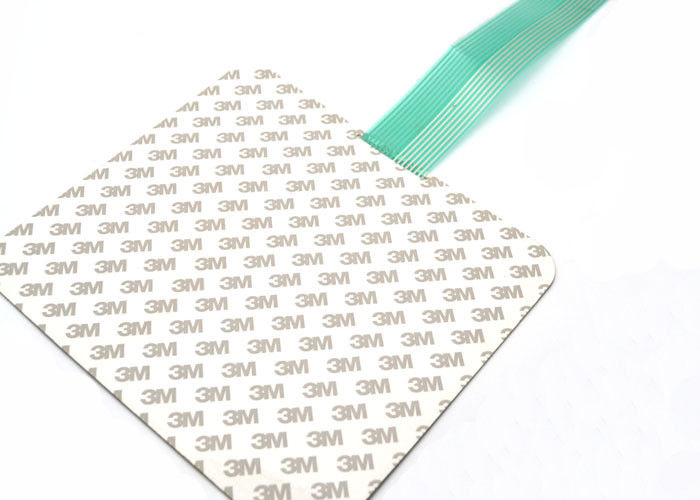

    Flat type membrane keyboard switch for mechanical control with

    connector / ZS-131 / with 3M55230 back adhesive


    Technical Parameters

    1. Electrical

    Maximum Circuit Rating: 35V(DC),100mA,1W

    Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)

    Insulation Resistance: 100MΩ 100V

    Dielectric: 250 Vrms (50~60Hz 1min)

    Contact Bounce: < 5ms

    Life: Flat: ≥ 5million times

    Tactile: ≥ 1 million times

    Duraswitch: ≥ 10million times

    2. Mechanical

    Actuation Force: Flat: 57~284g(2~10oz)

    Tactile: 170~397g(6~14oz)

    Switch Height: Flat: 0.1~0.5mm

    Tactile: 0.6~1.5mm

    3. Environment

    Operation Temperature: -40~+80 Degree Centigrade

    Storage Temperature: -40~+80 Degree Centigrade

    Humidity: 90%~95%, 240 hours

    Vibration: 20G, max (10~200Hz,Mil-SLD-202,M204.Condition B)

    Flat Membrane Keyboard Switch For Machanical Controller With ConnectorFlat Membrane Keyboard Switch For Machanical Controller With Connector

    Advantage:

    1. Accurate and strick color matching according to customer's requirement,both Panton and

        Ral color matching system ,using advanced light box and computer color mataching,we can

        also do half-tone printing

    2. Good material control to make sure all the material are high quality ,all the material we

        used are Rohns compliant

    3. Our engineer will work with customers and reommend specail constrution design to meet

        customer's desires ,such water proof ,dust proof and anti corrasion and so on

    4. Strick quality inspection ,100 % funtional tesiting ,and we can also do specified testing,

        such as humility testing ,life expectancy testing ,actuation force testing.

    5. We are qualified Dara switch .5. Except membrane switch and touch screen, we can also do

        different types of assembly,such as membrane switch and touch screen with FPC, PCB,

        silicone rubber ,metal backer ,plastic bezel and so on.

    6. We can accept small quantity order and offer competitve price.


    Our Best Service:Membrane switch


    (1) Custom design expertise

    (2) Single source manufacturing

    (3) Assembly of surface mount components/circuit boards/backplates

    (4) Multi-tasking switch pattern designs

    (5) Custom molded boxes, bezels and frames with switch installation

    (6) Precise color matching and repeatability

    (7) Water resistant designs

    (8) Fiber optic back-lighting

    (9) 100% function testing of all circuits in-house


    Company Introduction


    Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan

    Membrane Switch is a professional membrane switch manufacturer in China. Our professional

    operation can ensure you of quality products supported by mechanical, electronic and control

    automation. Based on our good abilities in technology and production workmanship, our

    products are strictly checked by our quality supervision department. For your added

    assurance, our plants are ISO 9001:2000-certified and our products are compliant with the

    RoHS Directive..

    “Our 3,000sqm factory houses three production lines furnished with advanced equipment to

    manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,

    Europe, Australia and other areas worldwide.

    Flat Membrane Switch /ZS-52 / with two clear window and a circuit of 1.54mm connector / application for Medical
