Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window

Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window

    • Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window
    • Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window
    • Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window
  • Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window

    Product Details:

    Place of Origin: jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-132

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Application: Medical Instrument Material: Pet / Pvc
    Brand Name: Zhongshan Current Contact: 2-24V
    Shipment Way: By Sea Or By Air Model Number: ZS-132
    High Light:

    flat membrane keyboard

    ,

    flexible membrane switch

    Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window


    1. Electronic characteristics



    Circuit rating


    35V (DC), 100mA, 1W


    Contact resistance


    10Ω~500Ω (According the trace length and materials)


    Insulation resistance


    > 100MΩ 250V DC


    Contact bounce


    ≤ 5ms


    Dielectric withstand


    250VRms (50~60Hz 1min)


    Life expectancy


    flat type ≥ 5 million times, tactile type ≥ 1 million times


    2. Mechanical Properties



    Actuation force


    flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)


    Switch stroke


    flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm

    3. Environmental parameters


    Operating Temperature



    -40°C~+80°C



    Storage temperature


    -40°C~+85°C


    Humidity


    40°C, 90% ~95%, 240 hours


    Membrane Switch Main Application:

    Information application products,

    Remote control

    telecommunication equipment

    OA equipment

    Household appliance

    medical instruments

    measuring instruments

    toys

    ...etc

    Environmental:

    Storage Temperature: -40°C (-40°F) to +70°C (158°F).

    Storage Altitude: Sea level to 35,000 feet

    Operating Temperature and Altitude: ordinary -30°C (-30°F) to +75°C (170°F),but can

    according to customer's requests.

    Humidity: No delamination after 24 hours at 80°C and 90%RH

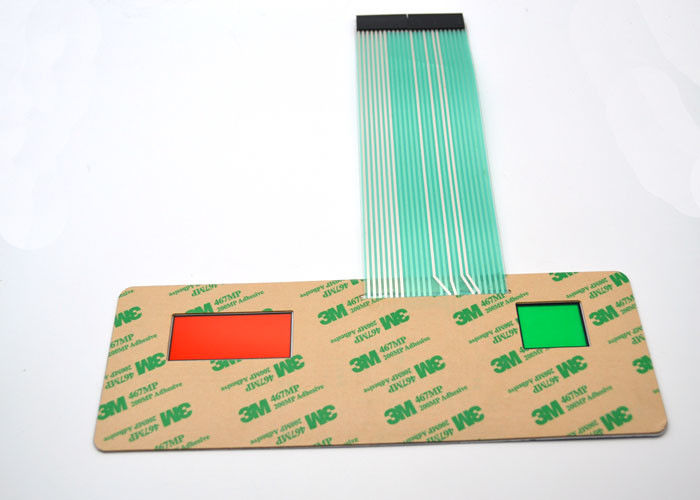

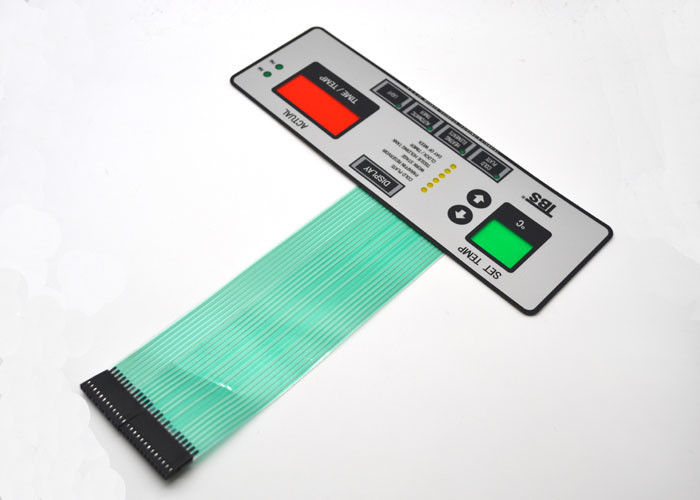

    Product show:

    Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window 0Non Tactile Flat Metal Dome Membrane Switch Company With Transparency Display Window 1
