Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable

Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable

    • Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable
    • Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable
    • Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable
  • Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable

    Product Details:

    Place of Origin: jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-134

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit,the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Surface: Flat And Nontactile Real Adhesive: 3M55230
    Application: Microwave Oven Brand Name: Zhongshan
    Quality: 100% Tested Thickness: 0.3mm

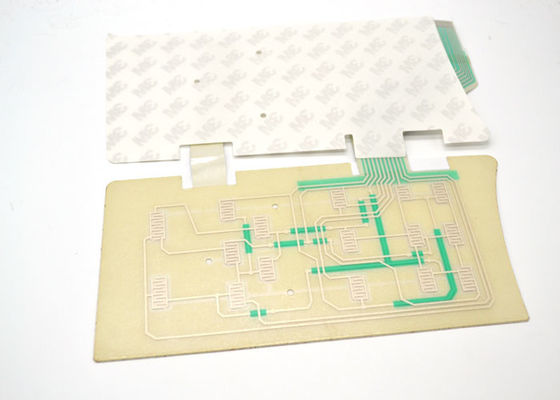

    Microwave oven membrane switch / ZS-134 / flat non-tactile and with a



    shielding layer for the protection function





    Product features:


    1. Light weight


    2. small volume


    3. long service life


    4. Dampproof, dustproof


    5. durable, seismic, lead wire resistance around thefracture well


    6. Vacuum molding touch type key, switching type connector, set LED as a whole, convenient



    installation



    Microwave oven membrane switch



    Overlay Materials: The most commonly used base materials for membrane panel are



                                  polyester and polycarbonate.



    Rear Adhesive: 3M 467MP, 3M 468MP, etc.



    Standard Tolerances: +/-.010 inch.



    Matching color: Pantone and RAL color matching system.



    Tail, pin and circuit layout: subject to customers detailed requests.



    Electrical Performances



    Wire Resistance



    0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



    Insulation Resistance



    >100MΩ 250V DC Working Voltage <50V DC



    Non-tactile Switch



    0.1-0.4mm Tactile Switch 0.4-1.0mm



    Working Life



    Working Life Working Temperature -40℃ ~ 70℃



    Working Humidity





    40℃,98%RH No influence Substrate Voltage 1500V DC



    Feedback Time



    10ms Tail Folding R>1,180



    Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable



    Shielding Layer Microwave Oven Membrane Keypad Flat Non Tactile Type Durable

    Quality Assurance


    With our attitude of precision and perfection, products are 100% quality tested and monitored

    carefully prior toshipment.State-of-the-art testing equipment.Efficient assembly and packing

    lines ISO 9001:2000 certified.All products compliant with RoHS and other regulations strict

    assembly, reliability and functional tests to ensure the total and effective quality control.





    Packaging & Delivery

    With a clear window and shielding circuit connector inside / ZS-70 / Flat tactile metal dome membrane switch
