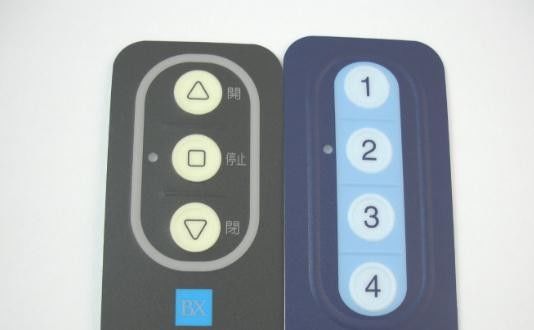

Push Button Backlit Membrane Switch Keypad Flexible Silk Printing Anti - Corrosion

Push Button Backlit Membrane Switch Keypad Flexible Silk Printing Anti - Corrosion

Push Button Backlit Membrane Switch Keypad Flexible Silk Printing Anti - Corrosion

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Zhongshan Membrane Switch
Certification: RoHS,ISO9001:2000
Model Number: ZS-11

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: paper carton( outer) and plastic bubble bag (inner).Or per your needs.Special requirement accepted.
Delivery Time: within one week after payment
Payment Terms: 30% deposit the 70% balance after shipment, or full payment after air transpotation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Material: PC/PET Size: 210mm*150mm
Application: Instrument Equipment Voltage Rating: 2-24V
Surface: Embossed Contact Current: 25~100 MA

Matte finish pc pet meterial membrane switch keypad with backlight /



ZS-10 / printing a phosphor powder on button





Service

  • Embossed keys and graphics
  • Metal dome switch keyboards and poly dome tactile membrane switch assemblies
  • Flat switch or non-tactile membrane switches
  • Environmentally sealed membrane keypad assembly
  • Etched copper on Kapton flex circuitry or printed silver circuit
  • EMI / ESD / RFI Shielding
  • Integrated windows, displays

Specification



Overlay Materials: The most commonly used base materials are polyester and polycarbonate.



Rear Adhesive: 3M 467MP, 3M 468MP, etc.



Standard Tolerances: +/-.010 inch.



Matching color: Pantone and RAL color matching system.



Tail, pin and circuit layout: subject to customers detailed requests.



Type of Switch:



• ebossed tactile and metal dome with phorspor powder





• Tactile with stainless steel domes



• Tactile with poly domes on the circuit





Wire Resistance



0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



Insulation Resistance



>100MΩ 250V DC Working Voltage <50V DC



Non-tactile Switch



0.1-0.4mm Tactile Switch 0.4-1.0mm



Working Life



Working Life Working Temperature -40℃ ~ 70℃



Working Humidity



40℃,98%RH No influence Substrate Voltage 1500V DC



Feedback Time



10ms Tail Folding R>1,18



Application area



Push Button Backlit Membrane Switch Keypad Flexible Silk Printing Anti - Corrosion





Company Introduction







Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



Membrane Switch is a professional membrane switch manufacturer in China. Our professional



operation can ensure you of quality products supported by mechanical, electronic and control



automation. Based on our good abilities in technology and production workmanship, our



products are strictly checked by our quality supervision department. For your added



assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced equipment to



manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



Europe, Australia and other areas worldwide.
