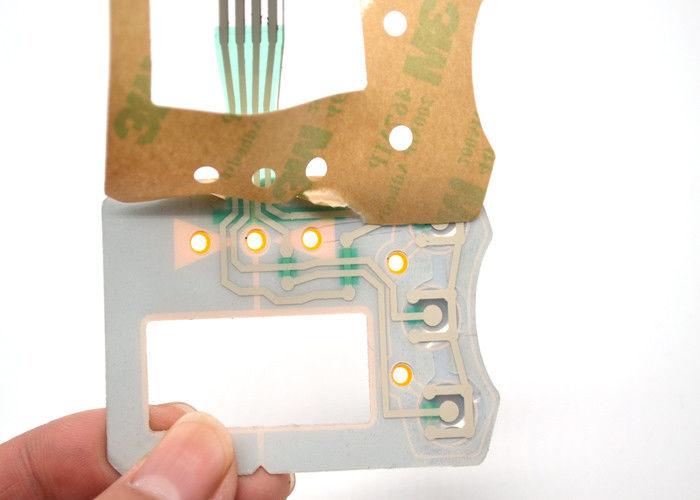

Long Life Cycle Metal Dome Membrane Switch With A Transparent Window

Long Life Cycle Metal Dome Membrane Switch With A Transparent Window

  • Long Life Cycle Metal Dome Membrane Switch With A Transparent Window
Long Life Cycle Metal Dome Membrane Switch With A Transparent Window
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: Metal Dome Membrane Switch
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail customer requirments
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Insulating Impedance: >100MΩ 250V DC Operation Temperature: -40 °c ~ + 80 °c
Humidity: + 40 °c 90 % ~ 95% 240 Hour Brand Name: Metal Dome Membrane Switch
Real Adhesive: 3M467MP Exported To: Canada
Place Of Origin: Jiangsu(China Mainland)
High Light:

key membrane switch

,

custom membrane switches

Long Life Cycle Metal Dome Membrane Switch With A Transparent Window




Metal Dome Membrane Switch Feature:

1. PC /PET as overlay (control panel)

2. Flat keys or tactile type

3. Embossed button with good tactile feel

4. Pre-assemble with or without metal domes

5. Water-resistant, dust-proof, gas-proof and scratch-resistant

6. Long life cycle



Electronic

Characteristic

<35V ( DC ) <100mA 1W
Life

Expectancy
flat type ≥ 500 million times, tactile type: ≥ 100 million times

Contact

Resistance

10Ω--500Ω (According the trace length and materials to confirm)
Operation

Temperature
-40 °c ~ + 80 °c

Insulating

Impedance

>100MΩ 250V DC
Stock

Temperature
-40 °c ~ + 85 °c

Resistance of

the wire

<1 Ω/cm width 1.27mm
Humidity
+ 40 °c 90 % ~ 95% 240 hour

Operation

Force

flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)



Switch

stroke
flat type 0.1-0.5mm, tactile type 0.6-1.5mm



What are
Metal Dome Membrane Switch?


The easiest way to understand what a membrane switch is, is to reference an all-time favorite

device-the microwave. The membrane switch on the microwave is the buttons—the human

interface layer—that communicates to the microwave that you’d like to reheat your food for

one minute.




Our Services



1. Quotaion: We can do OEM for you and welcome to send us your enquiries at any time. We

                    will reply you in 24 hours.

2. Artwork: After price confirmation, we will prepare to do artwork of the product for your

                    approval in 3 days.

3. Sample: Once you approve the artwork, then we will arrange to produce samples.

4. Production: After sample confirmation, it will take two weeks to finish order(sooner or

                       longer depneding on the order quanity).

5. Shipping: We can send products by Fed-ex, UPS, DHL, TNT or other shipping agent you

                     recommand and then will send you tracking number for your reference.

6. After-sale: Please let us know if any problems you meet with our product and we will

                     investigate to find the root cause or supoort you to solve it.
