Place of Origin: | Jiangsu (China mainland) |
Brand Name: | Zhongshan Membrane switch |
Certification: | ROHS ISO9001,2000 |
Model Number: | ZS-55 |
Minimum Order Quantity: | 100 pieces |
---|---|
Price: | negotiation |
Packaging Details: | Plastic bags with carton boxes or due to customer detail requirement |
Delivery Time: | within one after receiving payment |
Payment Terms: | 30% deposit, the 70% balance balance after shipment or full payment after air transporation |
Supply Ability: | 50000 pieces per week |
Surface: | Matte | Material: | Pet |
---|---|---|---|
Application: | Machine Tool | Contact Current: | 2-24V |
Real Adhesive: | 3M467 | Thickness: | 0.3mm |
High Light: | key membrane switch,custom membrane switches |

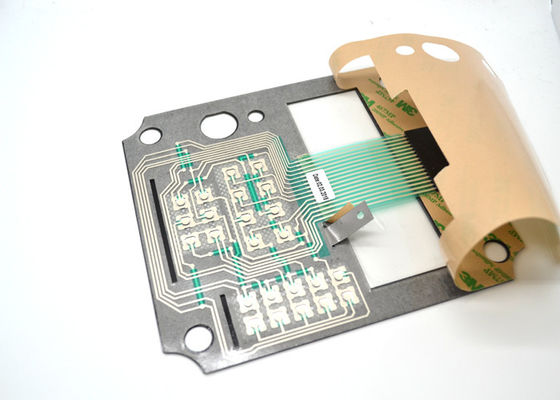

Thin Shape Metal Dome Membrane Switch With Matte Surface 0.3 Mm Thickness
Electrical Performances
Wire Resistance
|
0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
Insulation Resistance
|
>100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch
|
0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
Working Life
|
Working Life | Working Temperature | -40℃ ~ 70℃ |
Working Humidity
|
40℃,98%RH No influence | Substrate Voltage | 1500V DC |
Feedback Time
|
10ms | Tail Folding | R>1,180 |
Advantage
Membrane keyboard switch has the advantage of the whole flat, thin shape, quality, small,
dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel
design, and great freedom of choice of colors. Positive range of applications of desktop
computers, copiers, fax machines, toys, square computer, word processor and other areas of
expansion.
Packaging & Delivery
packaging details: inside,shockproof package, PE bag
outside,thickened carton, water-proof
delivery details: express,2-4 working days
air freight,5-7 working days
sea freight,25 working days
