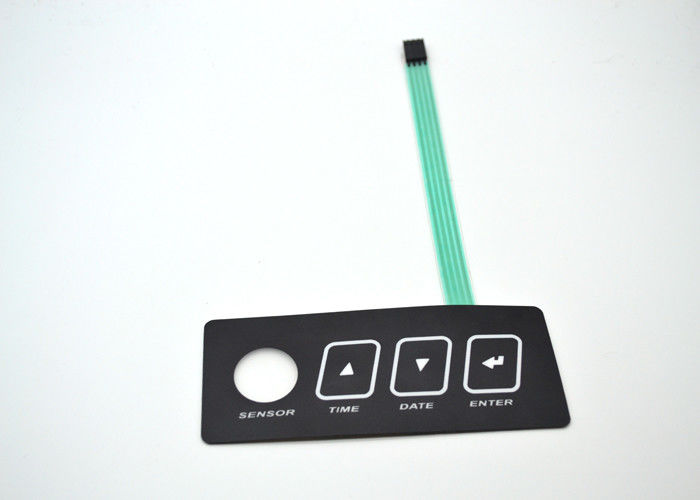

Embossed Metal Dome Membrane Switch With Glossy Surface Long Life Span

Embossed Metal Dome Membrane Switch With Glossy Surface Long Life Span

Embossed Metal Dome Membrane Switch With Glossy Surface Long Life Span

Product Details:

Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: Mechanical Keyboard Switches

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Name: Metal Dome Membrane Switch Connector: 2 Male Connector Cable
Type: Push Button Feasure: Embossed And Tactile
Back Adhesive: 3M467MP Surface: Glossy Surface

Embossed Metal Dome Membrane Switch With Glossy Surface Long Life Span



Metal Dome Membrane Switch Advantage:



1, Pressing life-span is over ten hundred thousand times.



2, have the characteristics of the function stabilizes.



3, handle reliably and good tactility feeling.



4, customised design



Metal Dome Membrane Switch Application



Are widely used in industrial, mechanical, electronic, medical, instruments, meters, household electrical appliances, and many other areas



Metal Dome Membrane Switch description





Physical Parameter



Membrane keypad --Non-tactile Membrane keypad--Tactile



Nominal actuation force



4-12 ounces 8-20 ounces



Actuation force tolerance



3 ounces 4 ounces



Rebound time



.006″ to .012″ .020″ to .030″



Switch life



10 million 10 million





Electric Parameter





Membrane keypad --Non-tactile Membrane keypad--Tactile



Contact rating



50VDC,100mA 50VDC,100mA



Contact bounce



≤20ms ≤20ms



Environment



Membrane keypad --Non-tactile Membrane keypad--Tactile



Storage Temperature



-40°C-+85°C -40°C-+85°C



Operation Temperature



-30°C-+60°C -30°C-+60°C





Metal Dome Membrane Switch ​ Description





Metal Dome Membrane Switch design





Material



PET(polyester),PC(polycarbonate)



Dimension



80*80mm



Color



Pantone and RALcolor matching system.



Rear Adhesive



3M467,3M468,3M9448 ect
Features



1)with metal dome,





2)Key:embossed or flat





3)screen printing





4)glossy surface or matte surface





6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)





Best service + best price+best quality











Our Services


1. 100% manufacturer



2. Best material selection,all our goods are made of best materials which have the SGS



    certificate from the best suppliers.
