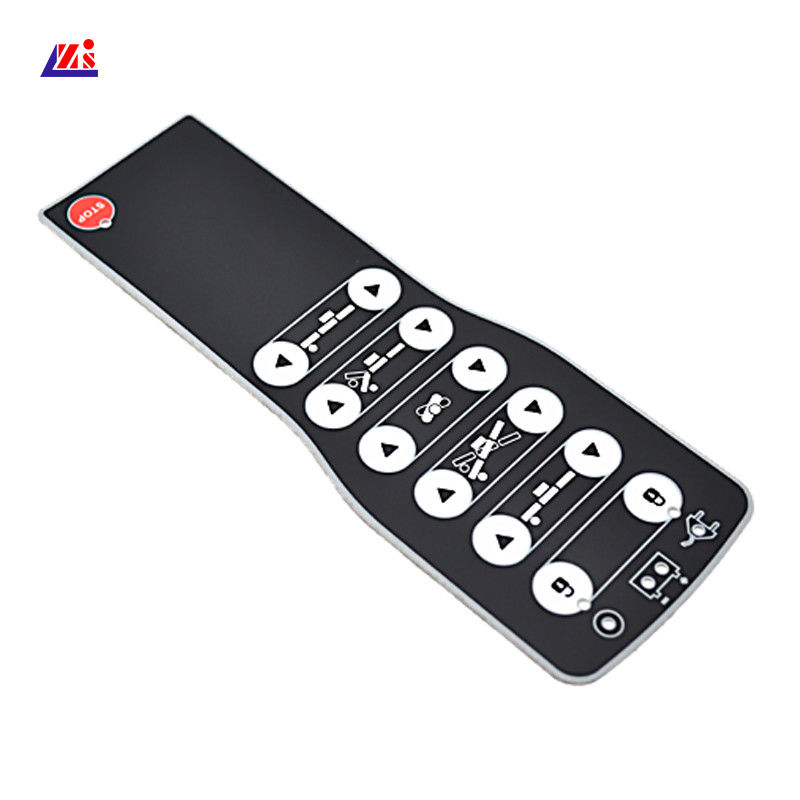

Flat Buttons Custom Embossed Membrane Switch Keypad

Flat Buttons Custom Embossed Membrane Switch Keypad

  • Flat Buttons Custom Embossed Membrane Switch Keypad
Flat Buttons Custom Embossed Membrane Switch Keypad
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-129
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before by air
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Connector: One Key Membrane Switch Back Adhesive: 3M467mp
Current Contact: 2-24V Brand Name: Zhongshan
Item Number: ZS-129 Thickness: 0.2mm
High Light:

Flat Buttons Membrane Switch Keypad

,

Embossed Membrane Switch Keypad

Durable One Key Membrane Switch / Flat Capacitive Touch Membrane Switch


One Key Membrane Switch Feature:


1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes


One Key Membrane Switch Specifications:



Operating voltage : 35V DC Life expectancy:

Flat type≥5,000,000 times
Tactile type≥1,000,000 times



Operating current:




100mA 1W Switch stroke: 0.1 to 0.6mm



Contact resistance:




< 100 Ohms Contact bounce: 5 to 30ms


Open circuit resistance:



≥ 10MΩ at 100V Actuation force tolerance: +/- 20 to 45g


Operating
temperature:



Flat/Metal dome:-20°c to +80°c Tactile ratio: FC > 40%


Storage temperature:



Flat/Metal dome:-40°cto +80°c Operating humidity: up to 95% RH



Company Introduction

Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing

Zhongshan Membrane Switch is a professional membrane switch manufacturer in

China. Our professional operation can ensure you of quality products supported by

mechanical, electronic and control automation. Based on our good abilities in

technology and production workmanship, our products are strictly checked by our

quality supervision department. For your added assurance, our plants are ISO

9001:2000-certified and our products are compliant with the RoHS Directive..

“Our 3,000sqm factory houses three production lines furnished with advanced

equipment to manufacture up to 6 million pieces monthly. We are serving

customers in Asia, the US, Europe, Australia and other areas worldwide.




Payment:

Before making samples, you pay mold and sample fees.

Before mass production, you pay the order in advance 30%, the balance before the delivery

Delivery time:

Sample: after receiving your confirming the mold and paying for the sample fee, within 3

working days to provide effect chart, drawing confirmation, within 7 working days to provide

samples.

Mass production: mass production in accordance with the product process and quantity,

normal payment confirmation within 7-10 working days.
