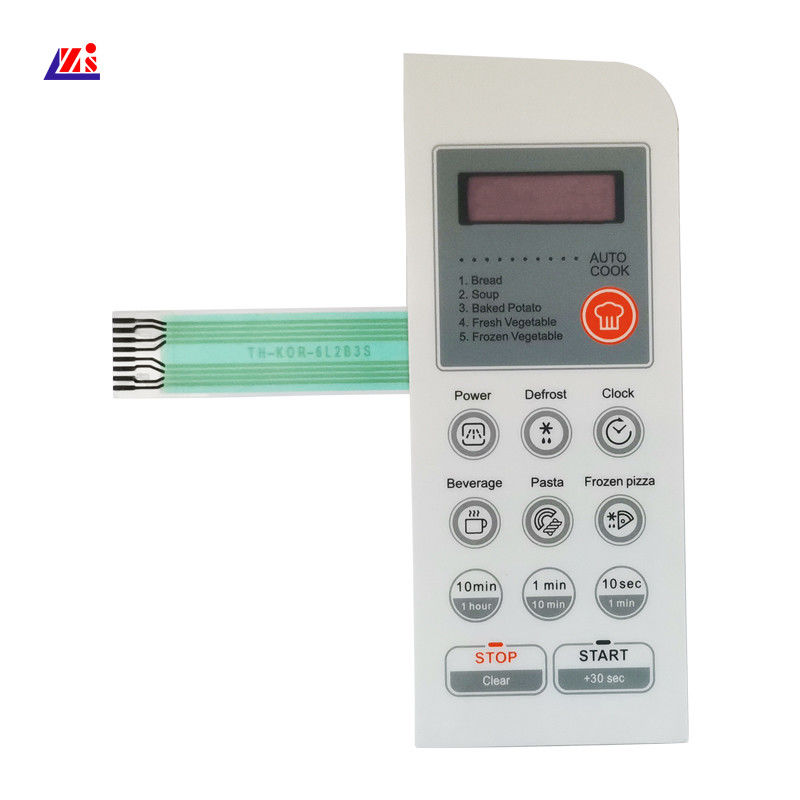

LCD Clear Window Push Button Metal Dome Membrane Switch

LCD Clear Window Push Button Metal Dome Membrane Switch

    • LCD Clear Window Push Button Metal Dome Membrane Switch
  • LCD Clear Window Push Button Metal Dome Membrane Switch

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-75

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after shipment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Name: Membrane Switch Panel Button Effect: No Embossing
    Type: LCD Clear Window Current Contact: 2-24V
    Real Adhesive: 3M467 Thickness: 0.3mm
    High Light:

    Push Button Dome Membrane Switch

    ,

    LCD Metal Dome Membrane Switch

    Push Button Membrane Switch Panel With LCD Clear Window No Embossing



    Membrane Switch Panel Features:



    1. Graphic Overlay – PET/PC is usually the material of choice due to its fantastic chemical resistance and flex property . UNIGREAT can do digital printing, screen-printing, or apply both methods to ensure you get the right colors, textures and finish your design requirements.
    2. Overlay Adhesive – This adhesive layer stick the graphic overlay to the top circuit layer, and is usually an acrylic adhesive. The material is same with the fourth layer. Only the thickness maybe different according to the actual situation.
    3. Top Circuit Layer – The material of this layer is specific. Is is a 0.1mm thickness thermostable PET film printed with conductive silver ink and also dielectric oil, which used for fastening metal domes.
    4. Circuit Spacer – This layer separates the top circuit from the bottom circuit so that switch remains normally break until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
    5. Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable PET film printed with conductive silver ink and also dielectric oil. This layer terminates as a flexible tail that serves as an interconnector to controller PCBs or other IC.
    6. Rear Adhesive – This adhesive layer bonds the entire membrane switch to the product surface, housing, or to a rigid support panel. UNIGREAT can use the proper adhesive type and thickness to bond your membrane switch to your equipment.



    Detailed Product Description
    Name: Membrane Switch Panel Button Effect: No Embossing
    Type: LCD Clear Window Current Contact: 2-24V
    Real Adhesive: 3M467 Thickness: 0.3mm



    Membrane Switch Panel Advantages



    1). Beautiful appearance ,rich and bright in color.

    2). Small size ,light weight ,good tactility.



    3). Low cost ,high lifespan.





    Quality Assurance





    With our attitude of precision and perfection, products are 100% quality tested and monitored



    carefully prior toshipment.State-of-the-art testing equipment.Efficient assembly and packing



    lines ISO 9001:2000 certified.All products compliant with RoHS and other regulations strict



    assembly, reliability and functional tests to ensure the total and effective quality control.





    Company Introduction



    Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



    Membrane Switch is a professional membrane switch manufacturer in China. Our professional



    operation can ensure you of quality products supported by mechanical, electronic and control



    automation. Based on our good abilities in technology and production workmanship, our



    products are strictly checked by our quality supervision department. For your added



    assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



    RoHS Directive..



    “Our 3,000sqm factory houses three production lines furnished with advanced equipment to



    manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



    Europe, Australia and other areas worldwide.
