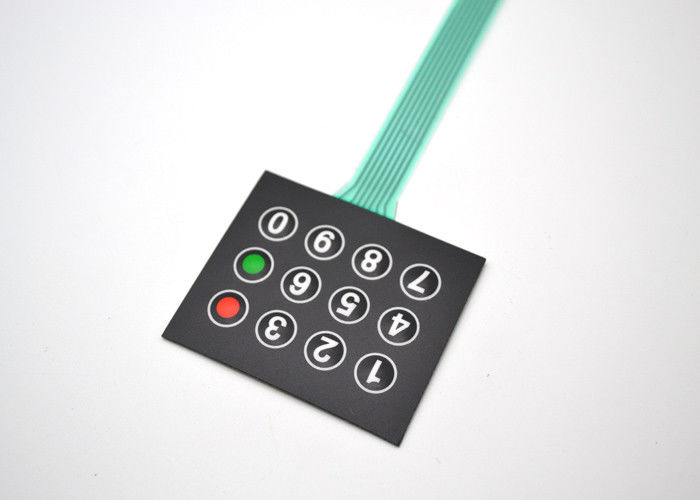

2kDVC Tactile Membrane Keyboard With 3M467 Rare Adhesive

2kDVC Tactile Membrane Keyboard With 3M467 Rare Adhesive

  • 2kDVC Tactile Membrane Keyboard With 3M467 Rare Adhesive
2kDVC Tactile Membrane Keyboard With 3M467 Rare Adhesive
Product Details:
Place of Origin: Jiangsu China(mainland)
Brand Name: Zhongshan Membrane Switch
Certification: ROHS ISO9001,2000
Model Number: ZS-47
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer requirement
Delivery Time: within one week after receiving payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Contact Resistance:: 0.5 ~ 5Ω Substrate Voltage:: 2kDVC
Color: Black Blue Gray Red Diemension: 100mm*70mm
Application: Instrument
High Light:

3M467 Rare Adhesive Tactile Membrane Keyboard

,

2kDVC Tactile Membrane Keyboard

,

Non Metal Dome Membrane Keyboard

Embossed tactile Membrane switch non-metal dome / ZS-47



100mm*70mm / back adhesive 3M467





Packaging & Delivery


Packaging Details:



Plastic bags with carton boxes or as customr requirements



Delivery Time:



within 10 work days or due to customer`s detailed requirements




Product Description










Technical Property

Working Voltage

≤50VDC

Working Current/Power

≤100mA

Contact Resistance

0.5~10 Ω

Insulating Impedance

≥100m Ω




Circuit Resistance

10Ω-500Ω( depended on size and layout)

The base pressure

1500VDC
Life

flat type≥1 million times

Operation Force

15~750gf

Stroke Switch

0.1~0.4mm (no

touching);0.4~1.0mm(Tactile)

Recoil time

≤6ms

Tail bending performance

≤180°



Environmental parameters
Operation Temperature

-20°~+70°

Stock Temperature

-40°~+85°

Working Humidity

95%±5%






Our Services

1. Assemblies integrated with PCB/FPC/RUBBER KEY/METAL BACKER/PLASTIC HOUSING.


2. Custom design highly engineered for membrane switch, overlay.



2. Membrane switch exporter and manufactureing



4. Silk screen printing, gradient printing, off-set and digital printing



5. Laser cutting



6. 100% inspected and function tested in-house before shiment for zero-defect quality



    assurance
