Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive

Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive

    • Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive
    • Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive
    • Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive
    • Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive
  • Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive

    Product Details:

    Place of Origin: Jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-97

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order paymepnt
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Application: Sports Equipment Real Adhesive: 3M467MP
    Circuit: FPC Circuit Brand Name: Zhongshan
    Diemension: 105*25mm Current Contact: 2-24V
    Thickness: 0.2mm

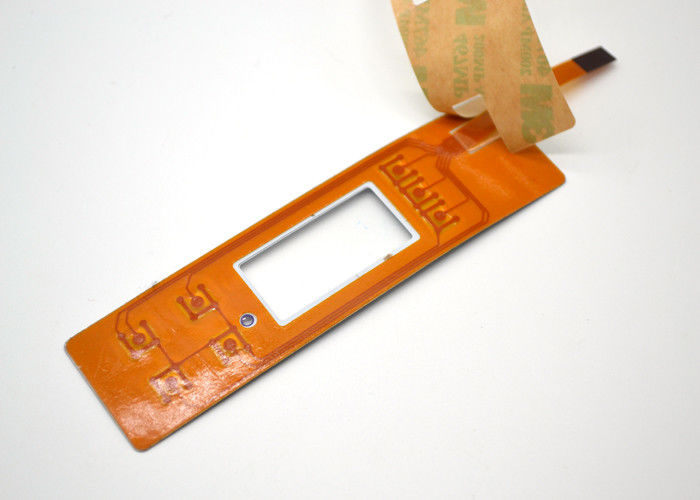

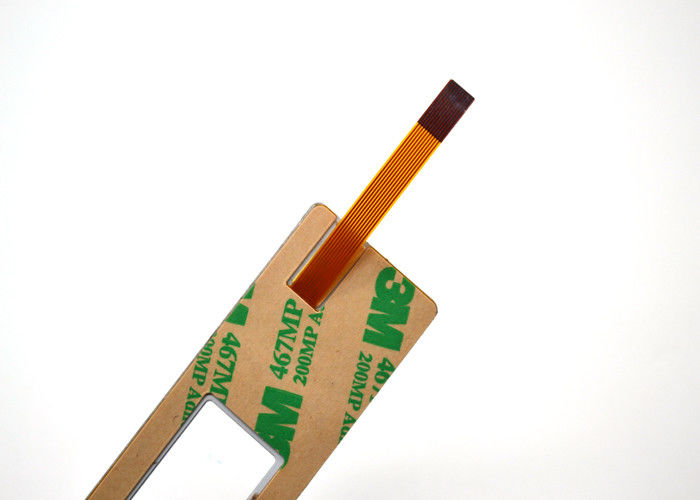

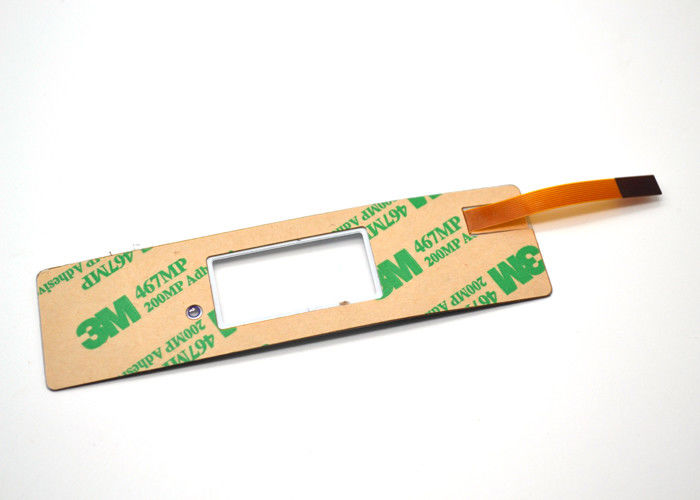

    Tactile FPC membrane switch keypad with clear window / ZS-97 / With



    back 3M467 real adhesive





    Product basic specification



    A. Material : Rohs compliant material ,for example ,Autotype ,3M ,Nicomatic.



    B. Dimension : According to customer 's drawing or design ,OEM design.



    C. Color: Pantone and Ral color match system.



    D. constrution : various types to meet customer 's demand.





    Technical Parameters



    1. Electrical



    Maximum Circuit Rating: 35V(DC),100mA,1W



    Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)



    Insulation Resistance: 100MΩ 100V



    Dielectric: 250 Vrms (50~60Hz 1min)



    Contact Bounce: < 5ms



    Life: Flat: ≥ 5million times



    Tactile: ≥ 1 million times



    Duraswitch: ≥ 10million times



    2. Mechanical



    Actuation Force: Flat: 57~284g(2~10oz)



    Tactile: 170~397g(6~14oz)



    Switch Height: Flat: 0.1~0.5mm



    Tactile: 0.6~1.5mm



    3. Environment



    Operation Temperature: -40~+80 Degree Centigrade



    Storage Temperature: -40~+80 Degree Centigrade





    The main properties of custom design electronic membrane keypad





    1. PC /PET as overlay (control panel)


    2. Flat keys or tactile type


    3. Embossed button with good tactile feel


    4. Pre-assemble with or without metal domes


    5. Water-resistant, dust-proof, gas-proof and scratch-resistant


    6. Long life cycle.



    Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive

    Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive





    The structure of FPC Membrane Switch





    customized professional manufacturer FPC membrane keyboard switch / ZS-65 / LED display on the surface
