Keypad Button Material: | PC/PET | Application: | Remote Controller |
---|---|---|---|
Adhesive: | 3M467/468 | Color: | Pantone Or RAL |
Connector: | 2.54mm/1mm Female Connector | Contact Current: | 25~100 MA |
Printing: | Screen Printing | Temperature:: | 40~+70 |
Voltage Rating: | 2-24V | ||
High Light: | membrane type keyboard,flexible membrane switch |

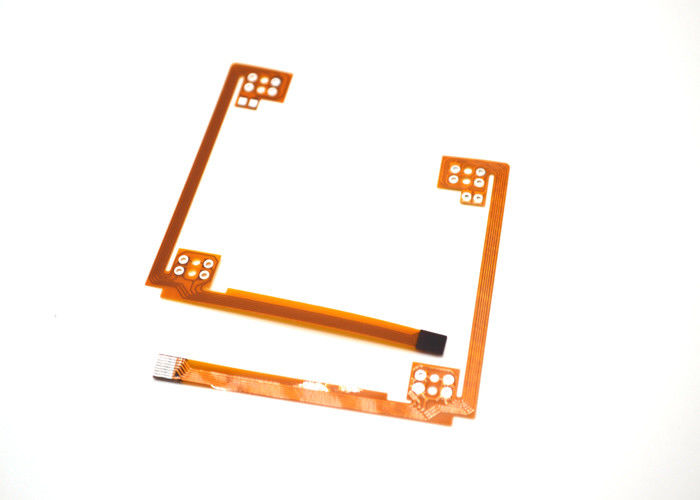

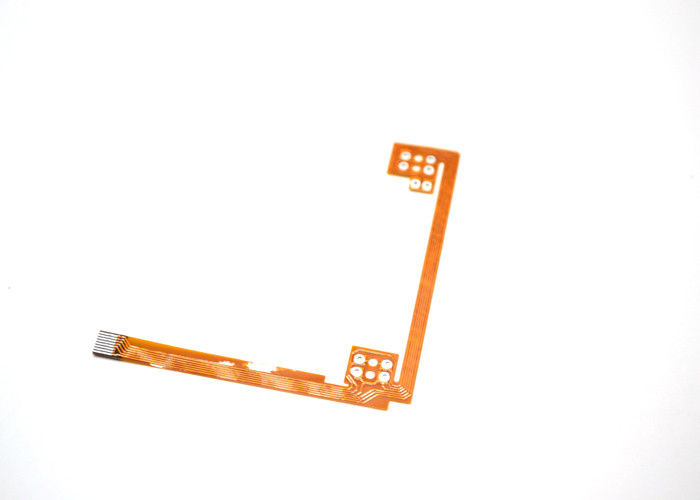

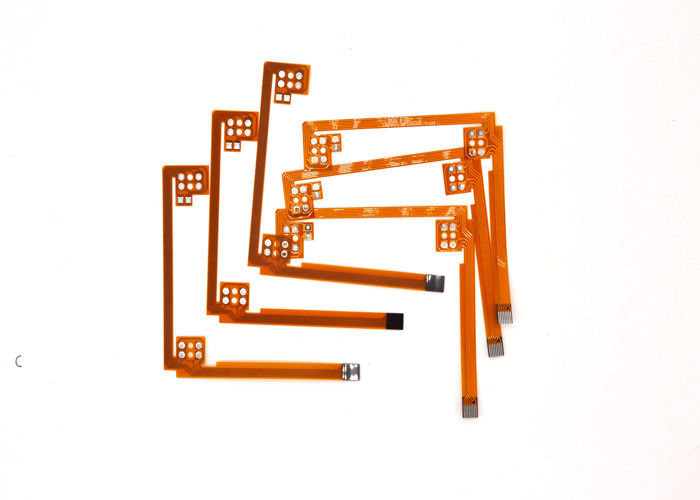

FPC Circuit Membrane Switch / ZS-05, 58mm*58mm / with metal
dome,export to Germany
The switch adopts the FPC flexible circuit layer. The wiring is high precision, low resistance
and longlifetime. The closest pitch of pinout can reach 0.5mm.
The switches are mainly used in Remote controller machines as function keypad. Because it
has good tactile and function well. Selecting Autotype F150 matte PET to make the overlay
appears elegant and colorful. Also, keypad can be customized based on customer’s design
such as button icons, colors etc. Besides, the product including electrostatic shielding protect
the function from static.
1, operating voltage: |
≤ 35VDC |
2, working current: |
≤ 100mA |
3, Contact resistance: |
0.5 ~ 5Ω |
4, Insulation resistance: |
≥ 100MΩ (100VDC) |
5.Spring Time |
≤ 6ms |
6.Switch Stroke |
Flat 0.1~0.5mm |
Tactile 0.6~1.5mm | |
7.Operation Force
|
Flat 57g~286g |
Tactile 170g~398g | |
8.Operation Temperature |
-20℃~ +80 ℃ |
9.Storage Temperature |
-40 ℃ ~ +85 ℃ temperature of 95% ± 5% |
10, atmospheric pressure: |
86 ~ 106kDa |
11.Life expectancy
|
Flat 500Million-1000Million |
Tactle 100million |
