Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive

Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive

    • Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive
    • Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive
    • Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive
    • Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive
  • Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive

    Product Details:

    Place of Origin: jiangsu(China mainland)
    Brand Name: Zhongshan
    Certification: ROHSISO9001,2000
    Model Number: ZS-127

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: negotiation
    Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
    Delivery Time: within one week after receiving order payment
    Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
    Supply Ability: 50000 pieces per week
    Contact Now
    Detailed Product Description
    Type: LED Membrane Switch Application: Printer
    Quality: 100% Tested Current Contact: 2-24V
    Real Adhesive: 3M55230 Window: A Clear Display Window
    High Light:

    standard membrane keypad

    ,

    backlit membrane switch

    3M55230 back adhesive metal dome membrane switch / ZS-127 / LED



    display on the top overlay





    Product feasure



    Artwork/Drawings Format



    CorelDraw, Adobe Illustrator AI, AutoCAD



    Tail/Pin/Circuit Layout



    Based on customers detailed requests



    Antistatic Shielding



    Can be added For Protection



    Connector



    Female/Male Connectors or ZIF Connector



    Rear Adhesive:



    3M467, 3M55230



    Cables



    Extension of Circuit and Connect with your Device



    Printing Method



    Silk Screen Printing/Digital printing



    Windows/Lens Coating



    Can be added
    Certificate ISO9001 RoHS 2000





    What is Membrane Switch?



    The membrane switch is a momentary switching device that is manufactured by using a



    series of flexible layers of polymer films and adhesives. The top layer, called a graphic



    overlay, is manufactured by printing on the down surface of transparent polyester or



    polycarbonate film. Membrane switches can be constructed of multiple circuit layers, and



    more optimized graphic design features, such as domed key embossing. Designs that are



    more complex require more material layers for proper construction and reliable operation.



    Membrane switches, when combined with components such as a tactile dome, graphic



    overlay, or integrated LEDs or resistors can provide the designer with virtually limitless



    capabilities to create the ideal custom user interface for their products.

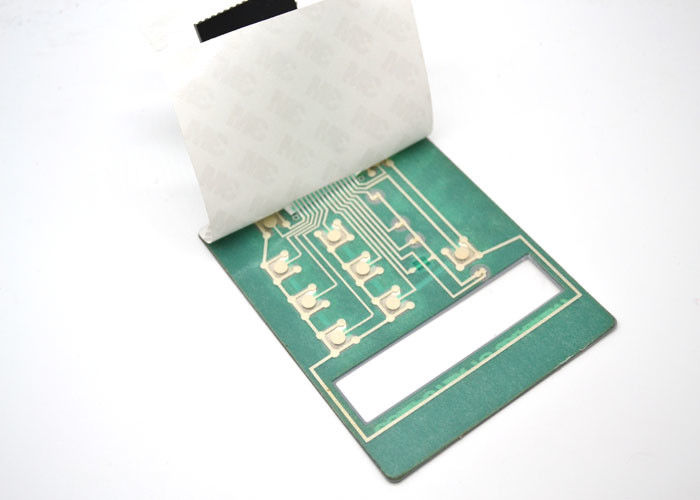

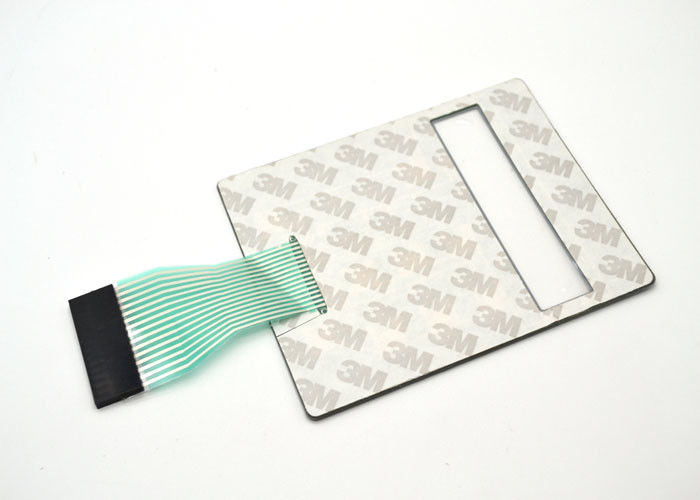

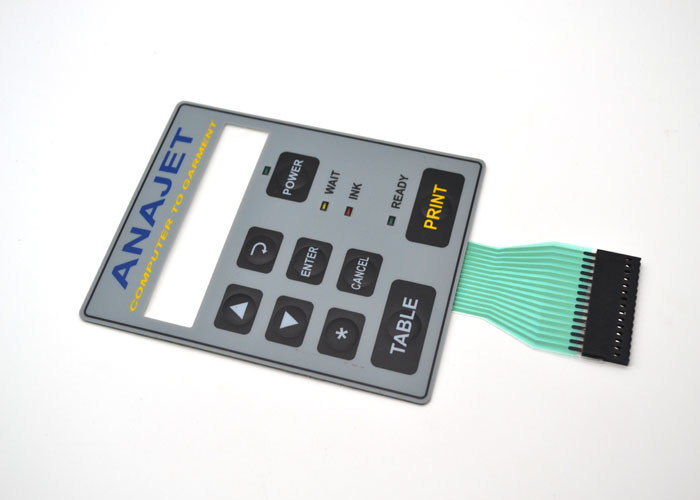

    Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive





    Dustproof LED Display Metal Dome Membrane Switch With 3M55230 Back AdhesiveDustproof LED Display Metal Dome Membrane Switch With 3M55230 Back Adhesive



    Our Engineers: At Your Service



    Come to us at the start of your project, and our experienced -based engineers will work



    alongside you to design customized membrane switches to the exact specifications of your



    applications. We design and manufacture all of our membrane switches in the CHINA for



    optimal quality and timely service.



    Our engineers have the experience and know-how to handle even the biggest challenges –



    such as fitting all necessary switch features for optimal functionality in the space-constrained



    layouts of complex circuit designs.



    A full range of other in-house services, including color matching and digital printing, enables



    you to conform to your customers’ brand standards and provide the aesthetics to create the



    perfect, intuitive user interface.
