LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button

LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button

    • LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button
    • LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button
    • LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button
    • LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button
  • LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button

    Product Details:

    Place of Origin: Jiangsu China(mainland)
    Brand Name: Zhongshan Membrane Switch
    Certification: ISO9001:2000
    Model Number: ZS-23

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pieces
    Price: negotiation
    Packaging Details: seal plastic bags with carton boxes or due to customer requirement
    Delivery Time: within one week after payment
    Payment Terms: 30% deposit, the 70% balance after shipment
    Supply Ability: 50000pieces per week
    Contact Now
    Detailed Product Description
    Application: Door Control System Real Adhesive: 3M467MP
    Color: Pantone Certification: ISO9001:2000
    Type: LED Tactle Size: 80mm*56mm

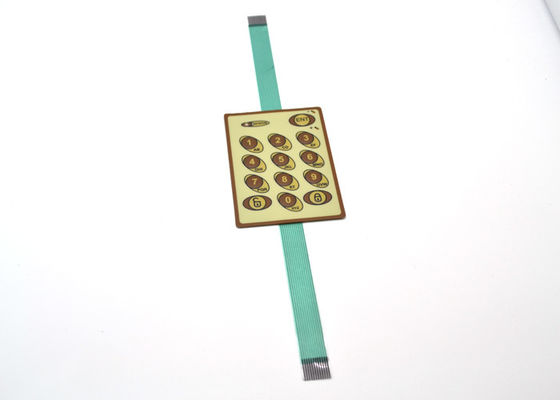

    ZS-23 / LED metal dome tactile switch with 2 circuit / embossed tactile



    surface button.





    What Is A Membrane Switch?




    Membrane switches are generally made from five different layers. This includes membrane,



    graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the



    user to control the machine. It can also include a flexible circuit for less expensive



    alternatives. Another layer will contain the printed circuit which allows a signal to be



    transmitted. The ink that is used for the printing on the circuit is generally made up of a



    variety of metals. This helps for the signal to be conductive for turning on and off. Membrane



    switches allow for communication to take place in electronic devices. Membrane switches are



    a piece of equipment that can be highly sophisticated or rather simple by design.





    LED Metal Dome Membrane Switch With 2 Circuit / Embossed Tactile Surface Button





    Features:





    1. Material: PET/PC with different thickness and finish


    2. Button effect: embossing + metal domes respectively for good tactility and perfect



    feedbacks.
                              Also we can offer the other options: a. embossing, no metal domes;


                                                                                   b. metal domes, no embossing


                                                                                   c. no embossing, no metal domes (flat type)


     3. LEDs can be embedded;


     4. LCD clear window can be made.


     5. Colors for graphics are matched with Pantone No., Bi-color leds are also available.







    Packaging & Delivery







    packaging details: inside,shockproof package, PE bag



    outside,thickened carton, water-proof





    delivery details: express,2-4 working days





    air freight,5-7 working days





    sea freight,25 working days
