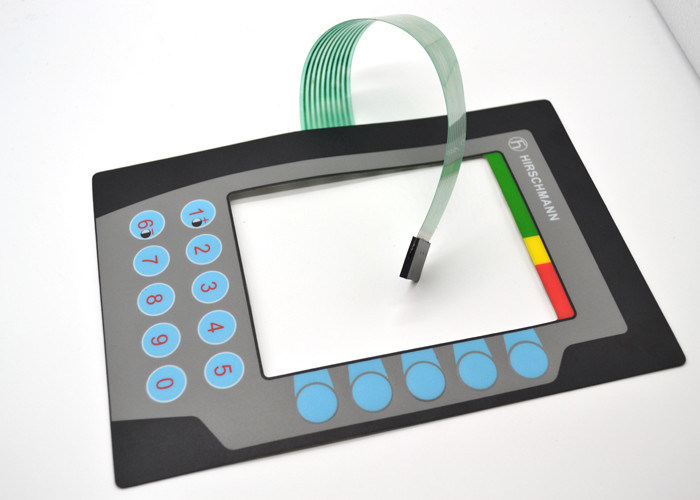

Eco Friendly Push Button Membrane Switch For Smart Home Appliance / Medical Equipment

Eco Friendly Push Button Membrane Switch For Smart Home Appliance / Medical Equipment

Eco Friendly Push Button Membrane Switch For Smart Home Appliance / Medical Equipment

Product Details:

Place of Origin: Jiangsu China(mainland)
Brand Name: Zhoongshan M
Certification: ROHS ISO 9001,2000
Model Number: zs-58

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: negoiation
Packaging Details: Plastic bag with carton boxes or due to custtomer detail requirements
Delivery Time: within one week after payment
Payment Terms: 30% deposit the 70% balance after shipment, or full payment after air transpotation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Name: Push Button Membrane Switch Tthickness: 0.3mm
Feature: Dust Proof / Gases Proof Real Adhesive: 3M467
Circuit: 1 Mm Circuit Pitch Application: Remote Controller

Eco Friendly Push Button Membrane Switch For Smart Home Appliance / Medical Equipment



Push Button Membrane Switch Application



Push Button Membrane Switch because of its fantastic Electrical Properties, Mechanical Properties and Environmental Properties, it is widely used in Smart Home Appliances, Office Equipment, Medical Equipment, Automobile and Industrial Equipment.





Other Features
Artwork/Drawings Format CorelDraw, Adobe Illustrator AI, AutoCAD
Tail/Pin/Circuit Layout Based on customers detailed requests
Antistatic Shielding Can be added For Protection
Connector Female/Male Connectors or ZIF Connector
Rear Adhesive: 3M467, 3M468, 3M9080 etc…
Cables Extension of Circuit and Connect with your Device
Printing Method Silk Screen Printing/Digital printing
Windows/Lens Coating Can be added
Certificate ISO9001 RoHS CE SGS






1. Electrical Properties:


1, operating voltage:

≤ 50VDC

2, working current:

≤ 100mA

3, Contact resistance:

0.5 ~ 5Ω

4, Insulation resistance

≥ 100MΩ (100VDC)

5, substrate voltage:

2kDVC

6, spring time:

≤ 6ms
7, loop resistance:

60Ω

8, insulation ink voltage:

100VDC

2. Mechanical Properties :


1, reliability, service life:

> 1 million times

2, closed displacement:

0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm

3, health standard for power:

300g Power

4, Silver migration:

In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

5, Silver online

no oxidation, no impurities
6, Silver width
≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4
width



7, pin spacing standard

2.54mm

8, lead anti-curvature, with d

10mm steel rod line pressure roller 80 constantly.

3. environmental performance :


1, operating temperature:

-40 ℃ ~ +80 ℃

2, storage temperature:

-40 ℃ ~ +85 ℃ temperature of 95% ± 5%

3, atmospheric pressure:

86 ~ 106kDa



FAQ



Q: Are you a manufacturer or trading agent?

A: We are a manufacturer and we have a professional overseas sales department to serve our clients all over the world.



Q: How long have you engaged in membrane switch manufacturing?

A: We have engaged in this field for over 15 years.



Q: Do you have your own desing team?

A: Yes, we have and we can design based on clients requirement or do proof based on clients original drawing.



Q: What software/ format can you use for drawing?

A: Coreldraw, Illustrator, AutoCAD (.cdr , .pdf .dwg)



Q: What's your MOQ for order?

A: Generally speaking, we require 25pcs for MOQ or USD200 for equivalent.



Q: What's the lead time for Proof, Sample and Mass Production?

A: 3 working days for proof, two week for sample, two week for order (or depending on order QTY)



Q: What's your payment terms?

A: T/T, Paypal, Western Union, L/C etc.



Q: What's your delivery terms?

A: EXW, FOB, CIF etc.



Any other questions, please contact us for more details. Thanks for your attention!
