Small Size Metal Dome With Membrane Paper For Micro Electronic Products

Small Size Metal Dome With Membrane Paper For Micro Electronic Products

  • Small Size Metal Dome With Membrane Paper For Micro Electronic Products
  • Small Size Metal Dome With Membrane Paper For Micro Electronic Products
  • Small Size Metal Dome With Membrane Paper For Micro Electronic Products
  • Small Size Metal Dome With Membrane Paper For Micro Electronic Products
Small Size Metal Dome With Membrane Paper For Micro Electronic Products
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Zhongshan Membrane Switch
Certification: RoHS,ISO9001:2000
Model Number: ZS-08
Payment & Shipping Terms:
Minimum Order Quantity: 5000pieces
Price: negotiation
Packaging Details: Seal plastic bags in carton boses
Delivery Time: within one week after payment
Payment Terms: 30%deposit,the 70%balance after shipment or full payment after air transportation
Supply Ability: 500000pieces
Contact Now
Detailed Product Description
Surface: SUS301 ,PET Active Force: 0.3~3N
Application: Micro-Electronic Machine Voltage Rating: 2-24V
Lifecycle: >1mil.(non-tactile) Color: Silver
High Light:

membrane switch keypad

,

membrane switch panel

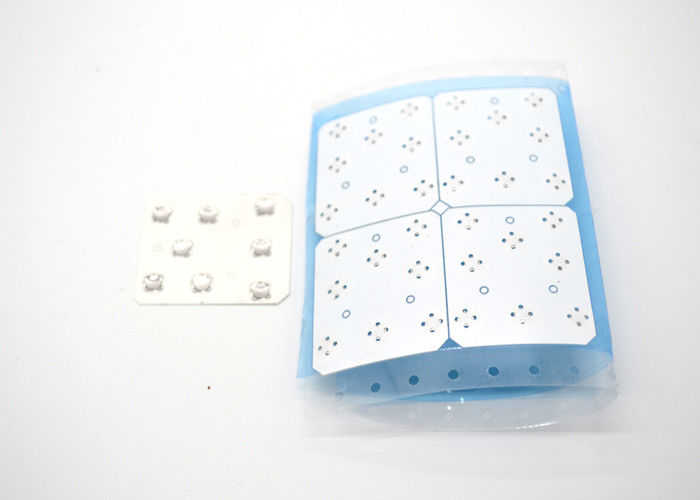

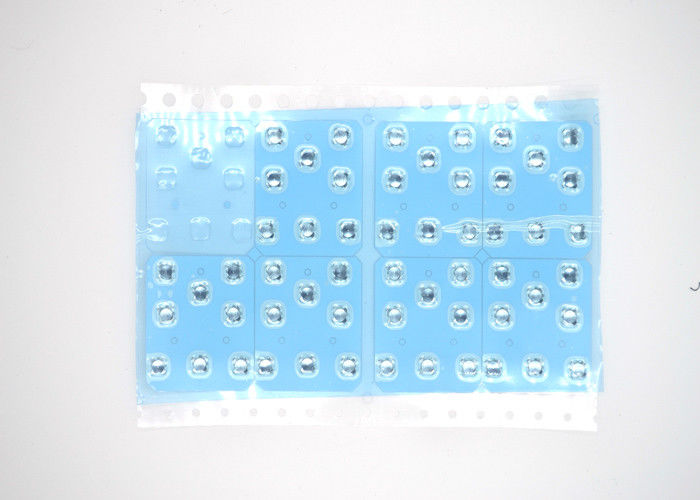

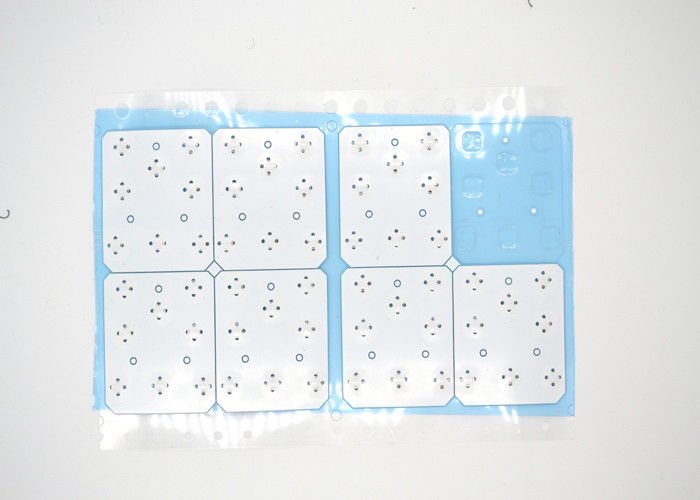

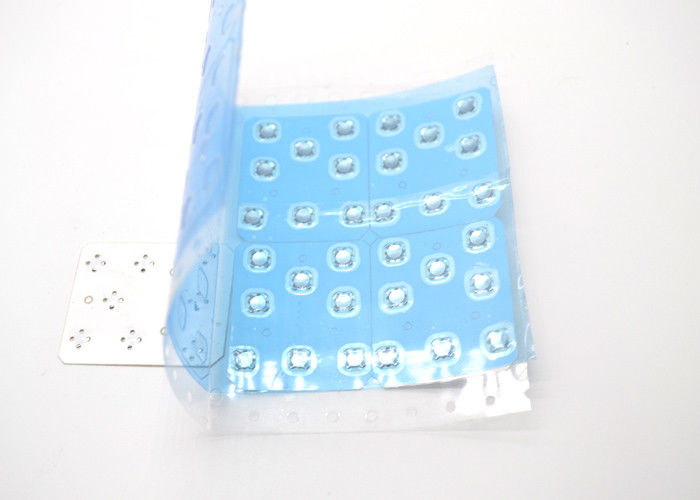

Metal dome with membrane paper / ZS-08 / Used for Micro-Electronic



product / Small size metal dome on the plastic paper





This is a small metal dome glue on the Micro-Electronic product, for example, the old mobile



phone,or small caculator.It is mostly exported to America. The characteristtic of this kind



face-plate is small in size, light weight,reliable in structure.





Specification:





1. Overlay Materials:The most commonly used base materials are polyester(PET) and



polycarbonate(PC).



2. Rear Adhesive:3M467MP, .Rear Adhesive 3M468MP,etc.



3. Matching color:Pantone and RALcolor matching system.



4. Gloss,semi-gloss or matte



5. Standard Tolerances:+/- 0.10inch(+/-0.25mm)



Small Size Metal Dome With Membrane Paper For Micro Electronic Products 0

Small Size Metal Dome With Membrane Paper For Micro Electronic Products 1









Perfformance





a.Physical Parameter


   active force: 0.3~3N


   lifecycle : >1mil.(non-tactile)



b.Electric Parameter


   resistance: <1Ω/cm


   voltage rating: 2~24V


   voltage insulation:1500V


   voltage endurance:250V(60Hz/min)


   insulation resistance:500VDC500MΩ
