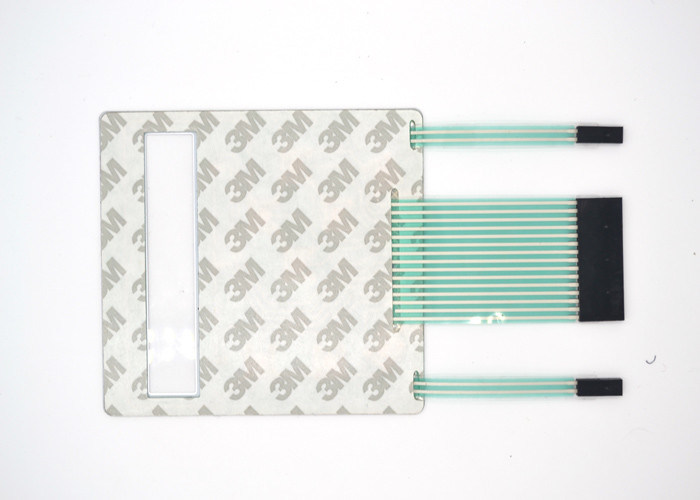

Transparent window led tactile embossed buttons / ZS-09 / with printing
6 colors on the surface / with a display window
This is embossed tactile with LED Membrane Switch, it prints 5 colors on the surface overlay
with a disply windouw.Mostly, it exports to America, and used for printer controller
Structure
The main properties of custom design electronic membrane switch
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.
Technical Specification
| Environmental | Operating Temperature | -20° to 65° C (-4° to 149° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) | |
| Seals | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
|
Special sealing options are available for wet environments.
|
||
| Mechanical | Travel | .007 inches to .015 inches |
| Operating Force | 4oz to 8oz | |
| Electrical | Operating Voltage | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |
| Circuitry | X-Y matrix or one side common | |
