Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment

Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment

  • Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment
  • Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment
Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Zhongshan Membrane Switch
Certification: RoHS,ISO9001:2000
Model Number: ZS-17
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: paper carton( outer) and plastic bubble bag (inner).Or per your needs.Special requirement accepted.
Delivery Time: with 7 working days after payment
Payment Terms: 30% deposit the 70% balance after shipment, or full payment after air transpotation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Life Expectancy: Tactle 100million Spring Time: ≤ 6ms
Operating Voltage:: ≤ 35VDC Switch Stroke: Flat 0.1~0.5mm
Size: 120mm*55mm Material: PET
High Light:

push button membrane switch

,

key membrane switch

Printing 2 colors on overlay button / ZS-17 Application on Sports Equipment / such as Running machines



Waterproof Metal Dome Membrane switch Keyboard with Foil





1, operating voltage:



≤ 35VDC



2, working current:



≤ 100mA



3, Contact resistance:



0.5 ~ 5Ω



4, Insulation resistance:



≥ 100MΩ (100VDC)



5.Spring Time



≤ 6ms



6.Switch Stroke



Flat 0.1~0.5mm
Tactile 0.6~1.5mm



7.Operation Force



Flat 57g~286g
Tactile 170g~398g



8.Operation Temperature



-20℃~ +80 ℃



9.Storage Temperature



-40 ℃ ~ +85 ℃ temperature of 95% ± 5%



10, atmospheric pressure:



86 ~ 106kDa





11.Life expectancy





Flat 500Million-1000Million





Tactle 100million

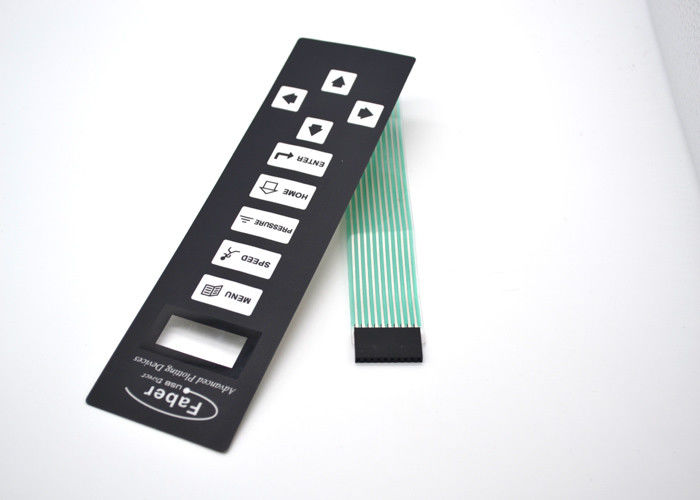

Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment 0

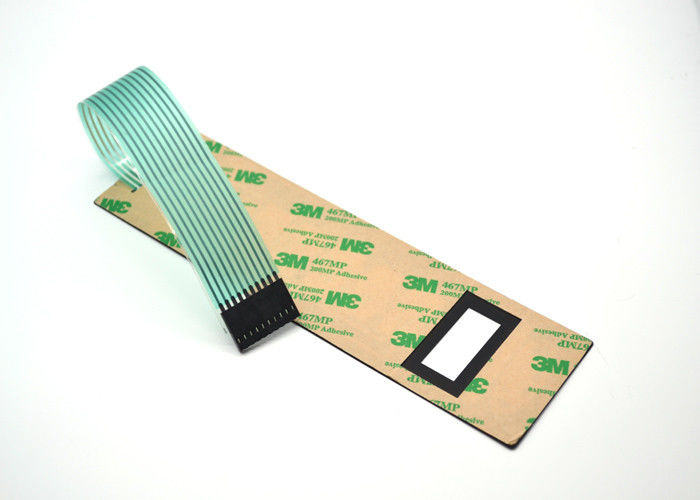

Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment 1Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment 2



Features:





1. Material: PET/PC with different thickness and finish


2. Button effect: embossing + metal domes respectively for good tactility and perfect



    feedbacks.


Also we can offer the other options: a. embossing, no metal domes;


b. metal domes, no embossing


c. no embossing, no metal domes (flat type)


3. LEDs can be embedded;


4. LCD clear window can be made.


5. Colors for graphics are matched with Pantone No., Bi-color leds are also available.



Packaging

Waterproof Membrane Panel Switch With Multi Buttons For Sports Equipment 3
