Non Tactile Flat Membrane Keyboard Panel For Core Dry On Rapid Drying System
Product Details:
Place of Origin: Jiangsu (China mainland)
Brand Name: Zhongshan Membrane Switch
Certification: ROHS ISO9001,2000
Model Number: ZS-38
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirement
Delivery Time: within 7 days after payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Operating Voltage: 35V DC Contact Resistance: < 100 Ohms
Surface: Flat Non-tactile Thickness: 0.3mm
Function: Shelding Power Material: Pet
High Light:

sealed membrane keypad

,

microwave oven membrane keypad

With a protection film on the flat non-tactile surface / ZS-38 / Application for core dry on



Rapid Drying System

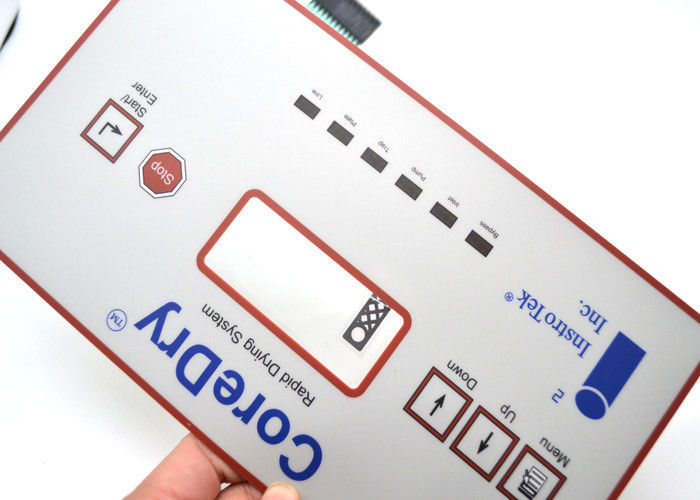

Membrane Switch Technology Picture:



Non Tactile Flat Membrane Keyboard Panel For Core Dry On Rapid Drying System 0



Strength:





1, Pressing life-span is over ten hundred thousand times.



2, have the characteristics of the function stabilizes.



3, handle reliably and good tactility feeling.



4, customised design





Technology





Operating voltage: 35V DC


Operating current: 100mA 1W


Contact resistance: < 100 Ohms


Open circuit resistance: ≥ 10MΩ at 100V



Operating temperature: Flat/Metal dome:-20°c to +80°c



Storage temperature: Flat/Metal dome:-40°cto +80°c



Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times



Switch stroke: 0.1 to 0.6mm


Contact bounce: 5 to 30ms


Actuation force tolerance: +/- 20 to 45g


Tactile ratio: FC > 40%


Operating humidity: up to 95% RH


Female, male connector, solder pins and heat seal connectors are available





Packaging & Delivery





Packaging: PE bag, Carton.



Delivery Detail: two weeks after order confirmation

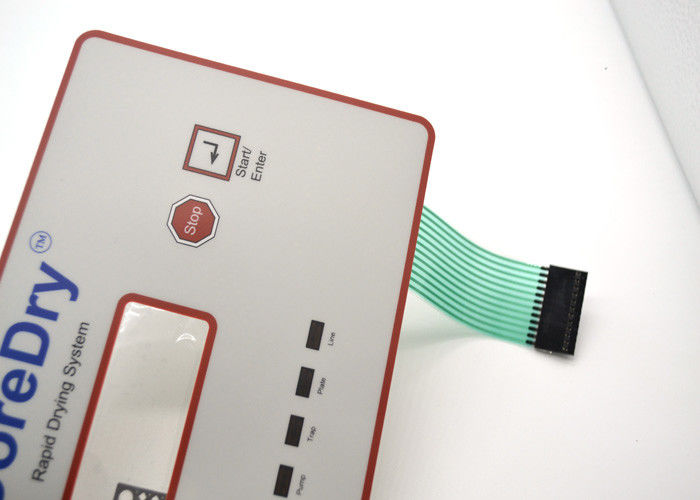

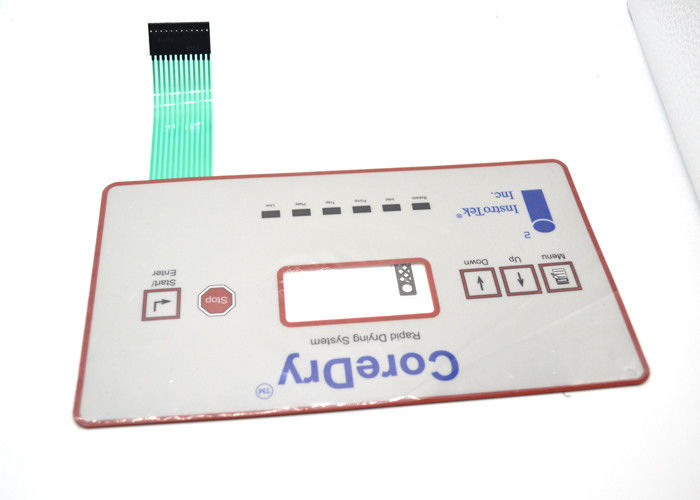

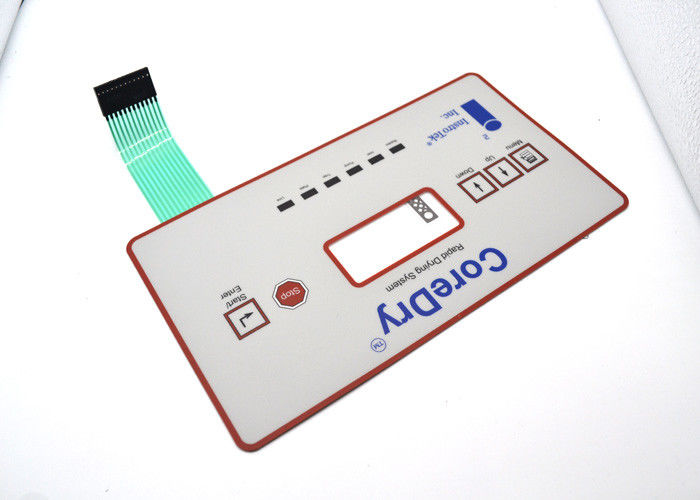

Non Tactile Flat Membrane Keyboard Panel For Core Dry On Rapid Drying System 1Non Tactile Flat Membrane Keyboard Panel For Core Dry On Rapid Drying System 2Non Tactile Flat Membrane Keyboard Panel For Core Dry On Rapid Drying System 3
