Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO

Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO

  • Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO
  • Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO
Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO
Product Details:
Place of Origin: Jiangsu (China mainlland)
Brand Name: Zhongshan Membrane switch
Certification: ROHS ISO9001,2000
Model Number: ZS-43
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer requirement
Delivery Time: within one week after payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air transportation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Circuit Grade: 35V(DC),100mA,1 W Contact Chatter Time: ≤5ms
Insulation Resistance: >100MΩ 250V(DC) Operating Temperature: -20°C - +80°C
Size: 130mm*40mm Thickness: 0.3mm
High Light:

push button membrane switch

,

custom membrane switches



With flat tactile metal dome membrane switch / ZS43 / printing 3 colors



on the surface and adhesive 3M467





Company Introduction



Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing



Zhongshan Membrane Switch is a professional membrane switch manufacturer in



China. Our professional operation can ensure you of quality products supported by



mechanical, electronic and control automation. Based on our good abilities in



technology and production workmanship, our products are strictly checked by our



quality supervision department. For your added assurance, our plants are ISO



9001:2000-certified and our products are compliant with the RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced



equipment to manufacture up to 6 million pieces monthly. We are serving



customers in Asia, the US, Europe, Australia and other areas worldwide.

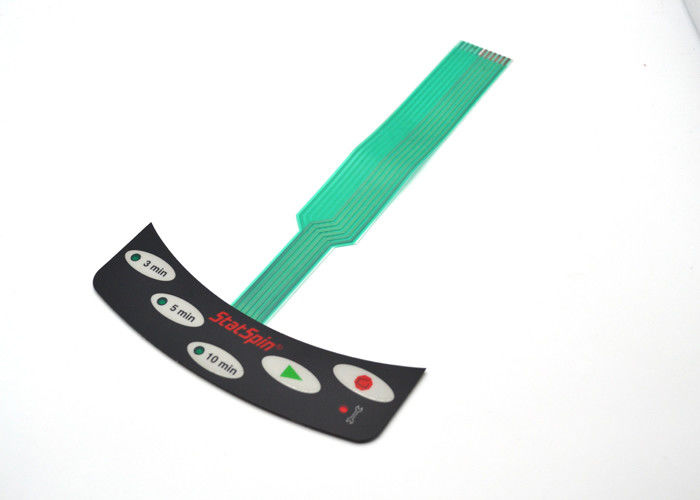

Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO 0





Backing show:

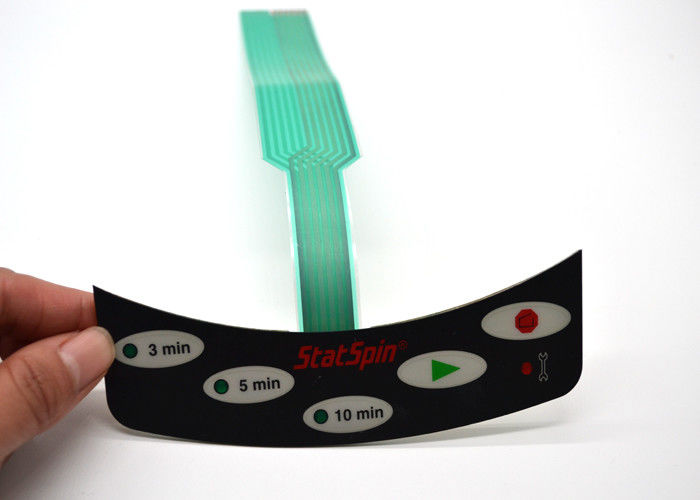

Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO 1

Tactile Flat Metal Dome Membrane Switch , Membrane Type Keyboard ROHS ISO 2







Membrane Swith  Description







Electrical Performance





Circuit Grade



35V(DC),100mA,1 W



Loop Resistance



10Ω - 500Ω(According the trace length and materials to

confirm)



Insulation Resistance



>100MΩ 250V(DC)



Dielectric Resistance



250VRms(50 - 60Hz/1 min)
Contact Chatter Time



≤5ms



Service Life



flat type≥5 million times





tactile type:≥1 million times





Mechanical Properties



Operating Force



flat type 57-284g (2-10 Oz)





tactile type 170-397g (6-14 Oz)



Switch Stroke



flat type 0.1 - 0.5mm





tactile type 0.6 - 1.5mm





Environmental Parameters



Operating Temperature



-20°C - +80°C



Storage Temperature



-40°C - +85°C
