| Place of Origin: | Jiangsu (China mainland) |
| Brand Name: | Zhongshan Membrane switch |
| Certification: | ROHS ISO9001,2000 |
| Model Number: | ZS-44 |
| Minimum Order Quantity: | 100pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirement |
| Delivery Time: | within one week after payment |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment after air transportation |
| Supply Ability: | 50000pieces per week |
| Material: | PET(polyester),PC(polycarbonate) | Color: | Pantone And RALcolor Matching System. |
|---|---|---|---|
| Connector Tail: | Zero Insertion Force(ZIF) With 0.5MM ,1.0MM,1.25MM Pitch | Circuitry Option: | Silver Printed Conductive Inks |
| Shielding: | For Protection Function | Surface: | Glossy Surface |
| Rear Adhesive: | 3M467 | ||
| High Light: | sealed membrane keypad,flat membrane switch |
||

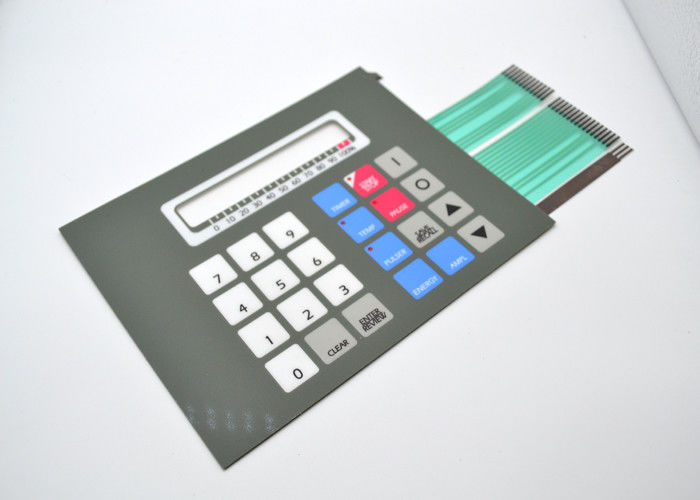

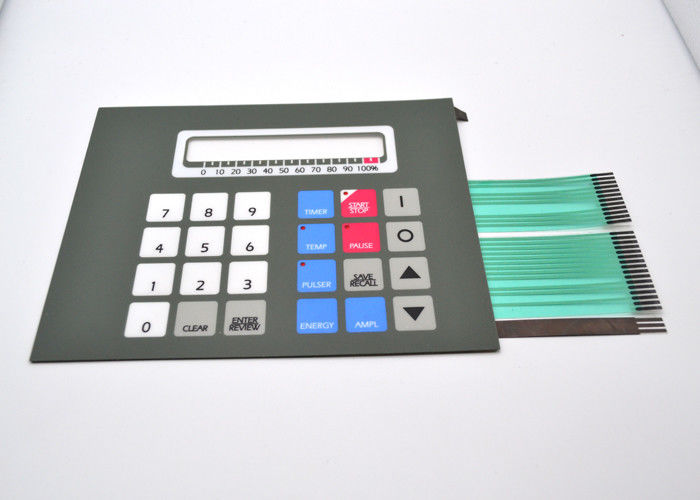

Embossed tactile membrane switch / ZS-44 with shielding circuit for
protection function and a clear window.
Features
| 1 | Material |
PET(polyester),PC(polycarbonate)
|
| 2 | Components: |
LED, metal dome, connector and circuit, all these can be designed and
made according to customer requirements.
|
| 3 | Dimension |
According to customer's demand,
|
| 4 |
Artwork Format |
CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF
|
| 5 | Color |
Pantone and RALcolor matching system.
|
| 6 | Embossing |
raises the surface of graphic overlay to emphasize the active key
area,upper circuit can be embossed to insert metal domes
|
|
Embossed type: Pillow emboss, Dome emboss, Frame emboss
|
||
| 7 | Keys Options |
For a tactile response and indicate the location of switches
|
|
1. Tactile Keys: metal domes or poly domes
|
||
|
2. Non-tactile keys: flat button, printed silver spot on the circuit,
|
||
| 8 | Cables |
i s extension of circuit and communication with your device
|
| 9 | Circuitry option |
1. Silver printed conductive inks
|
|
2. Copper etched circuit /Polyimide Kapton circuit ( FPC)
|
||
|
3.PCB circcuit board
|
||
| 10 | Connector Tail |
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
|
|
2. Female connector with 2.54MM pitch;
|
||
|
3 .Male connector ;
|
||
|
4.Solder Pins
|
||
| 11 | Shielding |
For protection function
|
| 12 | Printing |
screen printing
|
| 13 | Window |
with clear or transparent window
|
| 14 | Surface |
glossy surface or matte surface
|

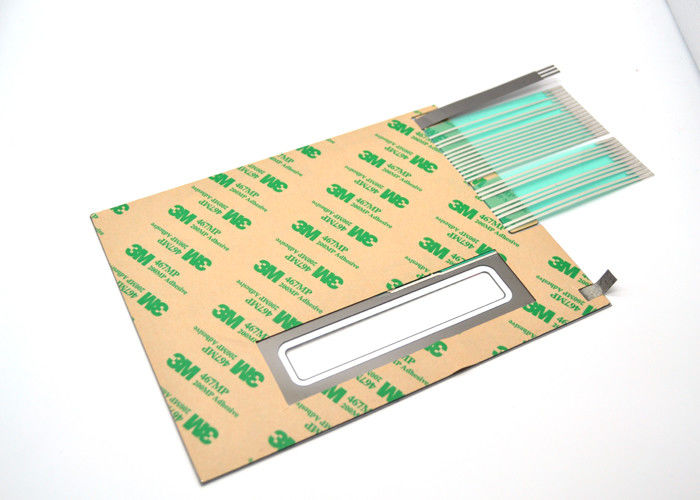

| 15 | Rear Adhesive |
3M467,3M468,3M9080 ect |

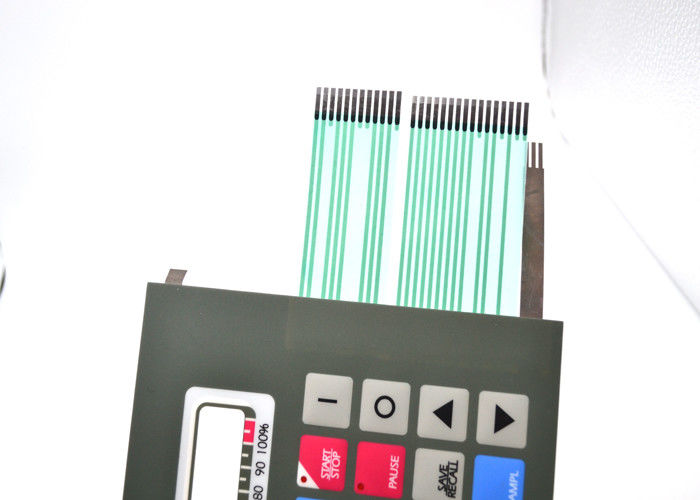

Sheilding circuit part show:
Quality Assurance
With our attitude of precision and perfection, products are 100% quality tested and monitored
carefully prior toshipment.State-of-the-art testing equipment.Efficient assembly and packing
lines ISO 9001:2000 certified.All products compliant with RoHS and other regulations strict
assembly, reliability and functional tests to ensure the total and effective quality control.
