LED Embossed Tactile FPC Membrane Switch Keypad Moisture Proof 0.3mm Thick

membrane type keyboard

flexible membrane switch

Place of Origin:

Jiangsu (China mainland)

Brand Name:

Zhongshan membrane switch

Certification:

ROHS ISO9001,2000

Model Number:

ZS-54

Request A Quote

LED Embossed Tactile FPC Membrane Switch Keypad Moisture Proof 0.3mm Thick

Product Details

Window:

A Red Transparancywindow

Surface:

LED

Thickness:

0.3mm

Color:

Grey Blue

Connector::

1.54mm Circuit

Real Adhesive:

3M467

Highlight:

membrane type keyboard

flexible membrane switch

Payment & Shipping Terms

Minimum Order Quantity

100 pieces

Price

negotiation

Packaging Details

Plastic bags with carton boxes or due to detail customer requirement

Payment Terms

30% deposit, the 70% balance after shipment or full payment after air transporation

Supply Ability

50000 pieces per week

Tactile FPC Membrane Switch Keypad With Clear Window 3M467 Real Adhesive

Get Best Price

Embossed Metal Dome FPC Membrane Switch With Protective Film On Surface

Get Best Price

Professional FPC Membrane Keyboard Switch With LED Display On Surface

Get Best Price

Embossed Tactile Membrane Switch With FPC Metal Dome For Electronic Video Player

Get Best Price

Contact Now

Product Description

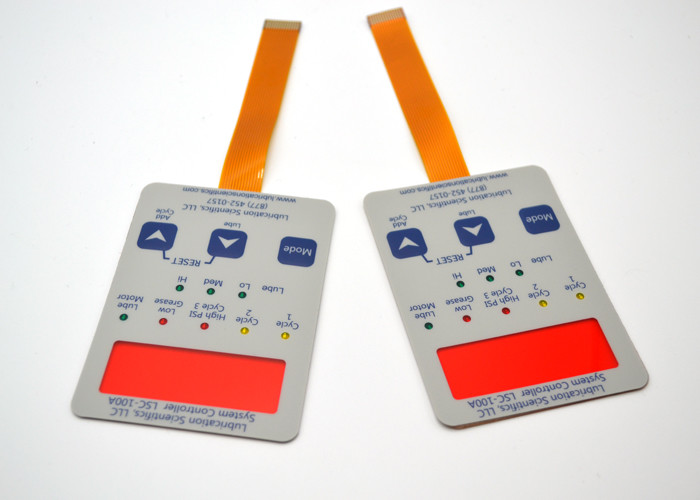

A red transparency window and LED embossed tactile membrane switch

with a FPC circuit connector

A membrane switch is a printed electronic circuit that uses pressure to open and close a

circuit.

The membrane switch circuitry is most often screen printed using conductive inks, which are

typically made of silver, carbon, and/or graphite.Membrane switches are part of a range of

devices considered to be user interfaces (also called operator interfaces, or man-machine

interfaces) along with display-based touch screens, and mechanical switches such as push-

button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to

serve as the interface between man and machine, enabling an operator to communicate with

a piece of equipment, instrument, or machinery.

pls see the following show:

LED Embossed Tactile FPC Membrane Switch Keypad Moisture Proof 0.3mm Thick 0

Flowing chart:

Let our engineer teams help you assess your membrane switch design options. we will tailor

your membrane switch and graphic overlay to fit the application and your specifications

LED Embossed Tactile FPC Membrane Switch Keypad Moisture Proof 0.3mm Thick 3

Membrane Switch Parameter:

Certification	ISO9001, 2000 & ROHS.
Components:	LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
