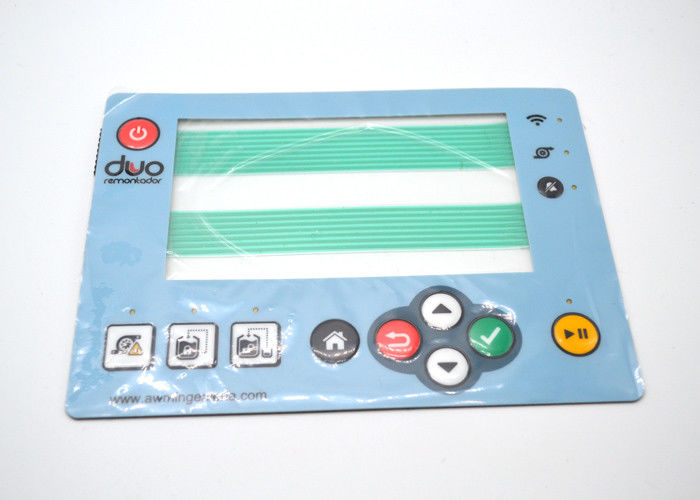

Name: Waterproof Tactile Membrane Switch With Clear Display Window And Two Connector Tails
Brand: Nanjing Zhongshan Membrane Switch Co., Ltd.
SKU: ZS-69
Price: 2.50 USD
Availability: InStock

Home > products > Tactile Membrane Switch >

Waterproof Tactile Membrane Switch With Clear Display Window And Two Connector Tails

tactile membrane keyboard

tactile push button switch

Place of Origin:

Jiangsu (China mainland)

Brand Name:

Zhongshan

Certification:

ROHS ISO9001,2000

Model Number:

ZS-69

Request A Quote

Waterproof Tactile Membrane Switch With Clear Display Window And Two Connector Tails

Product Details

Connector Tail:

1.5mm And 2.0mm

Material:

Pet

Operating Temperature:

-20°C - +80°C

Insulation Resistance:

>100MΩ 250V(DC)

Diemension:

180mm*130mm

Thickness:

0.3mm

Highlight:

tactile membrane keyboard

tactile push button switch

Payment & Shipping Terms

Minimum Order Quantity

100

Price

negotiation

Packaging Details

Seal plastic bags with carton boxes or due to customer detail requirements

Delivery Time

within one week after receiving order payments

Payment Terms

30% deposit, 70% balance after shipment or full payment after air transportation

Supply Ability

50000 pieces per week

Square Embossed Tactile Membrane Switch Scratch Resistant

Get Best Price

ISO9001 Embossed Button 0.2mm Keyboard Membrane Switch

Get Best Price

Medical Instruments 0.3mm Tactile Membrane Switch

Get Best Price

Multi Keys Embossed Tactile Membrane Switch , Keyboard Membrane Switch 0.2mm

Get Best Price

Contact Now

Product Description

Embossed tactile membrane switch / ZS-69 / with a clear display

window and two connector tails

We strive to bring you the best value on your Standard Membrane Switches needs.

- Rail and Pillow Emboss

- Poly-Dome Membrane Keypads

- Stainless Steel Tactile Domes

- Clear and Tinted See-Through Windows

- Selective UV Texture

What are Standard Membrane Switches ?

The easiest way to understand what a membrane switch is, is to reference an all-time favorite

device-the microwave. The membrane switch on the microwave is the buttons—the human

interface layer—that communicates to the microwave that you’d like to reheat your food for

one minute.

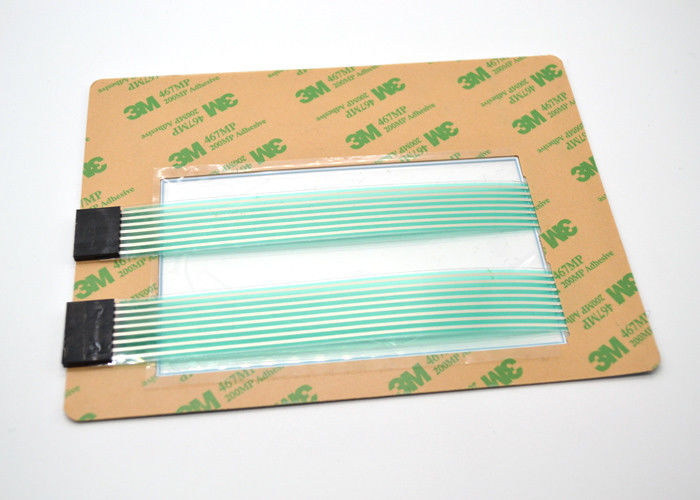

Waterproof Tactile Membrane Switch With Clear Display Window And Two Connector Tails 0

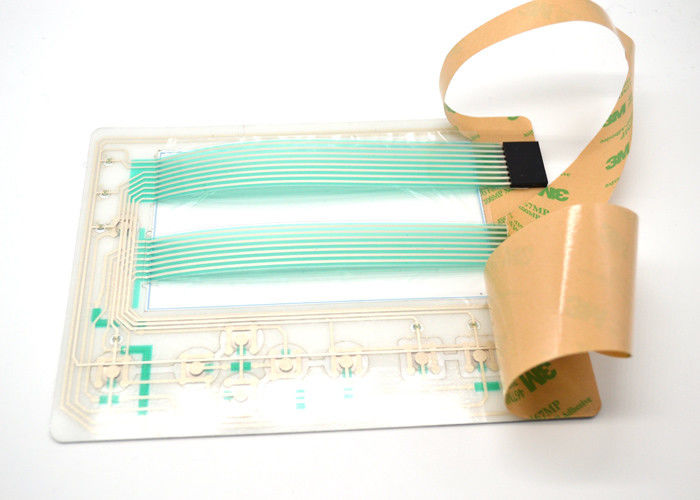

Waterproof Tactile Membrane Switch With Clear Display Window And Two Connector Tails 1

Membrane Swith Description

Electrical Performance

Circuit Grade

35V(DC),100mA,1 W

Loop Resistance

10Ω - 500Ω(According the trace length and materials to

confirm)

Insulation Resistance

>100MΩ 250V(DC)

Dielectric Resistance

250VRms(50 - 60Hz/1 min)

Contact Chatter Time

≤5ms

Service Life

flat type≥5 million times

tactile type:≥1 million times

Mechanical Properties

Operating Force

flat type 57-284g (2-10 Oz)

tactile type 170-397g (6-14 Oz)

Switch Stroke

flat type 0.1 - 0.5mm

tactile type 0.6 - 1.5mm

Environmental Parameters

Operating Temperature

-20°C - +80°C

Storage Temperature

-40°C - +85°C
