Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows

Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows

  • Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows
  • Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows
  • Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows
Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows
Product Details:
Place of Origin: Jiangsu(Chian mainland))
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-71
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payments
Payment Terms: 30% deposit, the 70% balance after shipments or full payment after air transportation
Supply Ability: 50000 pieces per fweek
Contact Now
Detailed Product Description
Current Contact: < 100 Ohms Surface: Flat And Tactile
Function: Shelding Power Shielding: For Protection Function
Circuitry Option: Silver Printed Conductive Inks Thickness: 0.3mm
High Light:

sealed membrane keypad

,

flat membrane switch

Two black transparency windows and flat tactile metal dome membrane

switch / ZS-71 / With a 1.54mm connector tail


This a membrane switch with protecting cable inside it, ususlly it is used for Medical

instruments at hosipital. a complex production process using on it manly export to America.

Let seeing the following product type show:


Specifications


Shielding flat tactile trasparency window Membrane Switch
1. flat tactile
2. long serve life
3, PET Silver
4. shieling circuit


Quality Assurance


With our attitude of precision and perfection, products are 100% quality tested and monitored

carefully prior toshipment.State-of-the-art testing equipment.Efficient assembly and packing

lines ISO 9001:2000 certified.All products compliant with RoHS and other regulations strict

assembly, reliability and functional tests to ensure the total and effective quality control.



Electrical Performances


Wire Resistance


0.5mm width,<1Ω/cmRated Current25-100mA,0-30V DC


Insulation Resistance


>100MΩ 250V DCWorking Voltage<50V DC


Non-tactile Switch


0.1-0.4mmTactile Switch0.4-1.0mm


Working Life


Working LifeWorking Temperature-40℃ ~ 70℃


Working Humidity



40℃,98%RH No influenceSubstrate Voltage1500V DC


Feedback Time


10msTail FoldingR>1,180





Technology


Operating voltage: 35V DC

Operating current: 100mA 1W

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V


Operating temperature: Flat/Metal dome:-20°c to +80°c


Storage temperature: Flat/Metal dome:-40°cto +80°c


Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

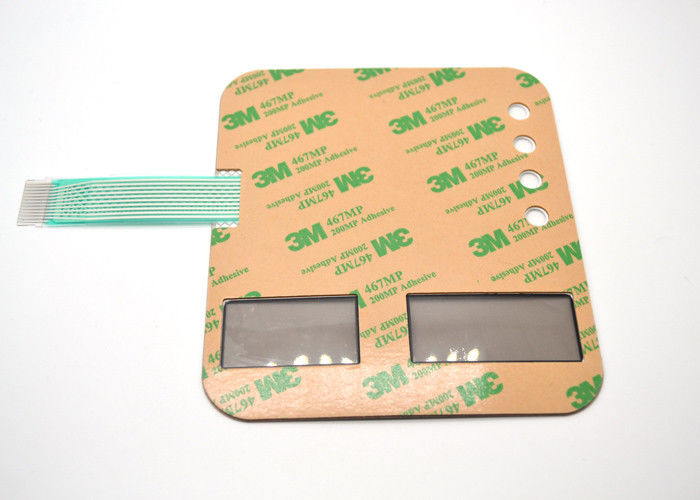

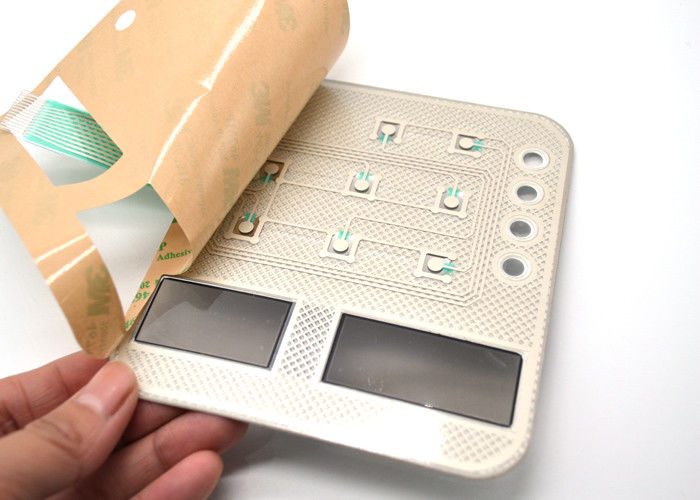

Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows 0Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows 1



Packaging & Delivery


Packaging: PE bag, Carton.

Delivery Detail: two weeks after order confirmation


Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows 2Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows 3Tactile Metal Dome Flat Membrane Keyboard With Two Black Transparency Windows 4
