| Place of Origin: | Jiangsu(Chia mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-72 |
| Minimum Order Quantity: | 100pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payment |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment after air transportaion |
| Supply Ability: | 50000 pieces per week |
| Material Of Overlay: | PET | Diemension: | 160*105mm |
|---|---|---|---|
| Application: | Remote Controller | Type: | Metal Dome Switch |
| Thickness: | 0.3mm | Suface: | Matte |
| High Light: | push button membrane switch,custom membrane switches |
||

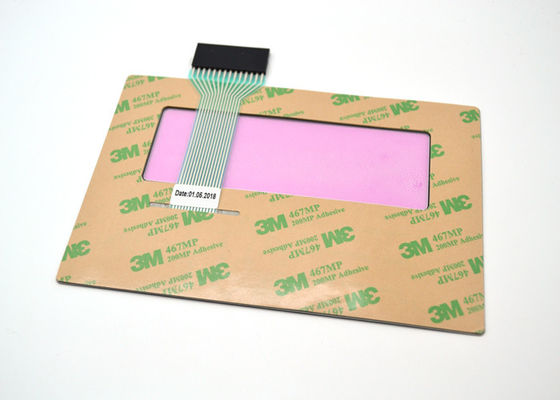

Embossed tactile membrane switch with a pink colored transparent
display / ZS-72 / with customer logo on the sufrace
Technical Specification
| Environmental | Operating Temperature | -20° to 65° C (-4° to 149° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) | |
| Seals | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
|
Special sealing options are available for wet environments. |
||
| Mechanical | Travel | .007 inches to .015 inches |
| Operating Force | 4oz to 8oz | |
| Electrical | Operating Voltage | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |
| Circuitry | X-Y matrix or one side common | |
1. Quotaion: We can do OEM for you and welcome to send us your enquiries at any time. We
will reply you in 24 hours.
2. Artwork: After price confirmation, we will prepare to do artwork of the product for your
approval in 3 days.
3. Sample: Once you approve the artwork, then we will arrange to produce samples.
4. Production: After sample confirmation, it will take two weeks to finish order(sooner or
longer depneding on the order quanity).
5. Shipping: We can send products by Fed-ex, UPS, DHL, TNT or other shipping agent you
recommand and then will send you tracking number for your reference.
6. After-sale: Please let us know if any problems you meet with our product and we will
investigate to find the root cause or supoort you to solve it.
Application:
Medical equipment, Telecommunications apparatus, Household appliance, Industrial controls,
etc.We can be customized according to customer requirements
Packaging & Delivery
packaging details: inside,shockproof package, PE bag
outside,thickened carton, water-proof
delivery details: express,2-4 working days
air freight,5-7 working days
sea freight,25 working days
