Glossy Surface Tactile Membrane Switch Panel For Medical Instruments Light Weight

Glossy Surface Tactile Membrane Switch Panel For Medical Instruments Light Weight

membrane touch switch

tactile membrane keyboard

Place of Origin:

Jiangsu(China mainland)

Brand Name:

Zhongshan

Certification:

ROHSISO9001,2000

Model Number:

ZS-76

Contact Us
Request A Quote
Product Details
Operating Voltage:
30 Volts Maximum
Open Circuit Resistance:
10 Megohms
Operating Temperature:
-20° To 65° C (-4° To 149° F)
Application:
Medical Instruments
Surface:
Glossy Tactile
Current Contact:
2-24V
Highlight:

membrane touch switch

,

tactile membrane keyboard

Payment & Shipping Terms
Minimum Order Quantity
100 pieces
Price
negotiation
Packaging Details
Seal plastic bags with carton boxes or due to customer detail rrequirements
Delivery Time
within one week after receiving order payments
Payment Terms
30% deposit, the 70% balance after shipment or full before air transportation
Supply Ability
50000 pieces per week
Product Description

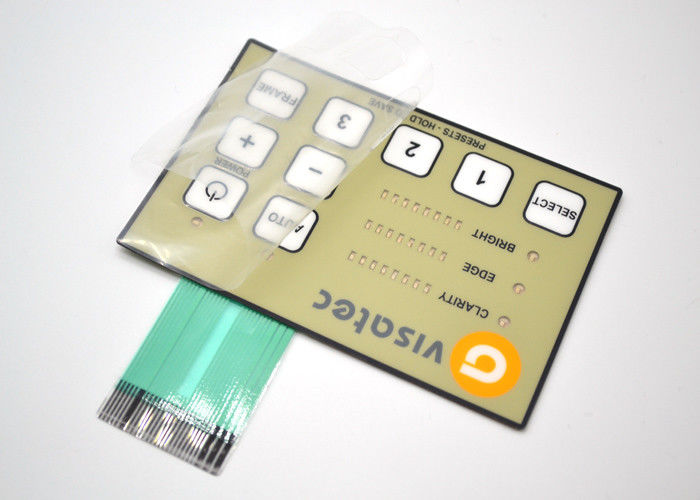

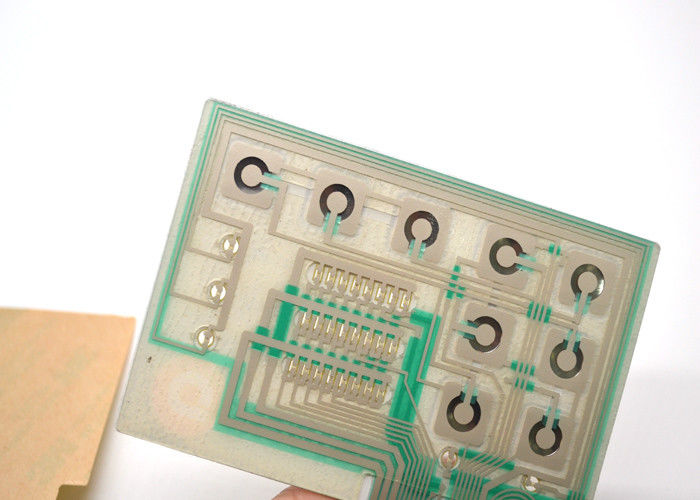

Embossed tactile metal dome membrane switch / ZS-76 / printing 4

colors on the overlay with customer LOGO



Technical Specification


Environmental Operating Temperature -20° to 65° C (-4° to 149° F)
Storage Temperature -40° to 85° C (-40° to 185° F)

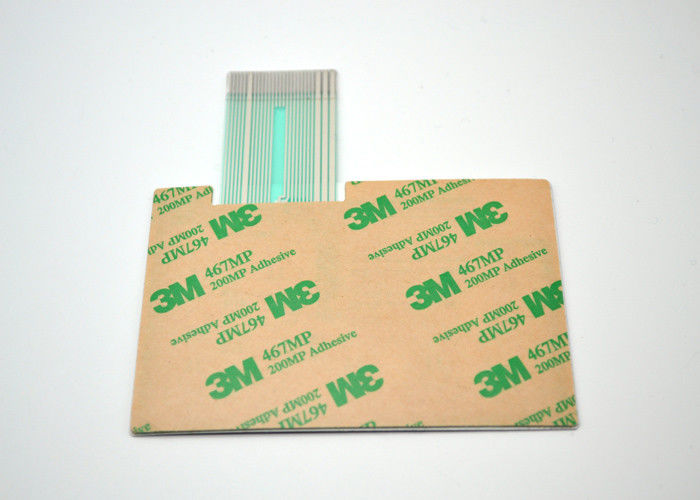

Seals 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.

Special sealing options are available for wet environments.


Mechanical Travel .007 inches to .015 inches
Operating Force 4oz to 8oz
Electrical Operating Voltage 30 volts maximum
Operating Current 10 microamps to 100 milliamps, resistive
Closed Circuit Resistance 100 ohms typical, dependent on size and layout
Open Circuit Resistance 10 megohms
Operating Power 1 watt maximum
Circuitry X-Y matrix or one side common
