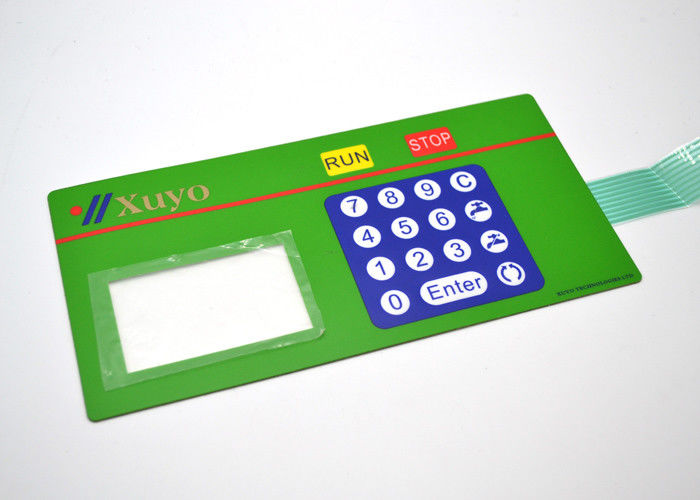

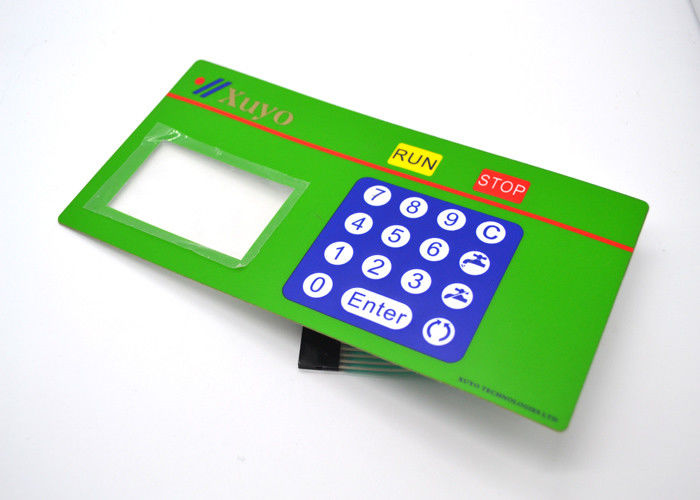

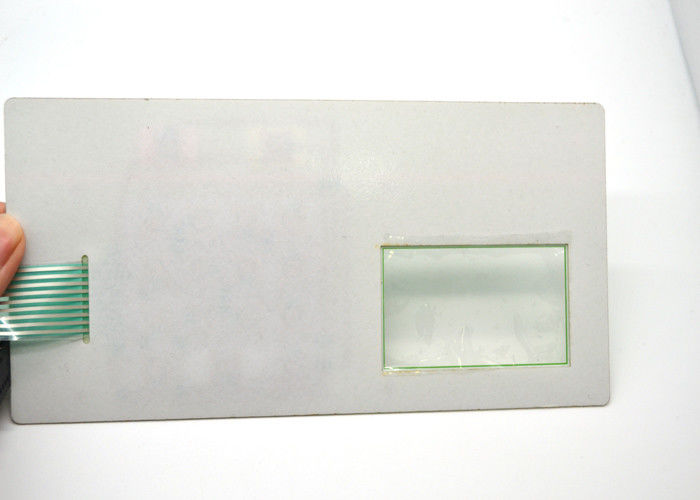

PET Material Embossed Membrane Keypad Electrical Switch For Running Machine

PET Material Embossed Membrane Keypad Electrical Switch For Running Machine

  • PET Material Embossed Membrane Keypad Electrical Switch For Running Machine
  • PET Material Embossed Membrane Keypad Electrical Switch For Running Machine
  • PET Material Embossed Membrane Keypad Electrical Switch For Running Machine
PET Material Embossed Membrane Keypad Electrical Switch For Running Machine
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-104
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Brand Name: Zhongshan Connector: 2.44mm Connector Tail
Surface: Glossy And Embossed Type: Metal Dome Membrane Switch
Color: Green, Blue, White And Red Yellow Thickness: 0.3mm
High Light:

membrane switch keypad

,

membrane switch panel

Professional manufacturer pet material embossed switch membrane

keypad / ZS-104 / application for Running Machine


Product information



1, application


Running machine


2, working current:


≤ 100mA


3, Contact resistance:


0.5 ~ 5Ω


4, Thickness


≥ 0.1mm


5.Spring Time


≤ 6ms



6.Switch Stroke



Flat 0.1~0.5mm
Tactile 0.6~1.5mm


7.Operation Force



Flat 57g~286g
Tactile 170g~398g



8.Life expectancy



Flat 500Million-1000Million
Tactle 100million



Product features:

1. Reliable structure and light weight.

2. Smarting apparence.

3. long service life

4. Dampproof, dustproof

5. durable, seismic, lead wire resistance around thefracture well


Membrane Switch Advantages:

1. Smartingl appearance ,rich and bright in color.

2. Small size ,light weight ,good tactility.

3. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested.
.
6. Customized specification is available and keys can make different shapes.
